152
Configuring via the Web
-
Based Management System (WBM)
WAGO-
I/O
-
SYSTEM 750
750
-
882
Media Redundancy ETHERNET Controller
Manual
1.5.0
10.1
Information
The WBM page “Information” contains an overview of all important information
about your fieldbus coupler/controller.

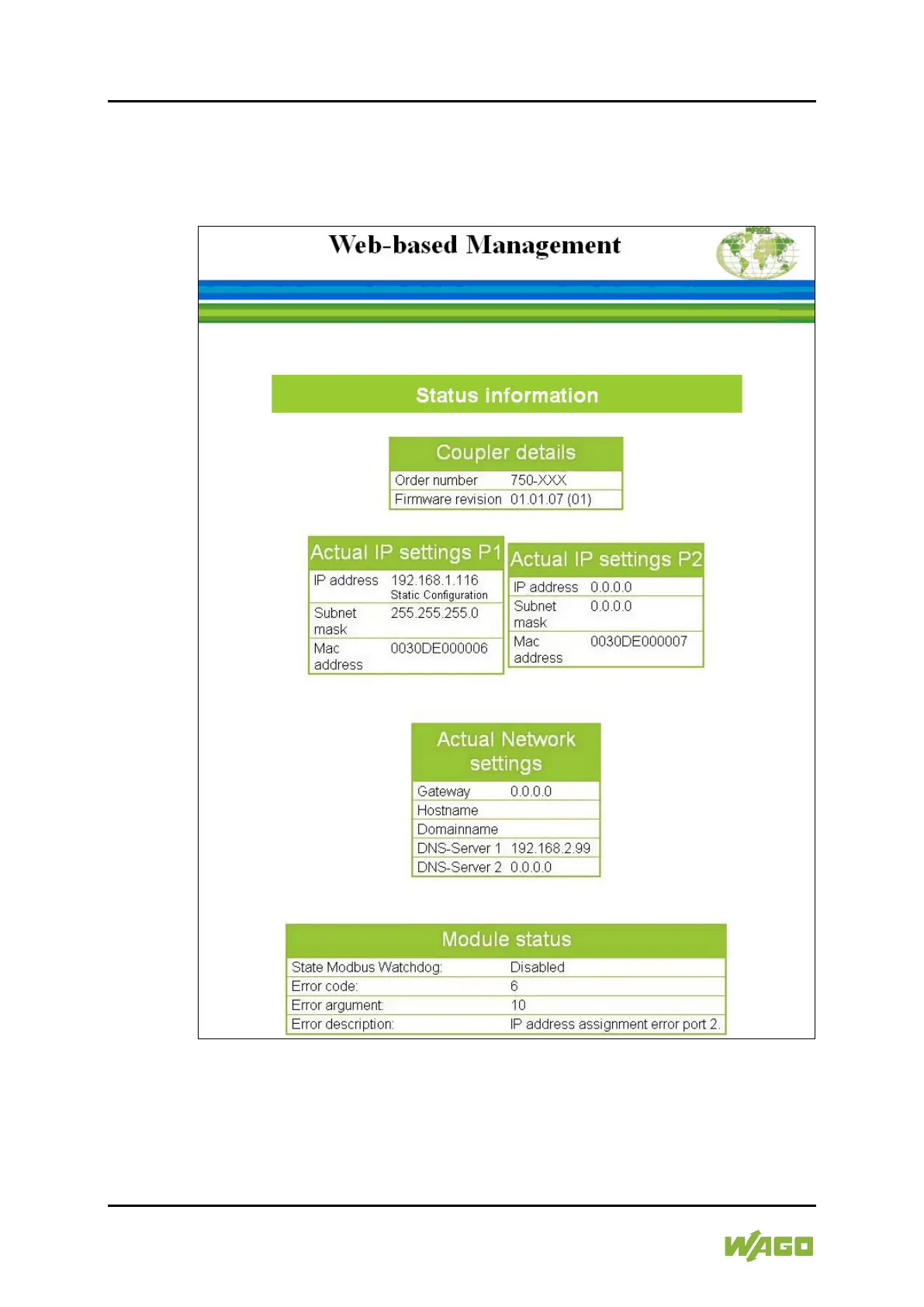

Figure
59
: WBM page "I
nformation
"
151
153
