162
Configuring via the Web
-
Based Management System (WBM)
WAGO-
I/O
-
SYSTEM 750
750
-
882
Media Redundancy ETHERNET Controller
Manual
1.5.0
10.5
Port

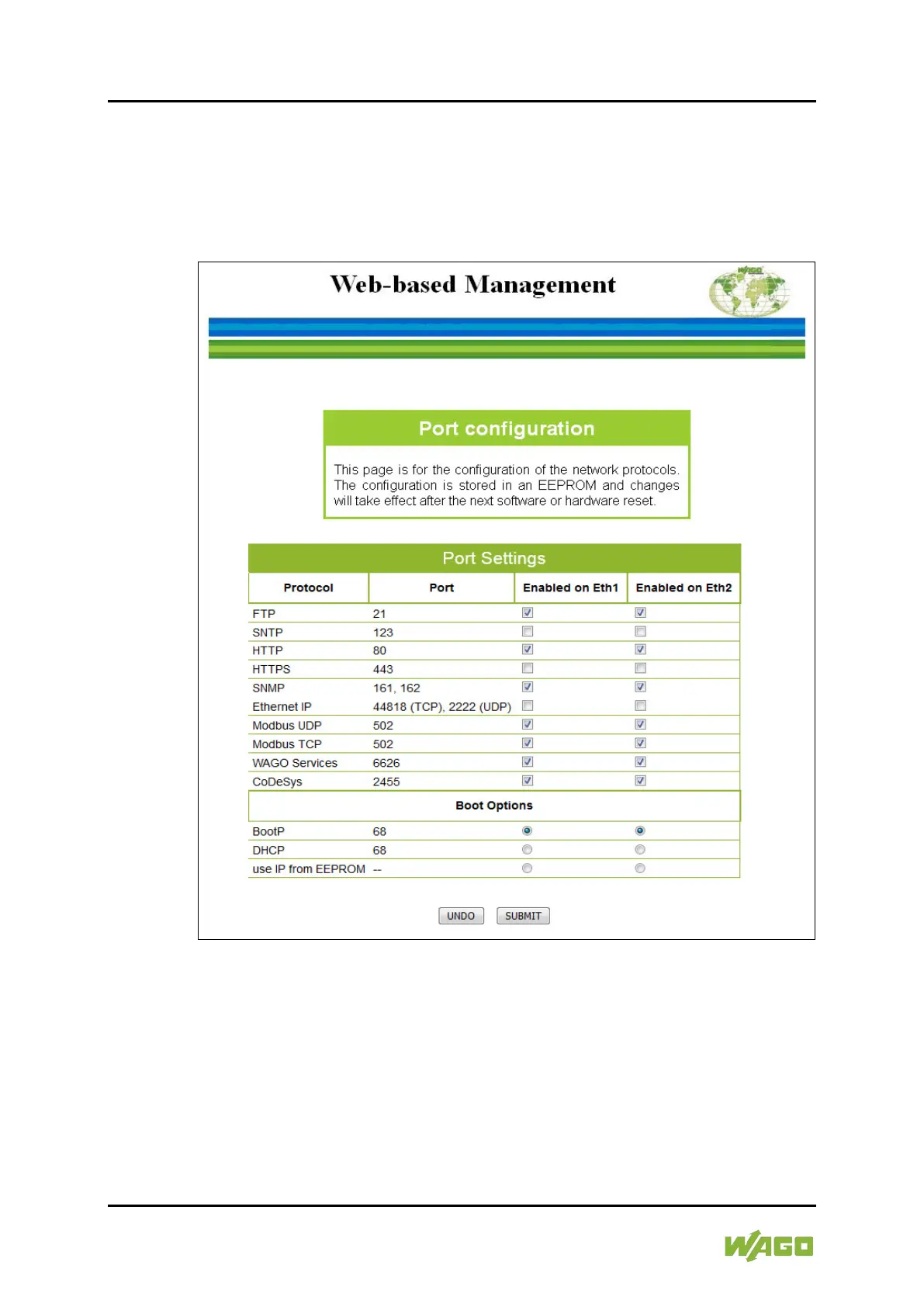

Use the “Port” WBM page to enable or disable services available via the IP
protocol.
Figure
63
: WBM page „P
ort“
161
163
