Waters 2545 Binary Gradient Module User Manual

2-2 Preparing for operation
Powering on
When you have completed all electrical, plumbing, and signal connections, you
are ready to power on the 2545 Binary Gradient Module.
To power on the binary gradient module, move the power switch (at the
upper-right corner of the front panel) to the I (On) position.
At startup, the binary gradient module runs through a series of diagnostic
tests that home each actuator, check instrument connections, and verify
signals from each transducer.

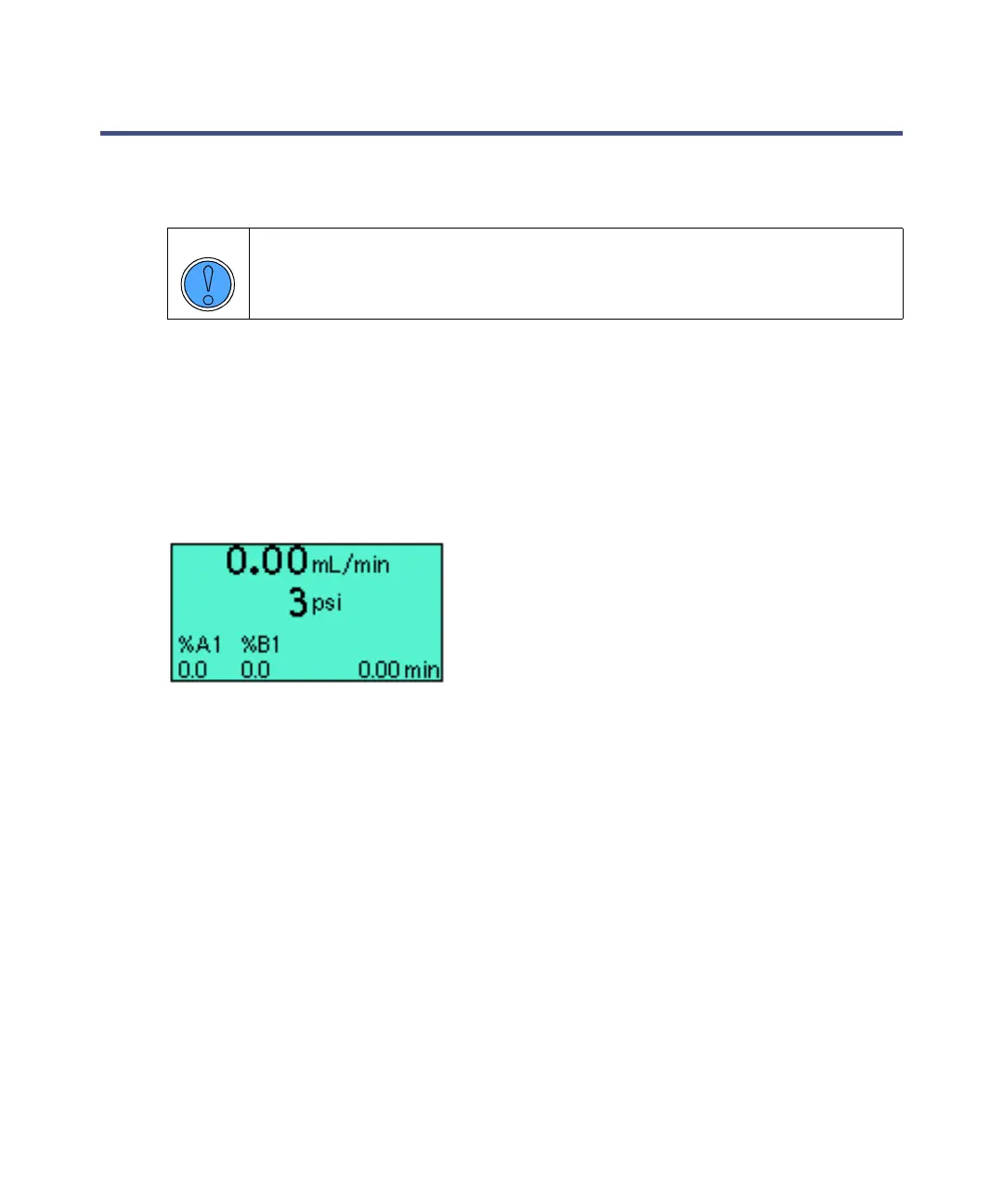

Example: Front panel of binary gradient module
If the system includes one or more 515 pumps, ensure that all electrical,
plumbing, and signal connections are complete, and then power on the 515
pumps.
See also: 515 HPLC Pump Operator’s Guide.
Caution: Do not power on the binary gradient module until you
have completed all electrical, plumbing, and signal connections.
!
