Waters 2545 Binary Gradient Module User Manual

Replacing the seals and O-ring 3-11

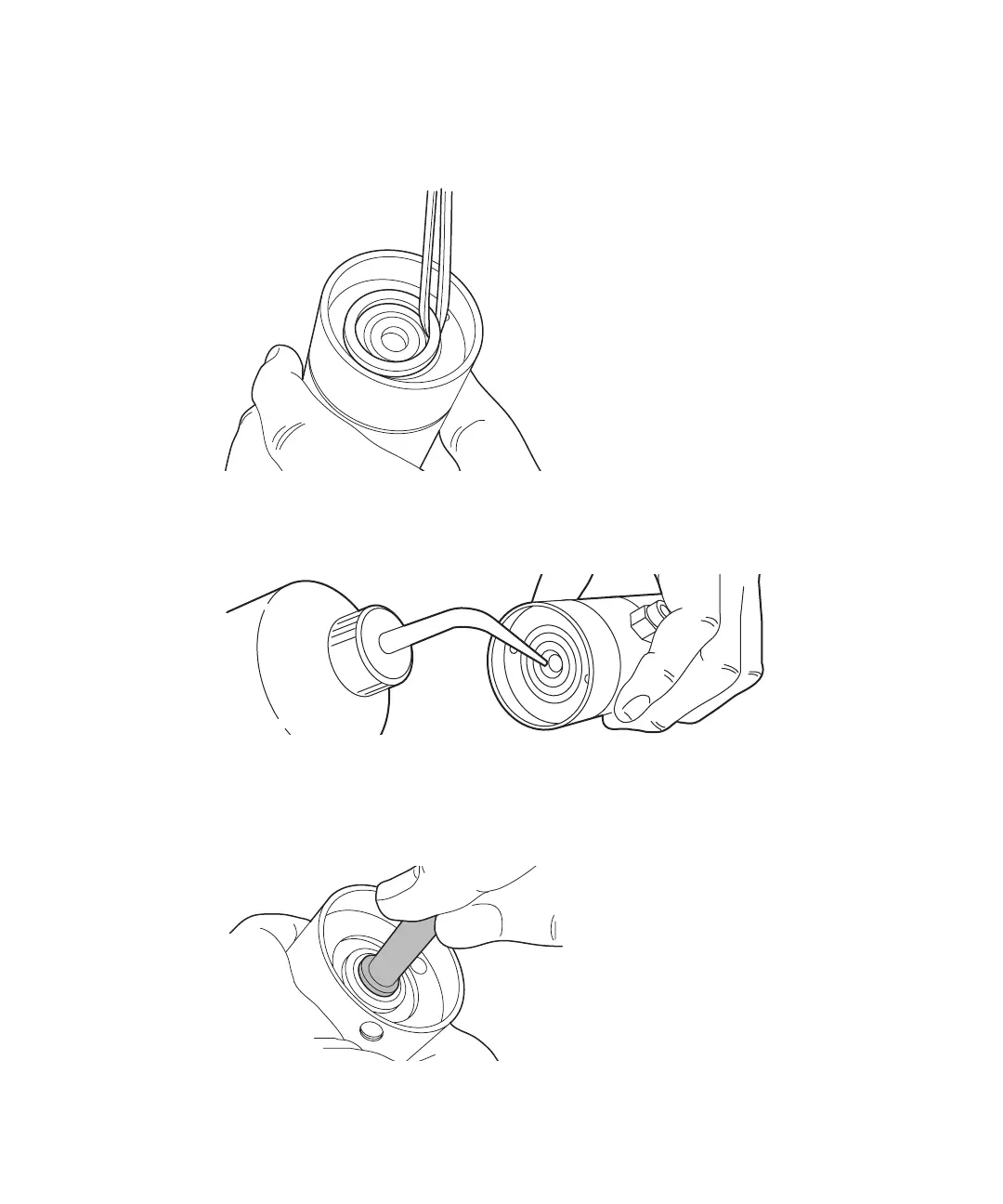

3. Remove the O-ring using plastic tweezers.
Removing the O-ring
4. Wet the seal cavity and new plunger seal with methanol.
Wetting the seal cavity and new plunger seal
5. Using the seal insertion/extraction tool, insert the new plunger seal into
the pump head.
Installing the plunger seal
