Waters 2545 Binary Gradient Module User Manual

Replacing the plunger 3-17

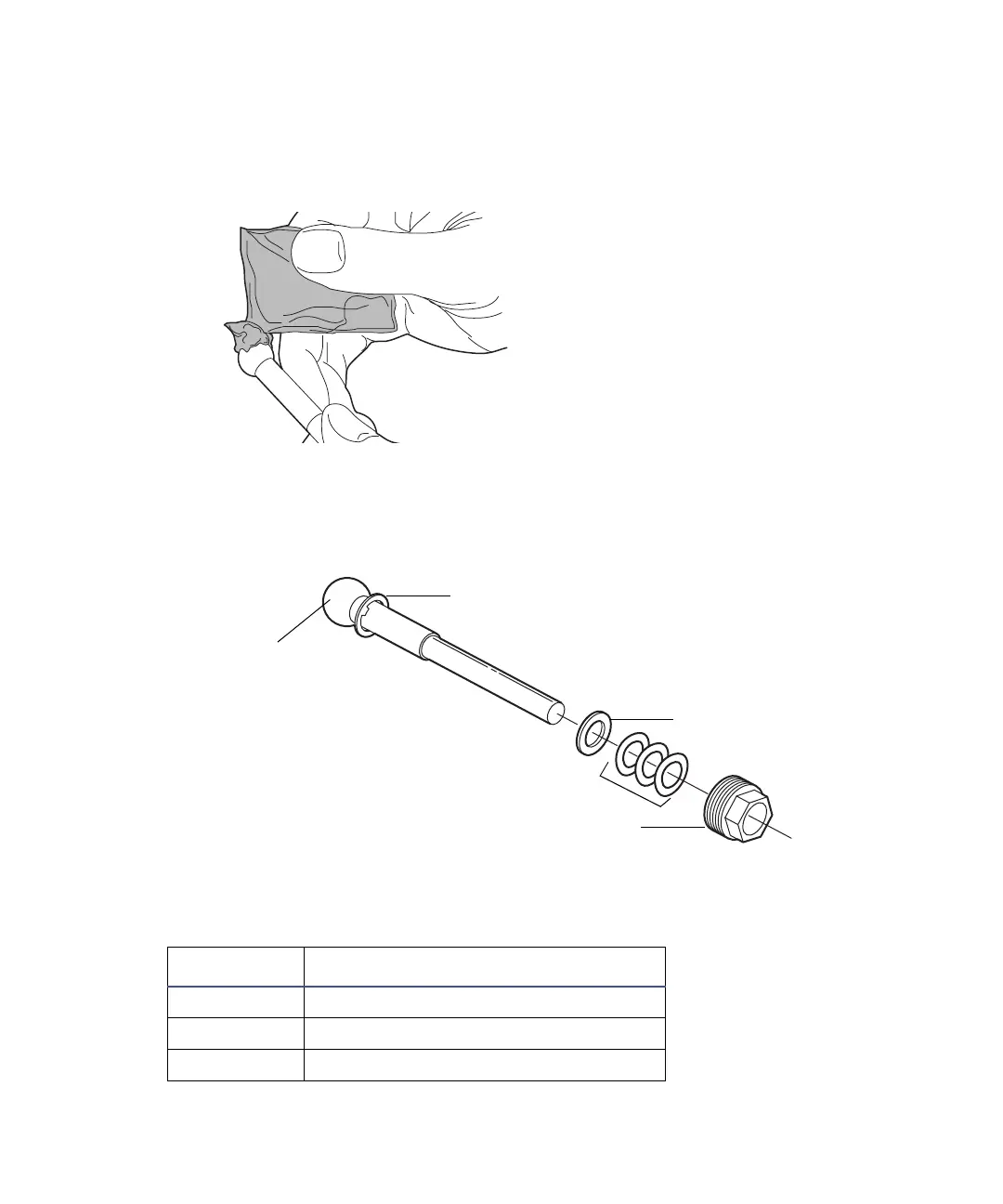

7. Using the grease pack supplied with the plunger, apply grease to the
ball-end of the new plunger.
Greasing the plunger
8. Install the e-clip, flat washer, and three wave washers in that order.
Make sure the wave washers are bowed toward the plunger tip.
Installing the e-clip and washers
Key
Number Name
1
E-clip
2 Plunger tip
3 Flat washer
3
4
1
2
5
