Waters 2545 Binary Gradient Module User Manual

3-30 Maintenance
7. In the Test Pressure text box, enter the pressure limit for which you will
test the pump.
8. Click Start Leak Test. The status of the leak test appears in the Test
Progress area. When the leak test is finished, the Test Results area
displays the results.

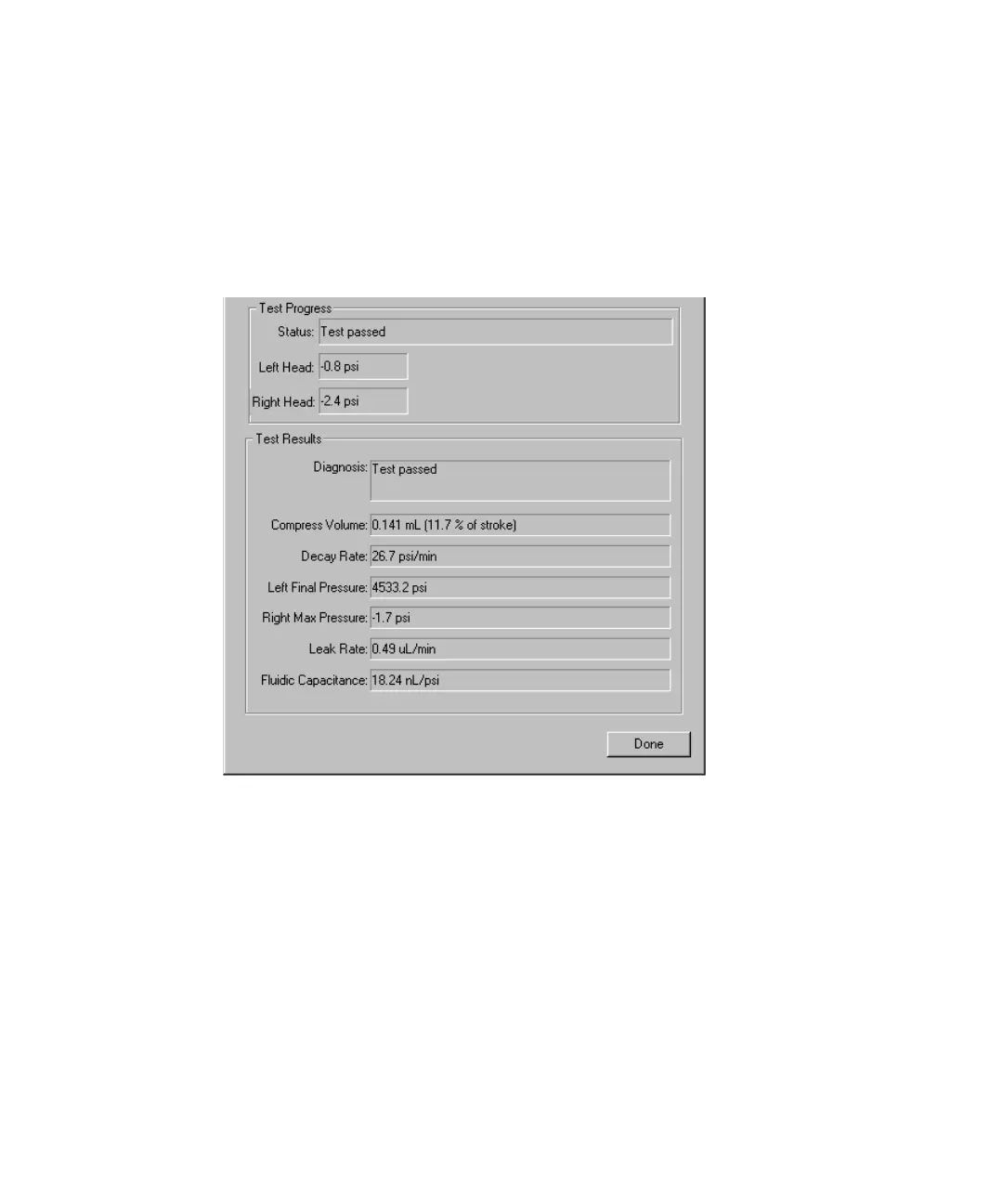

Typical leak test results
Results: The test pass criteria is a decay rate of 300 psi/min for each
head. This is a fairly stringent criterion based on the analytical flow rate
capability of the binary gradient module.
The other data that is displayed is for information only. If the leak test
fails the test criteria, messages in the Diagnosis area of the Test Results
section can help diagnose a leak.
