5-54 Maintenance Procedures

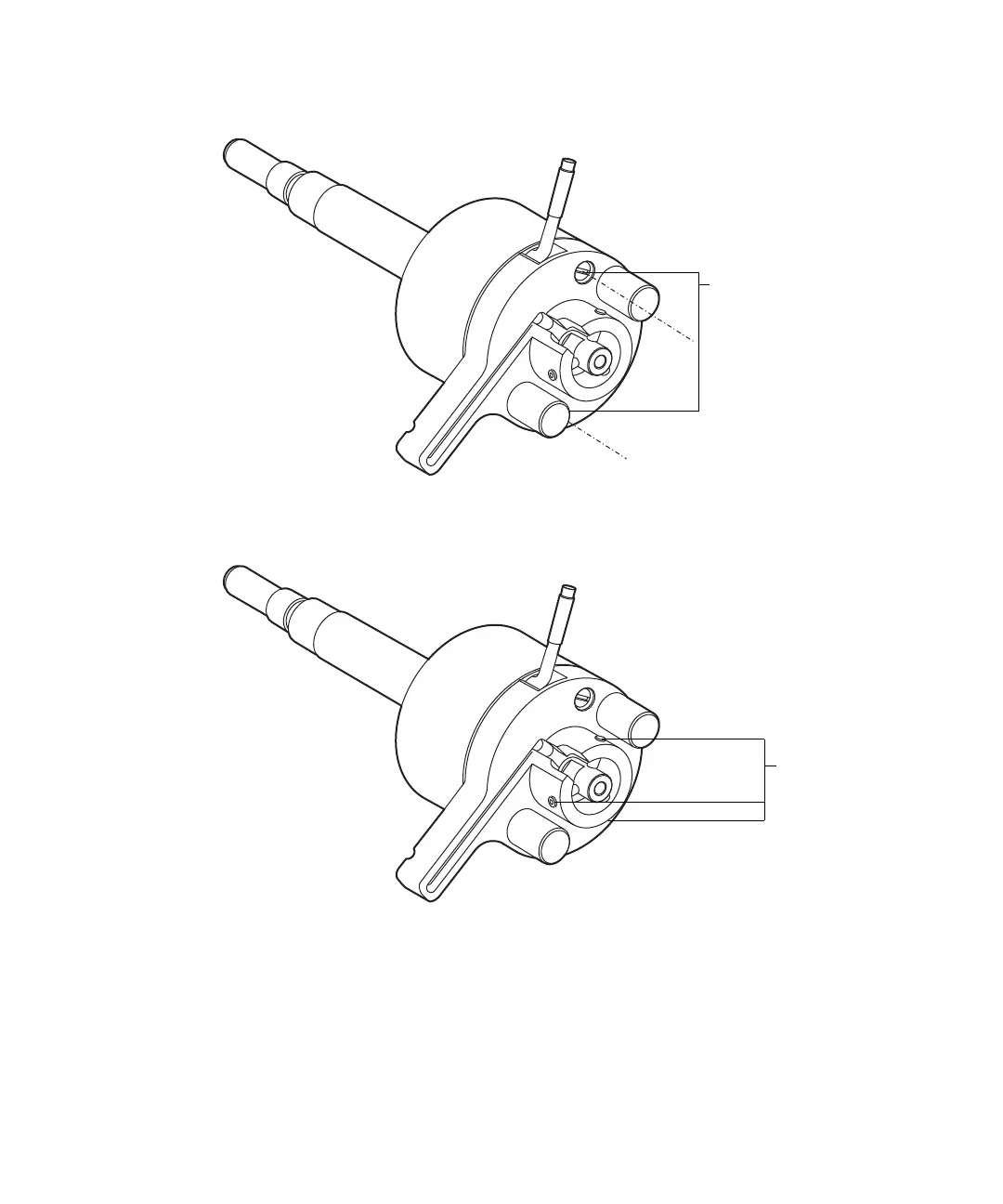

2. Use the screwdriver to remove the 2 probe end-cover retaining screws.

3. Use the 1.5-mm Allen wrench to loosen the 3 set screws on the LC PEEK

union.

2 retaining screws

3 set screws
