5-26 Maintenance Procedures
Assembling the cone gas assembly
Required material: Chemical-resistant, powder-free gloves
To assemble the cone gas assembly
1. Carefully fit the sample cone into the gas cone.
2. Fit a new O-ring into the groove created between the sample cone and
gas cone.
Caution:
• To avoid recontaminating the cone gas assembly, wear clean
chemical-resistant, powder-free gloves during this procedure.
• The sample cone is fragile. Never place it on its tip; always place it
on its flanged base.

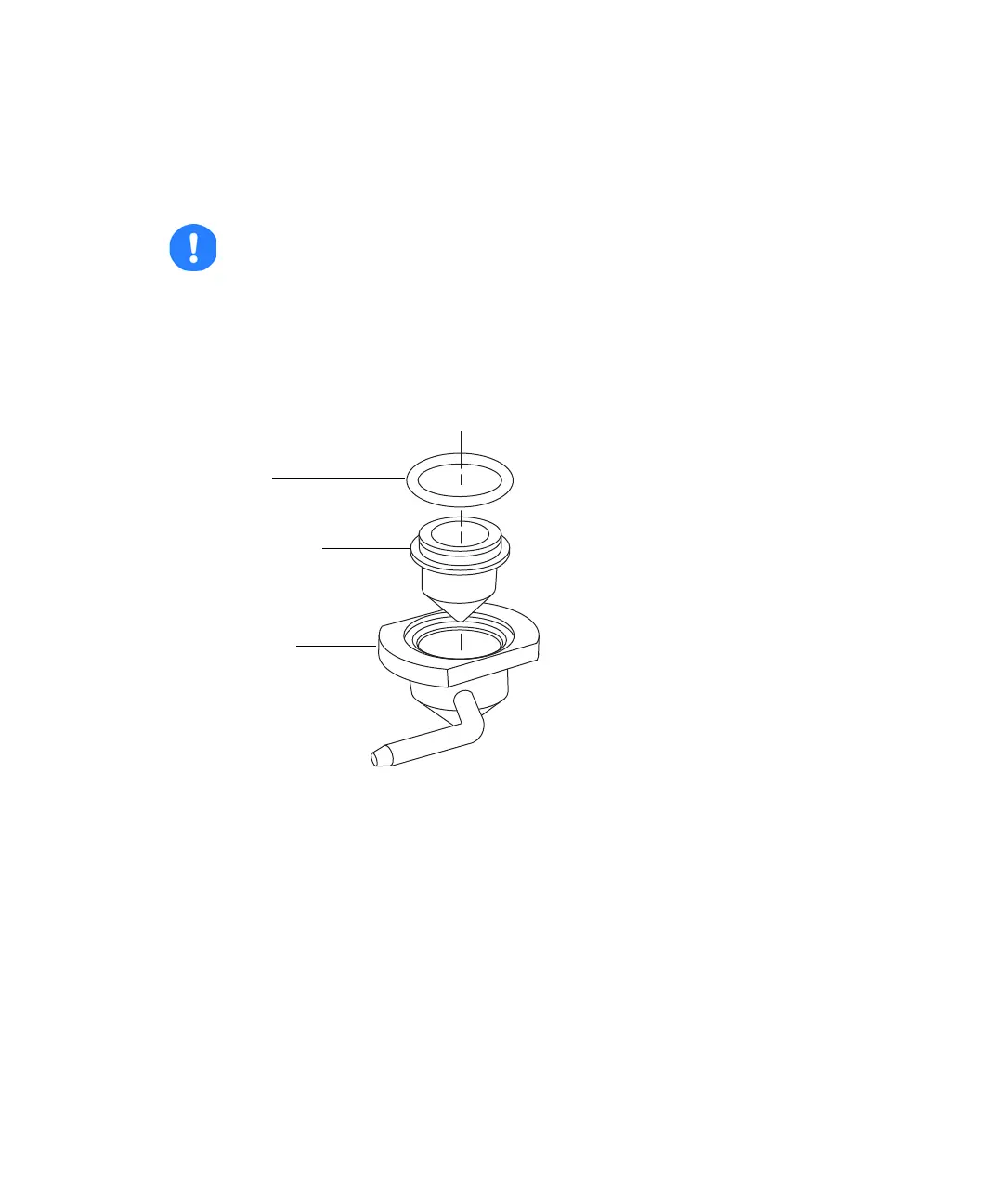

O-ring
Sample cone
Gas cone
To Next Page
