5-22 Maintenance Procedures
Disassembling the cone gas assembly
Required material: Chemical-resistant, powder-free gloves
To disassemble the cone gas assembly
1. Position the cone gas assembly inlet over the extraction tool on the
source enclosure door.
Alternative: Use the hand-held extraction tool supplied with the
instrument. This tool is used in a similar manner to that fitted to the
source enclosure door.
Warning: The cone gas assembly can be contaminated with
biohazardous and/or toxic materials. Always wear
chemical-resistant, powder-free gloves while performing this
procedure.
Caution: Do not apply excessive force to the source enclosure door
when using the extraction tool on the source door.

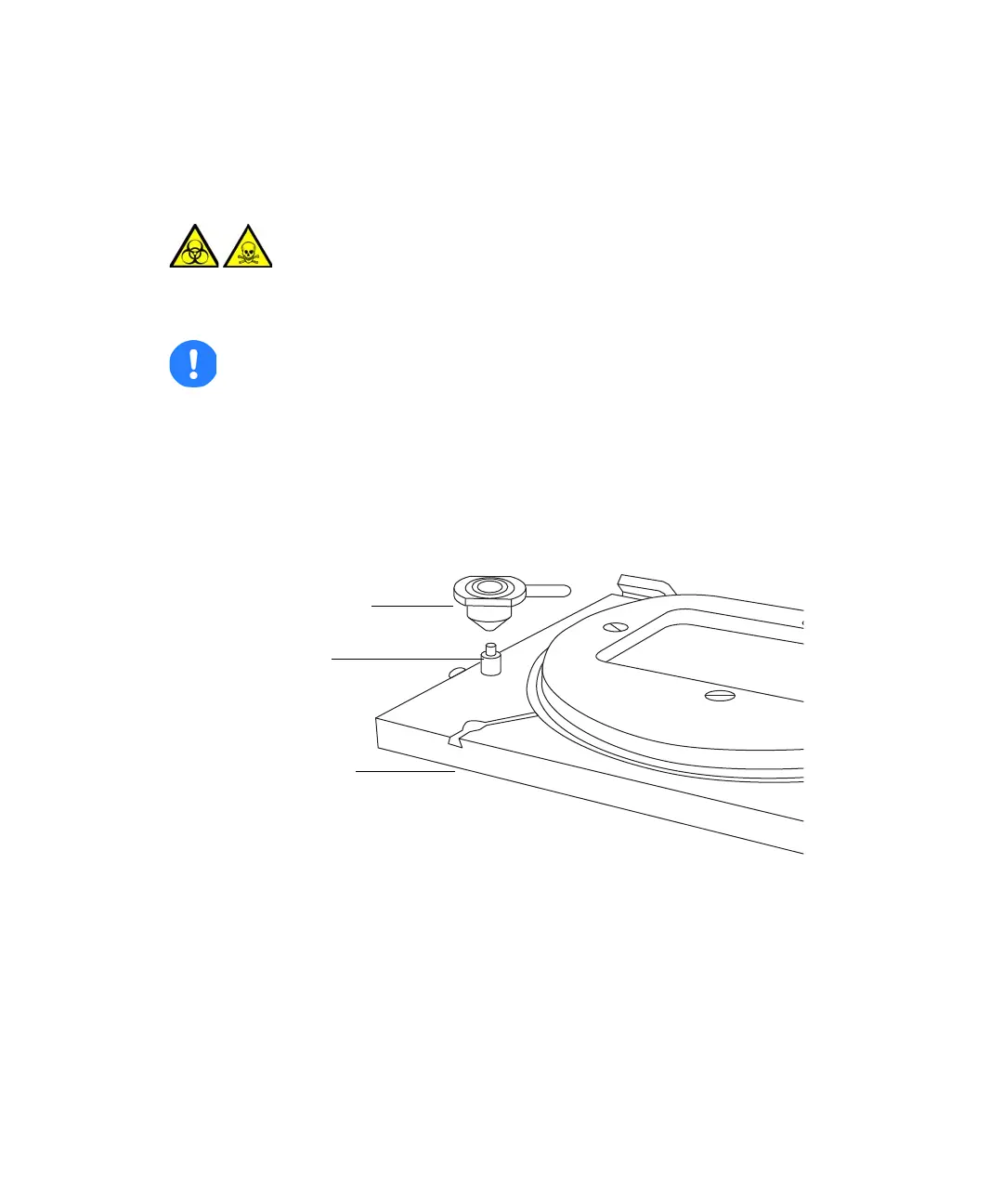

Cone gas assembly
Extraction tool
Source enclosure
door
