Waters 3100 - Diverter Valve Positions

2-8 Preparing for Operation
3. Screw the low-volume vial into the adaptor.

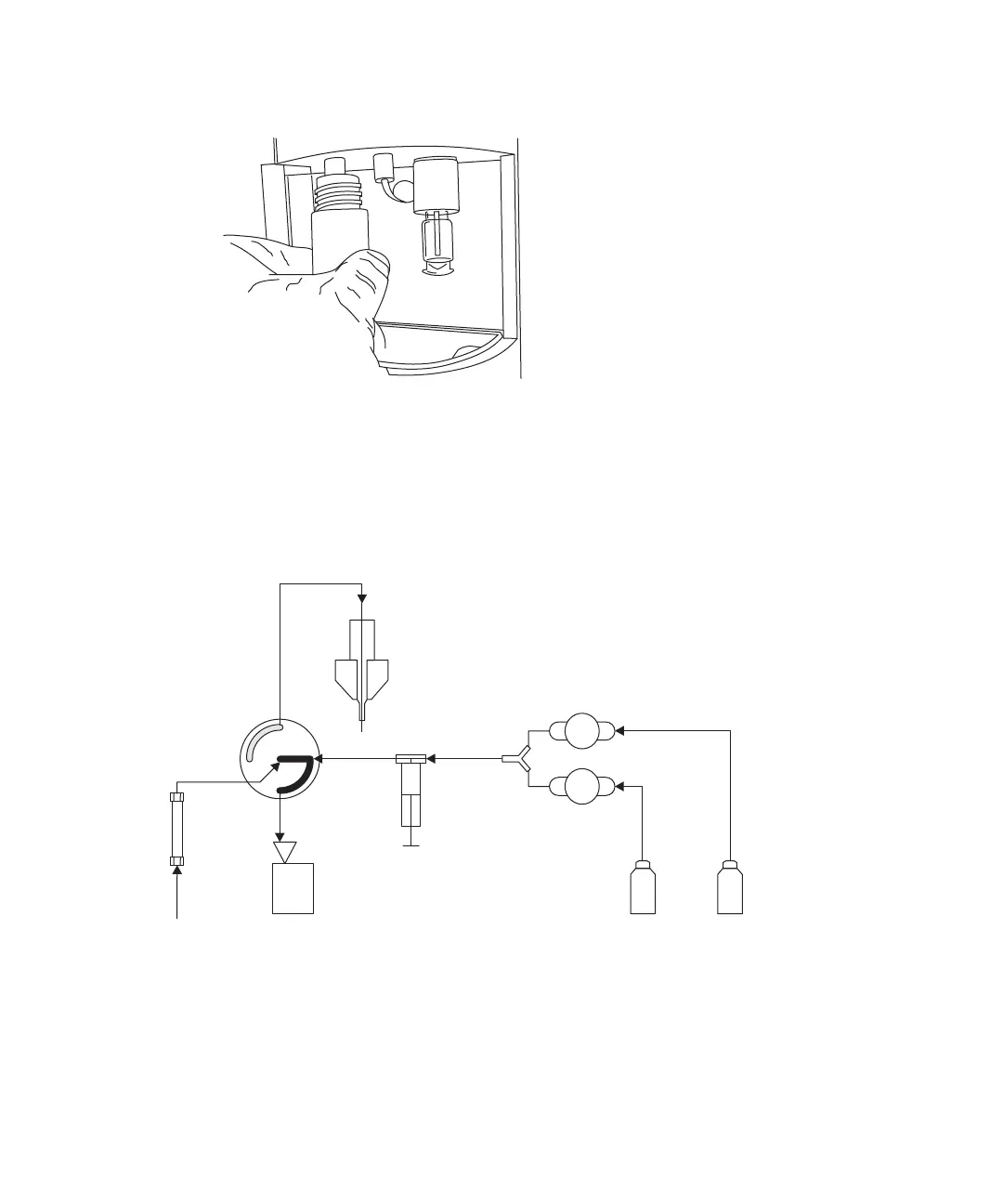

Diverter valve positions
Column and syringe in home position after power-up
After power-up, the flow path between the column and waste is open. The
syringe is empty, and the flow path between it and waste is open.
TP02630
Column
Waste
LC Waste
Probe
Syringe
Idle
Reservoir A Reservoir B
Off
Off
B
A
