5-96 Maintenance Procedures

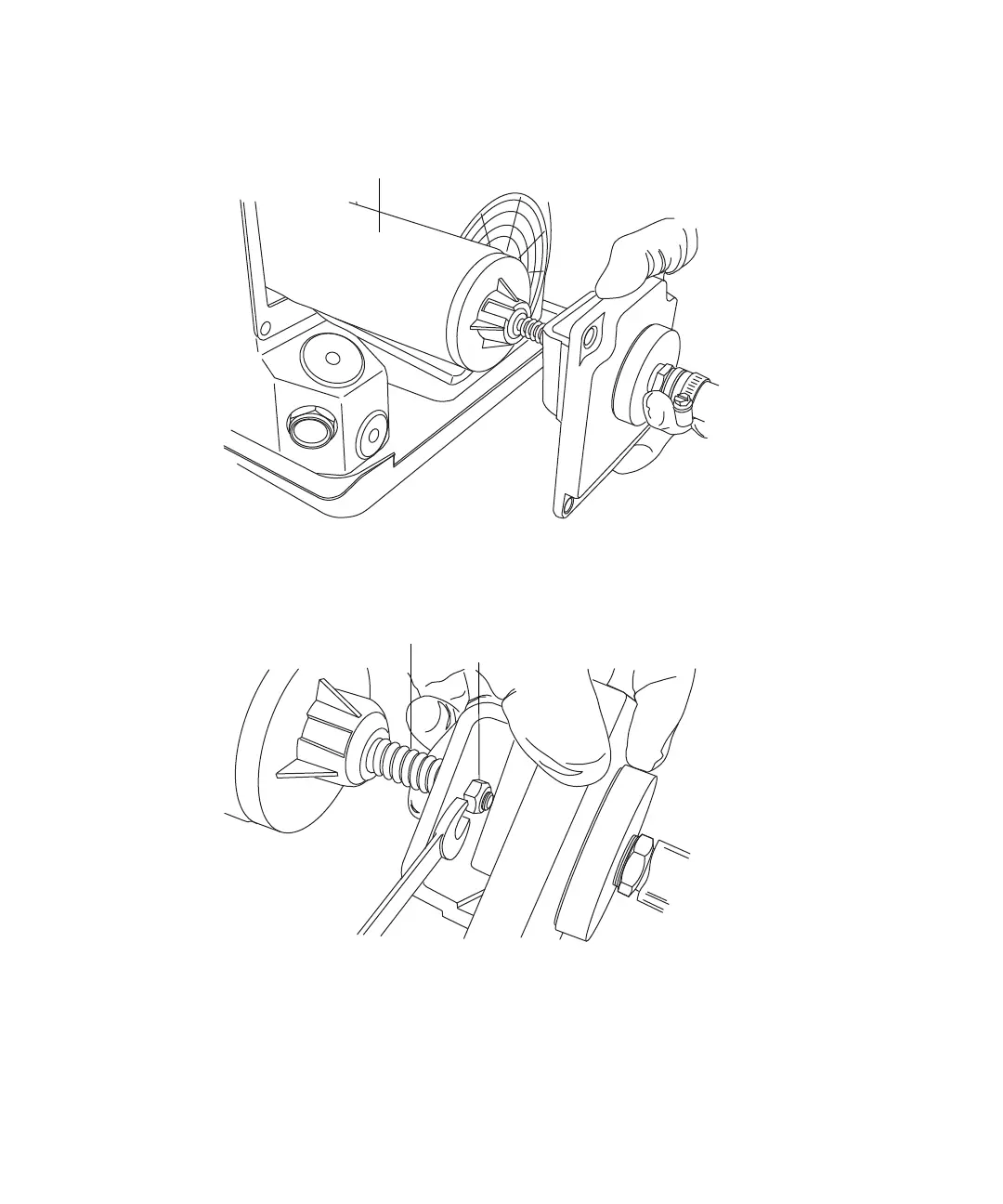

4. Using both hands, carefully remove the exhaust flange and oil demister

element from the roughing pump.

5. Use the 10-mm wrench to remove the nut that secures the oil demister

element to the exhaust flange.

TP02693

Oil demister element

TP02686

Securing nut

Spring
