Waters 3100 - Page 194

To Next Page

To Previous Page

B-22 External Connections

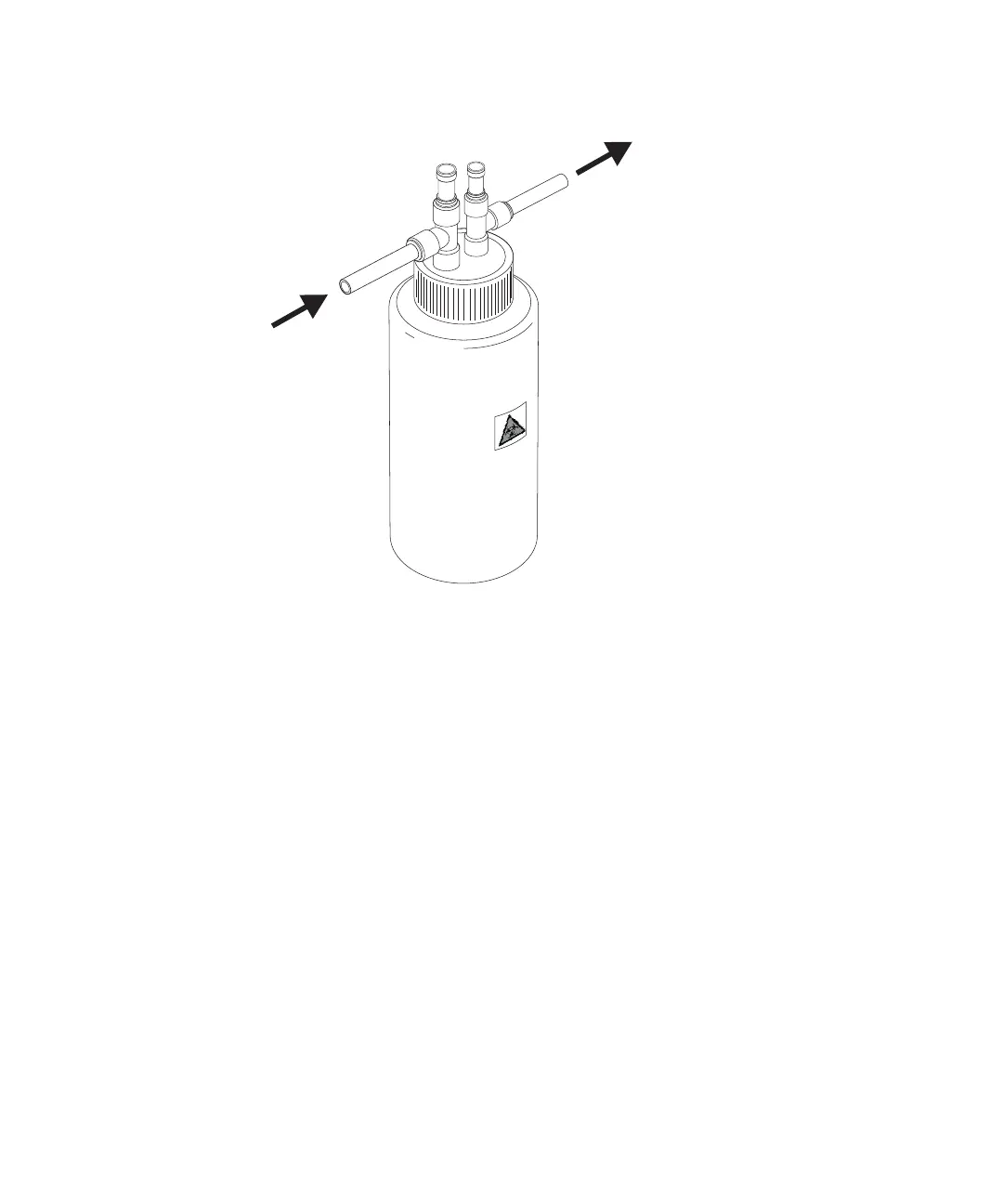

Exhaust trap bottle

From instrument

exhaust connection

(12-mm OD)

To laboratory

exhaust port

(10-mm OD)
