I/O signal connectorsB-27

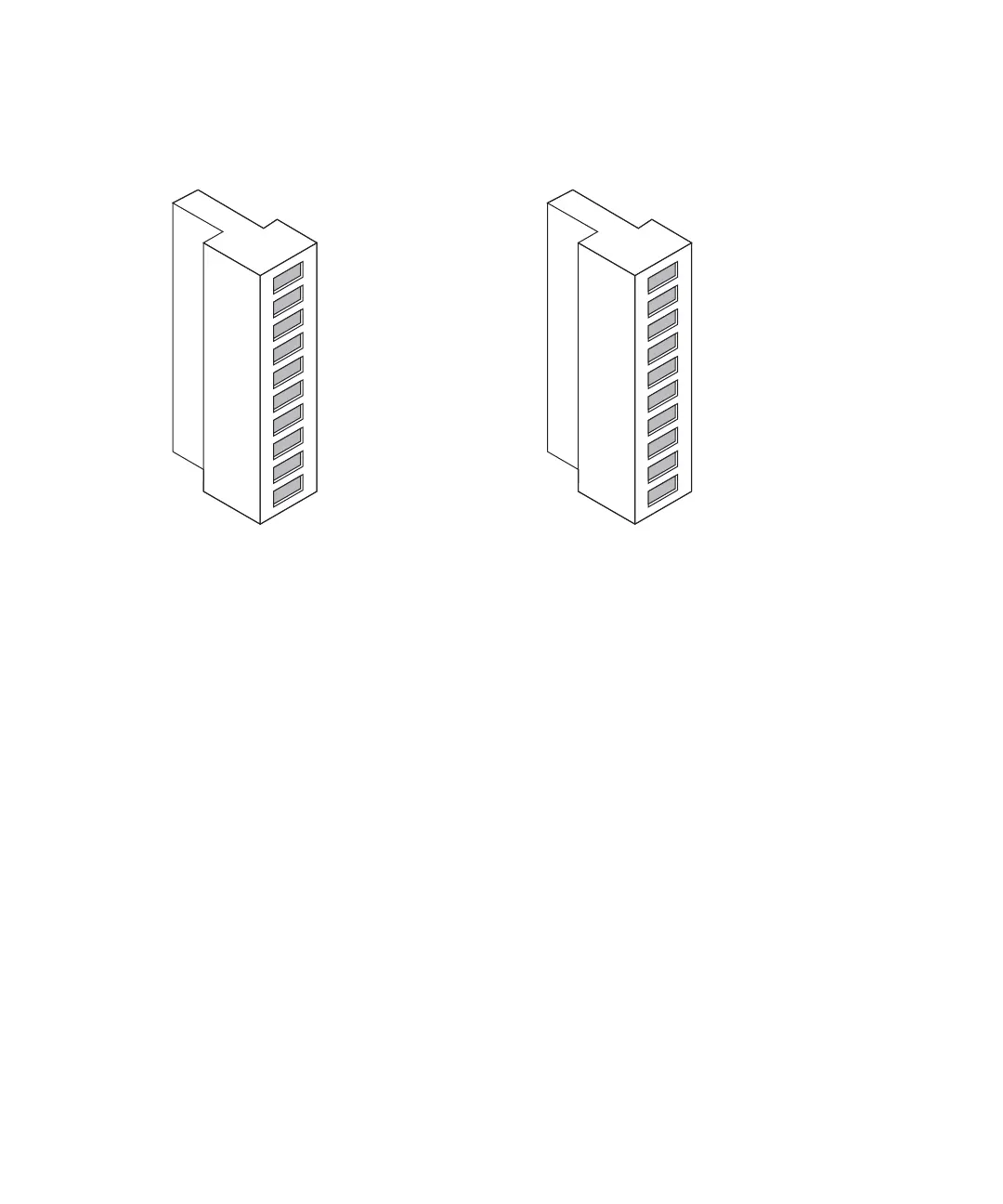

I/O signal connectors
1
2
3
4
5
6
7
8
9
10


Analog (Out)
Analog (Out)
Ground
Not Used
Not Used
Stop Flow (Out)
Stop Flow (Out)
Ground
Switch 2 (Out)
Switch 2 (Out)
Connector I
1
2
3
4
5
6
7
8
9
10








Inject Start (In)
Inject Start (In)
Ground
Event (In)
Event (In)
Switch 3 (Out)
Switch 3 (Out)
Ground
Switch 4 (Out)
Switch 4 (Out)
Connector II
