3-4 ESI and ESCi Modes of Operation

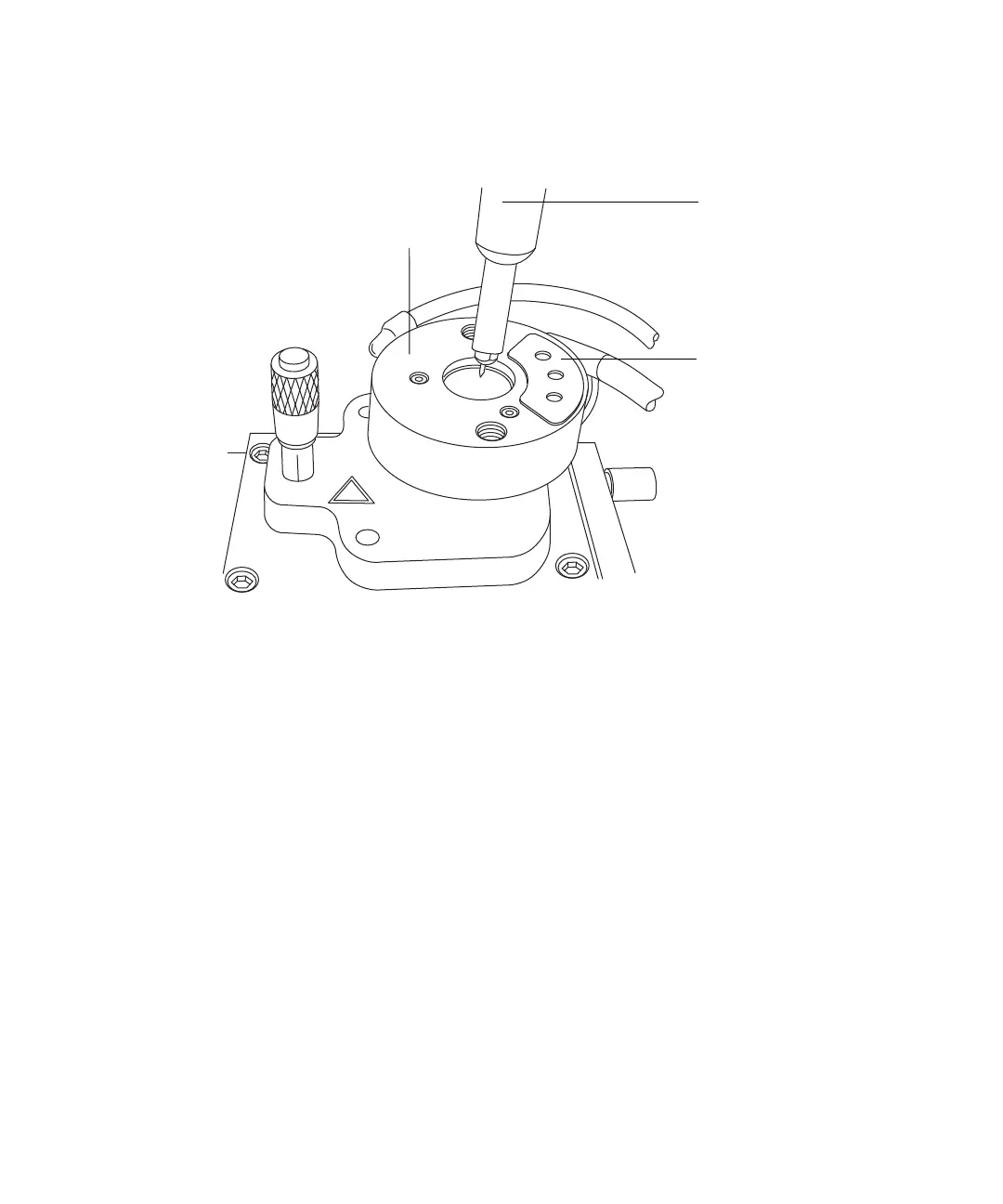

4. Ensure that the contacts on the ESI probe align with the probe adjuster

assembly contacts, and carefully slide the ESI probe into the hole in the

probe adjuster assembly.

TP02632

ESI probe

Probe adjuster

assembly contacts

Probe adjuster assembly
