June 28, 2016, 715003956 Rev. C
Page 29

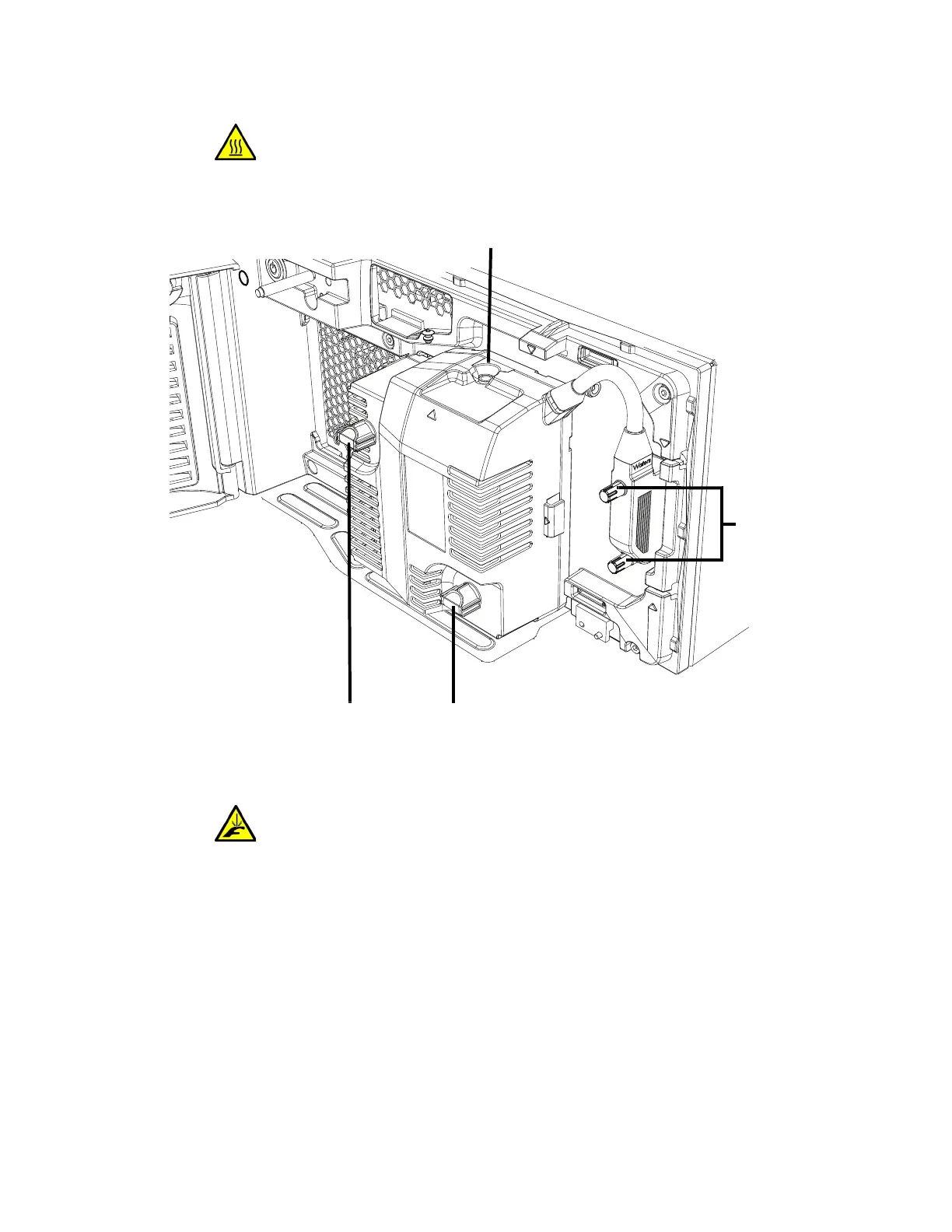

Figure 3–1: Removing the source enclosure
6. To remove the source enclosure, pull it away from the instrument using both hands.
7. Remove the probe from the top of the source enclosure using the probe fitting (see the
figure on page 23).
Warning: To avoid burn injuries, allow the source enclosure to cool before touching
the metal interior.
Warning: To avoid puncture injuries from the sharp probe tip, use care when
inserting and removing the probe from the source enclosure.
Source enclosure thumbscrews
Cable screws
Probe entrance
