3.10 Emptying the nitrogen exhaust trap
Inspect the nitrogen exhaust trap in the instrument’s exhaust line daily, and empty it before it is
more than 10% full.

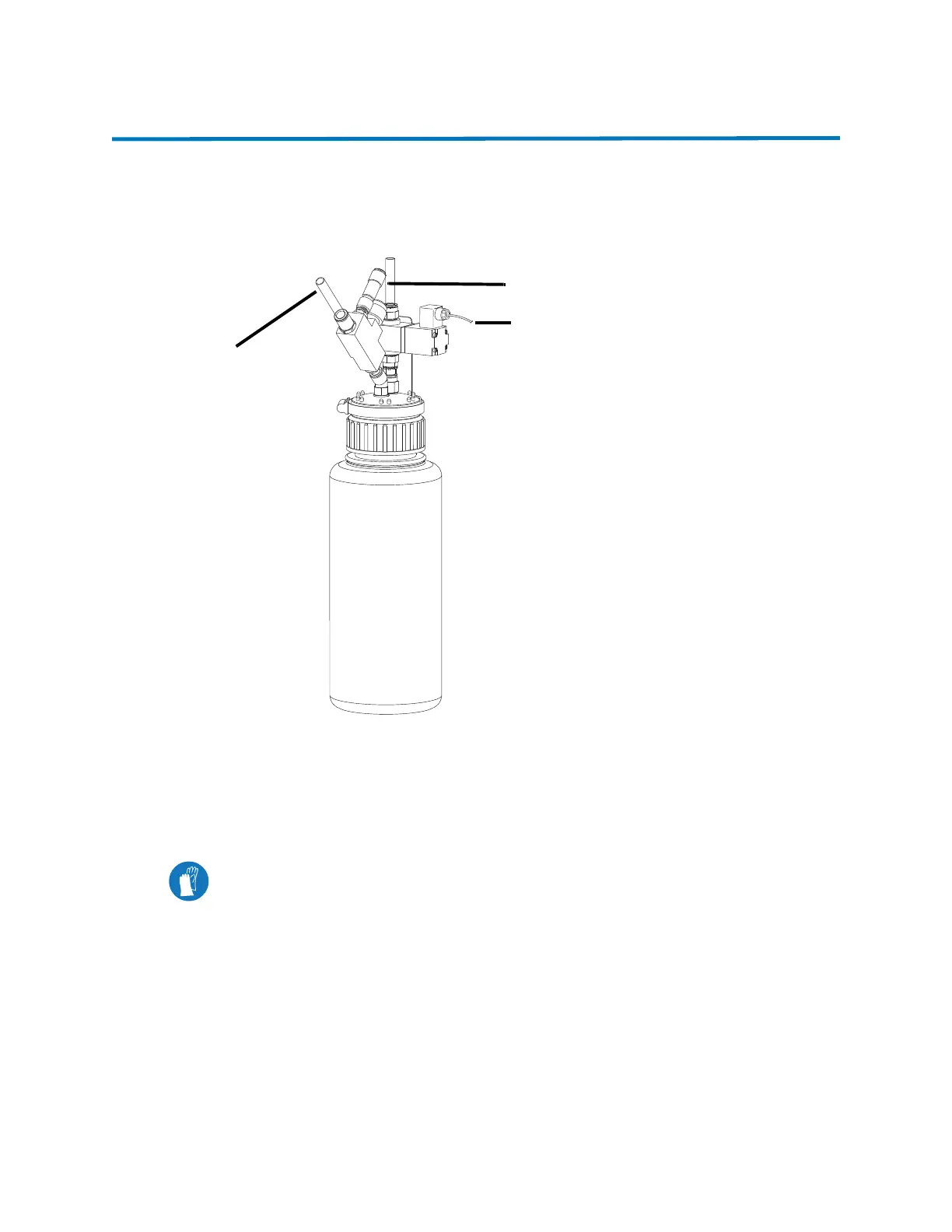

Figure 3–15: Nitrogen exhaust trap
Required material
Chemical-resistant, powder-free gloves
To empty the trap:
1. In the software, stop the LC flow.
2. Remove the source enclosure (see page 28).
Requirement: Wear clean, chemical-resistant, powder-free gloves when emptying the
nitrogen exhaust trap.
From instrument
exhaust connection
(12-mm OD)
To laboratory exhaust
port (12-mm O.D.)
Exhaust solenoid
cable
