June 28, 2016, 715003956 Rev. C
Page 32

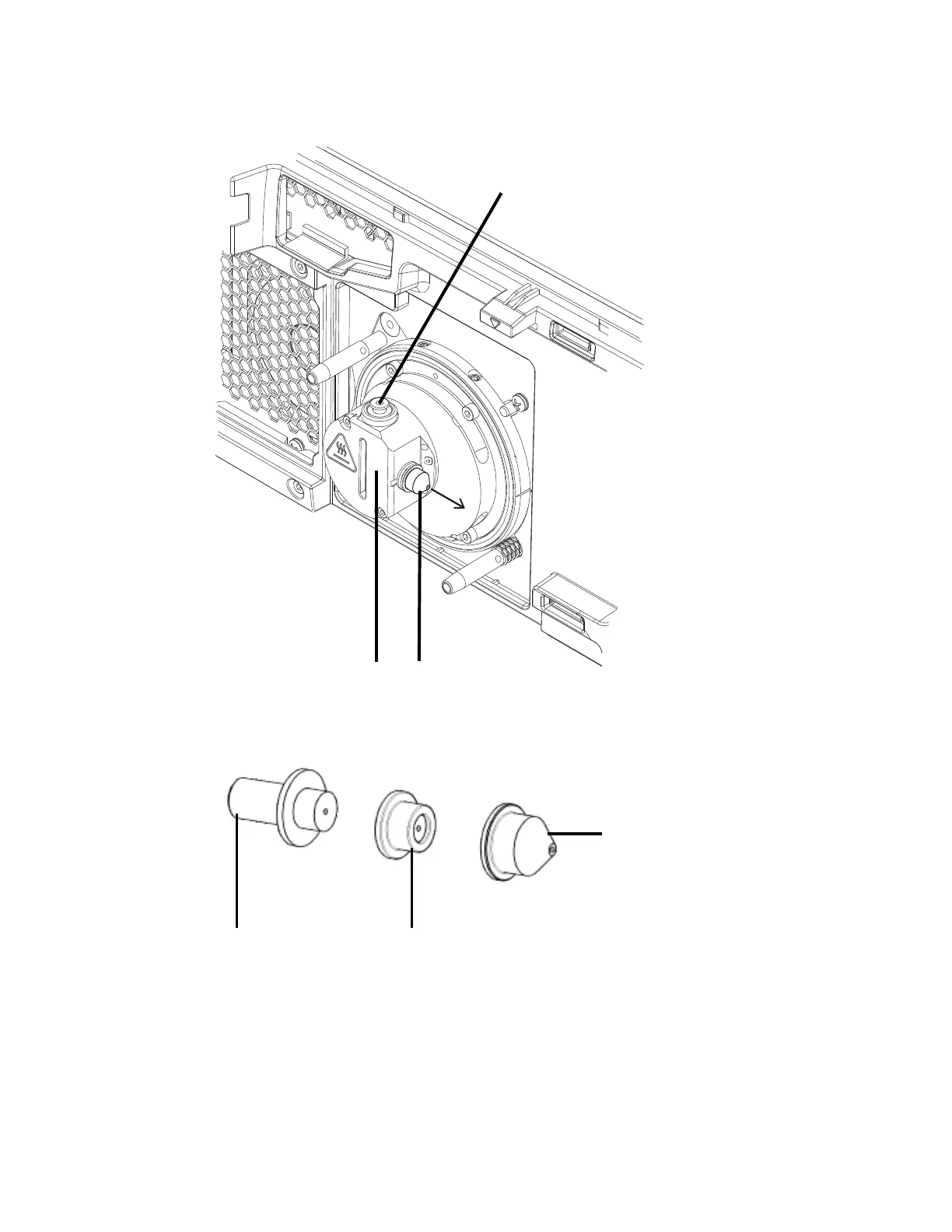

Figure 3–3: Removing the sample cone assembly
Figure 3–4: Sample cone assembly components
3.7.2 Replacing the entrance-aperture seal and disc
Replace the entrance seal aperture when these conditions apply:
• You have dismissed LC and sample-related causes for decreased signal intensity.
• Cleaning the source components fails to increase signal stability.
Sample cone assemblyIon block
Calibration pin
Entrance-aperture carrier Disc aperture
assembly
Sample cone
