D.3 Connecting the Performance instrument’s backing
pump
Note: To connect the Standard instrument’s backing pump, see page 80.

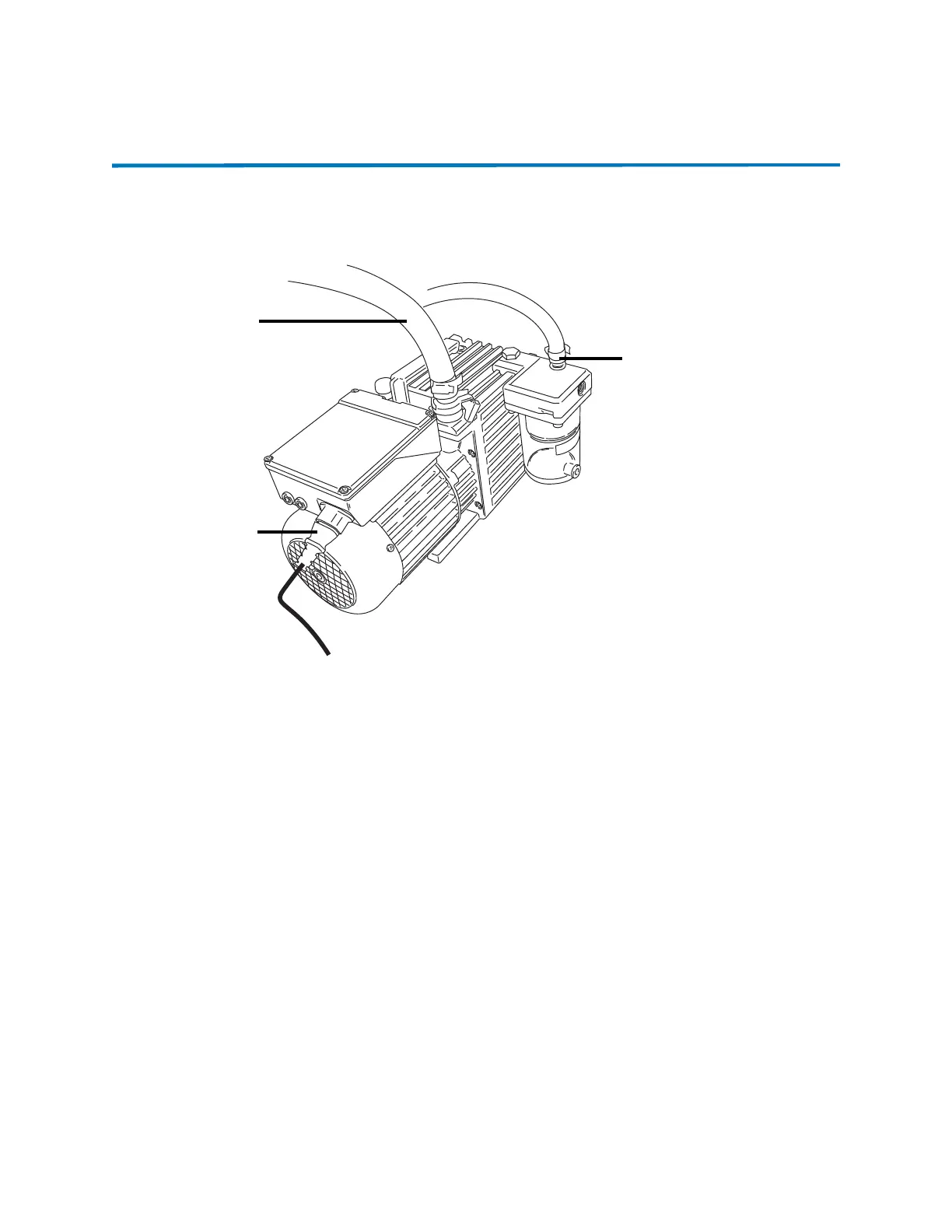

Figure D–2: Connecting the backing pump
Required materials
• Chemical-resistant, powder-free gloves
• 7-mm nut driver
• 8-mm Allen wrench
• Sharp knife
• NW16 clamp (included in the installation kit)
• NW16 O-ring (included in the installation kit)
• PVC exhaust tubing (included in the installation kit)
• PVC hose clamps (included in the installation kit)
• 1-inch ID vacuum hose (included in the installation kit)
Exhaust port
Vacuum hose
assembly
Power cable
