June 28, 2016, 715003956 Rev. C
Page 99

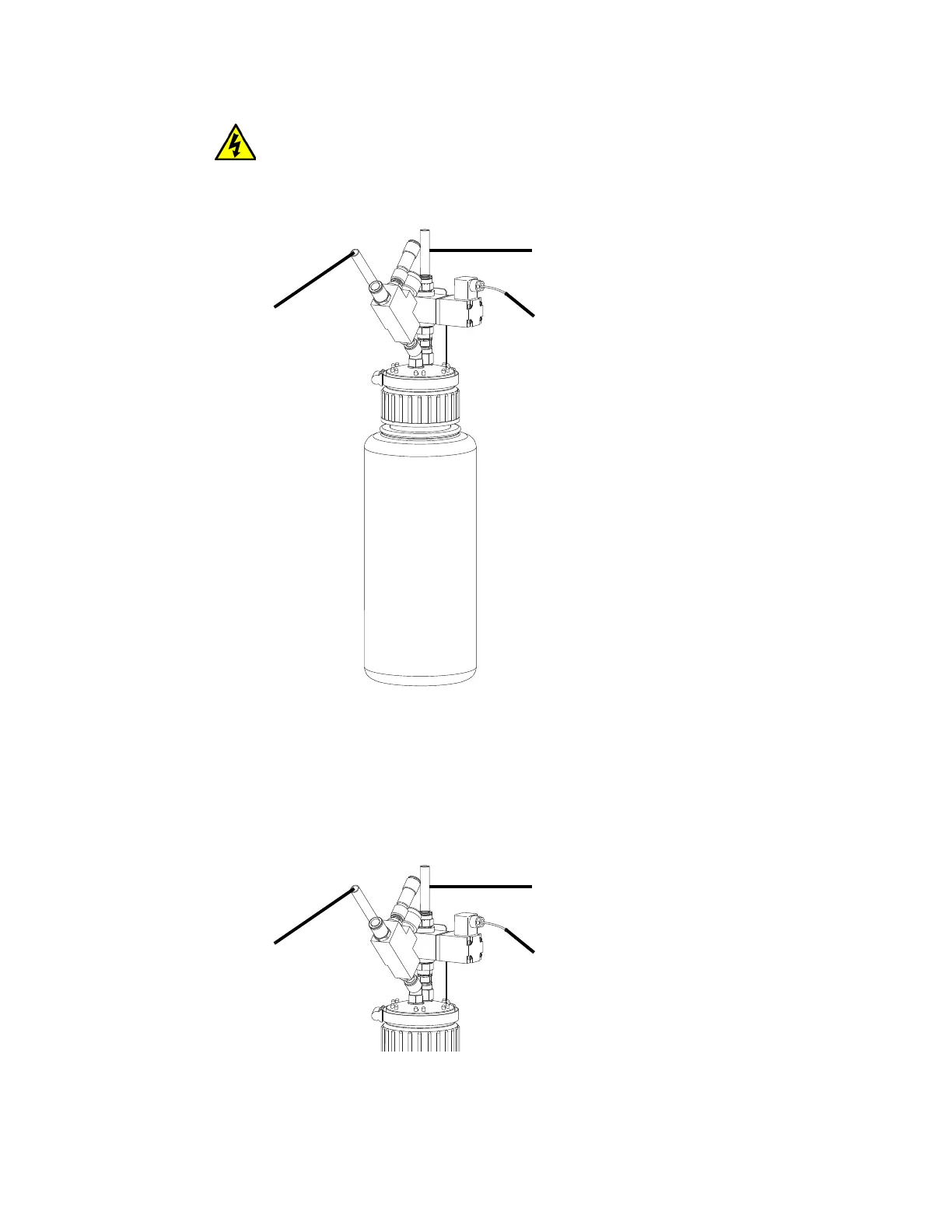

Figure D–15: Exhaust trap bottle
D.8.1 Connecting the exhaust solenoid cable
To connect the exhaust solenoid cable:
1. Connect the exhaust solenoid cable to the port on the exhaust trap bottle.
Figure D–16: Exhaust solenoid connection
2. Connect the other end of the cable to the exhaust solenoid connection on the rear panel of
the instrument (see page 80).
Warning: To avoid electric shock, ensure the instrument is powered off when
connecting the exhaust solenoid cable.
From instrument
exhaust connection
(12-mm OD)
To laboratory exhaust
port (12-mm OD)
Exhaust solenoid
cable
From instrument
exhaust connection
(12-mm OD)
To laboratory exhaust
port (12-mm OD)
Exhaust solenoid
cable
