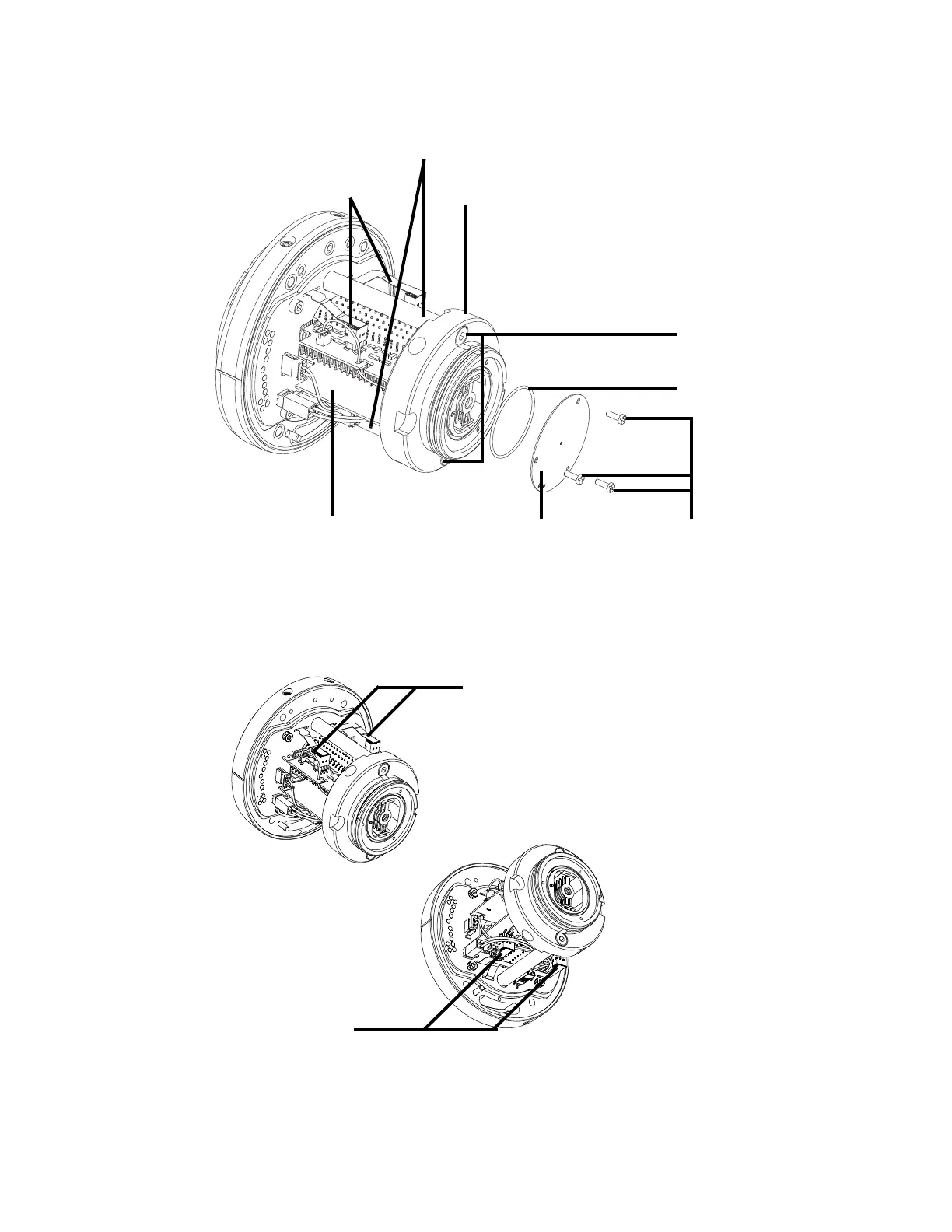

Figure 3–8: Removing the differential aperture
6. Disconnect the four electrical connectors from the ion guide, leaving them attached to the
pumping block.
Figure 3–9: Ion guide - electrical connector
Differential aperture
securing screws
Differential aperture Ion guide
O-ring
Differential aperture support
Ion guide support rods
Differential
aperture support
screws
Electrical connectors
Ion guide electrical
connectors - top view
Ion guide electrical connectors -
underside view
