Waters Xevo TQD - Rear Panel Connections

Rear panel connections 1-21
Rear panel connections

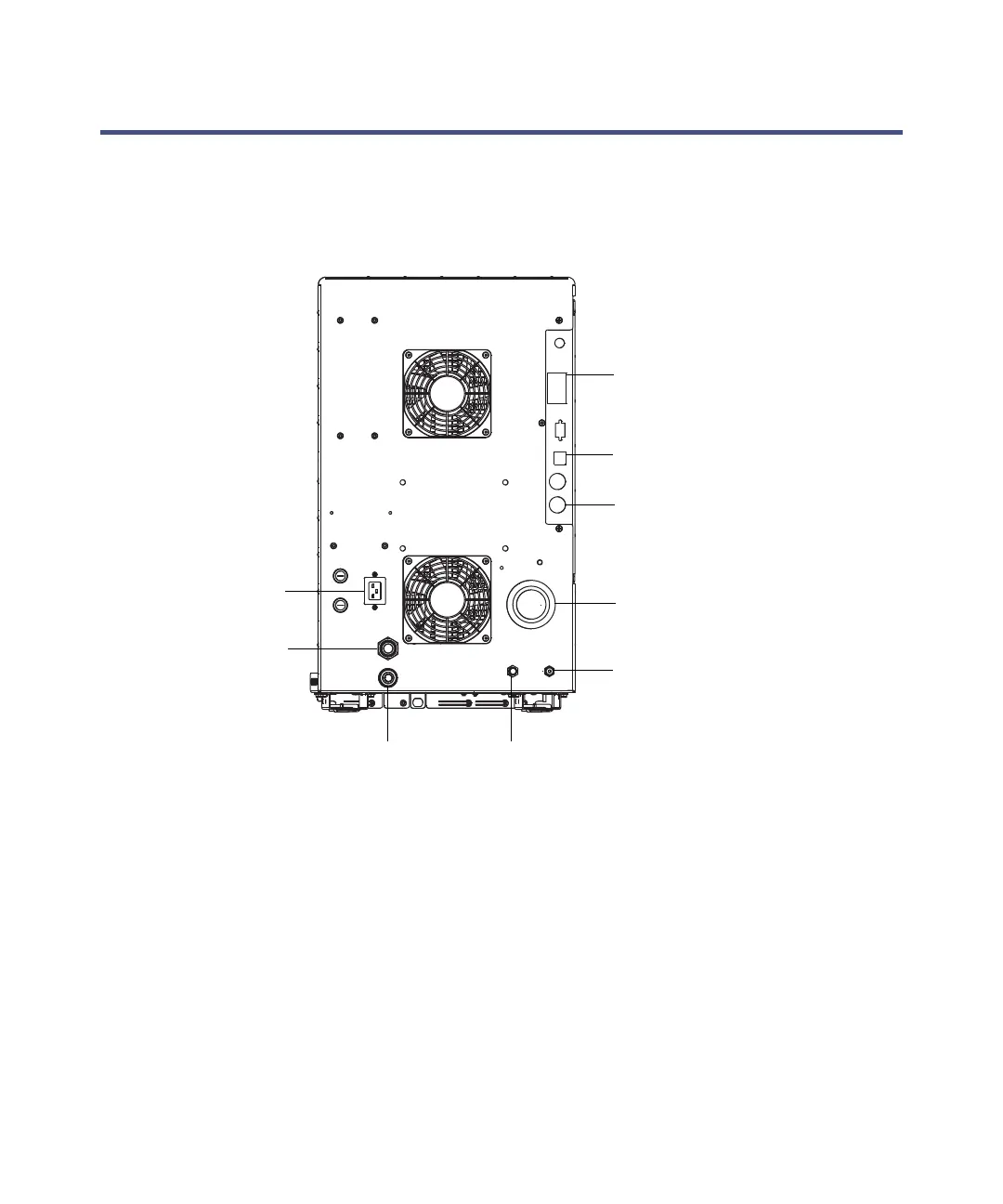

The following figure shows the rear panel locations of the connectors used to
operate the instrument with external devices.
Instrument rear panel:
Power
Source vent
Source vacuum
Nitrogen inlet
Collision cell
gas inlet
Turbo vacuum
Roughing pump
control
Shielded
Ethernet
Event inputs
and outputs
