Waters Xevo TQD - System Operation

1-12 Specifications and Operating Modes

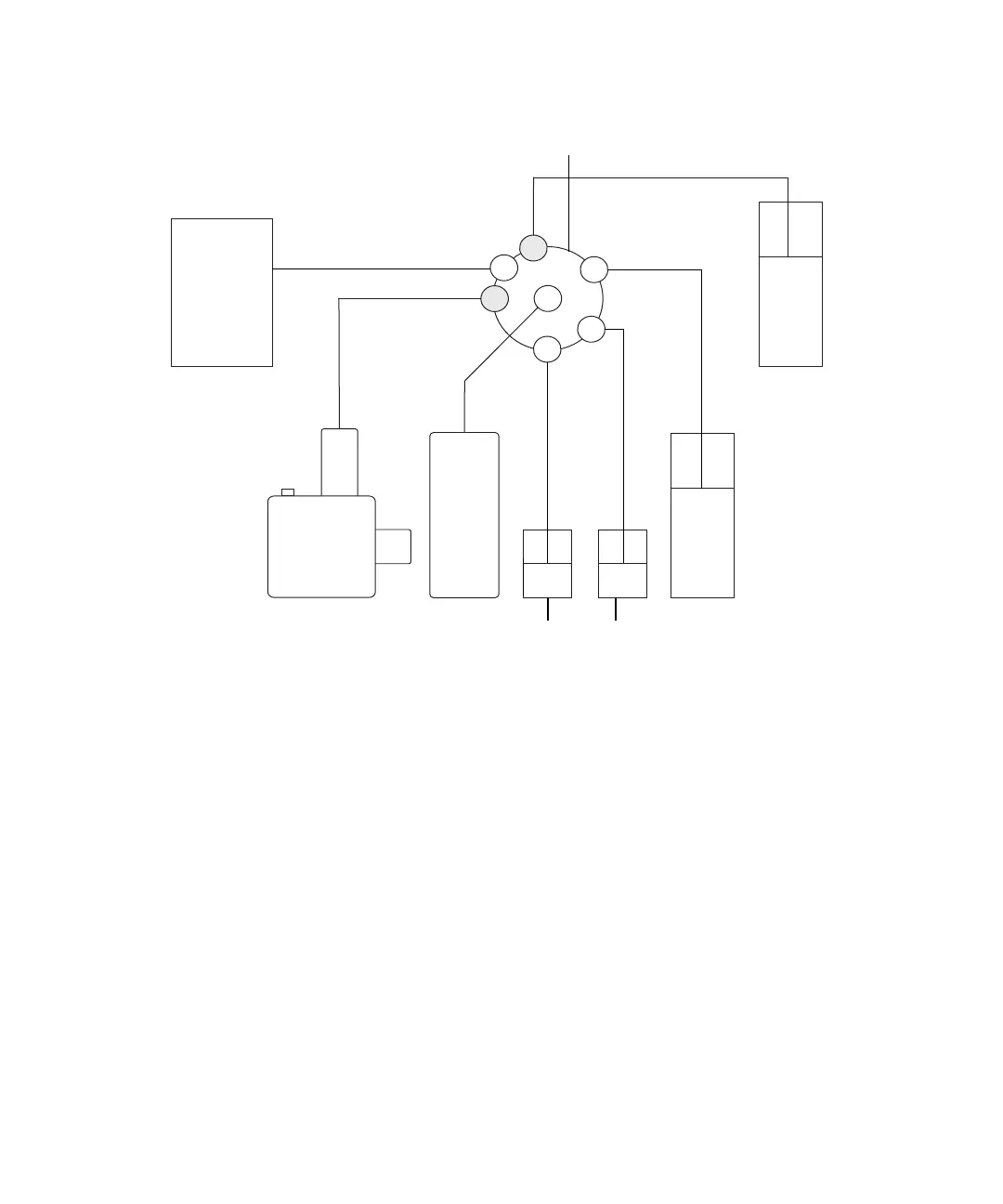

IntelliStart Fluidics system:
System operation
The software automatically controls solvent and sample delivery during
auto-tuning, auto-calibration, and method development. The selector valve
systematically makes connections between the fluidics components to carry
out the operations processed by the software.
You can set IntelliStart fluidics configuration requirements in the system
console. You can edit the parameters, frequency, and extent of the
automation. See the mass spectrometer’s online Help for further details on
IntelliStart software and operation of the solvent delivery system.
For information on plumbing the IntelliStart Fluidics system, see Appendix D.
