Watlow F4T Install & Troubleshooting • 5 • Chapter 2 Install and Wire

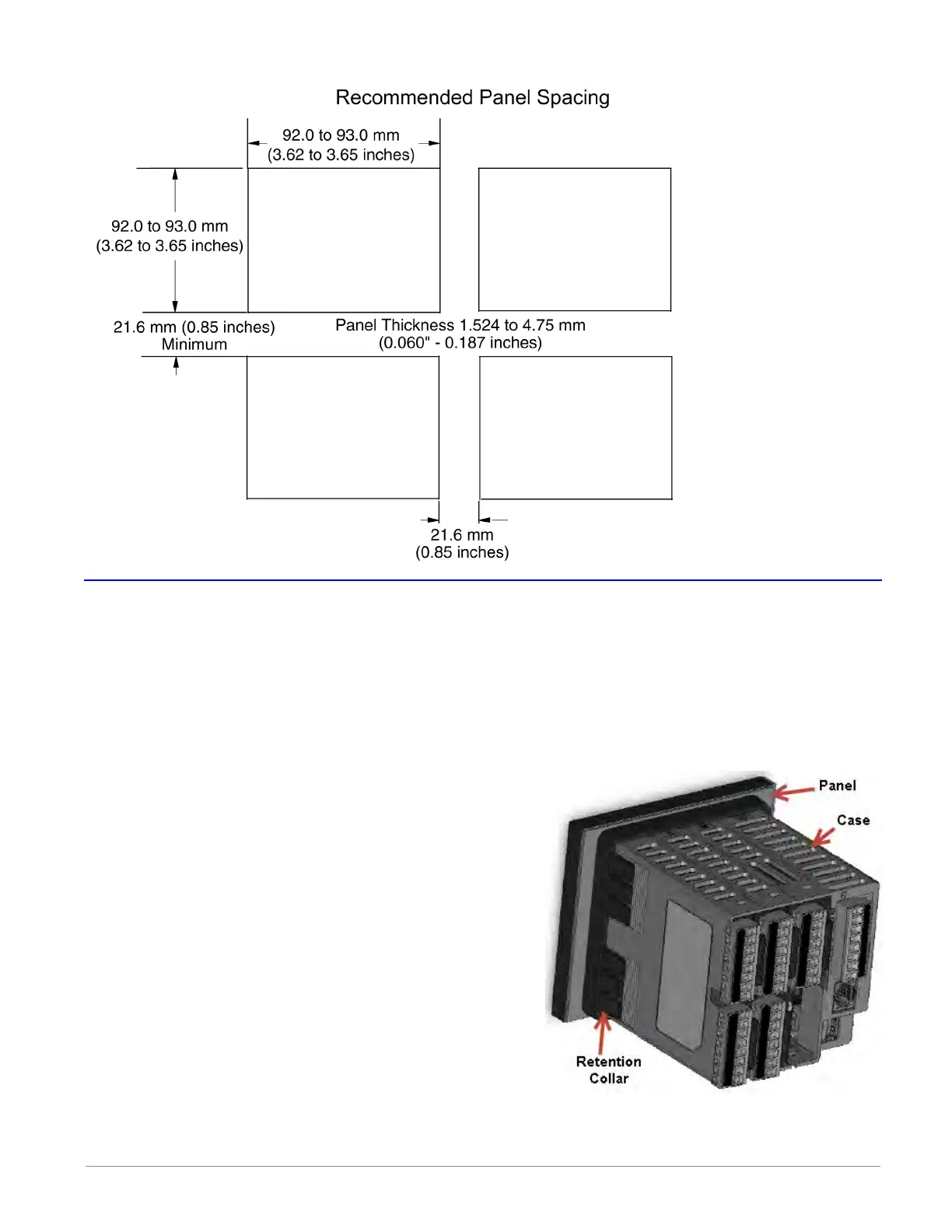

Dimensions (cont.)
Installing the F4T
Panel Mounting the Base
1. Make the panel cutout using the mounting template dimensions above and insert the
case assembly into the panel cutout.
2. While pressing the case assembly rmly against the panel, slide the Retention Collar
over the back of the controller until the gasket is compressed.
3. For an IP65 seal, alternately place and push
the blade of a screwdriver against each of the
the four corners of the retention collar assem-
bly. Apply pressure to the face of the control-
ler while pushing with the screwdriver. Don't
be afraid to apply enough pressure to properly
install the controller. The seal system is com-
pressed more by mating the retention collar
tighter to the front panel. If you can move the
case assembly back and forth in the cutout, you
do not have a proper seal. The tabs on each side
of the retention collar have teeth that latch into
the ridges on the sides of the controller. Each
tooth is staggered at a different depth from the
front so that only one of the tabs, on each side,
is locked onto the ridges at a time.
