6. Apply mains power to the pump, press start and run the pumphead for a few
revolutions.
7. Stop the pump and isolate it from the mains power supply, then tighten the clamps
further if necessary.
26.1 Connecting interface tubing

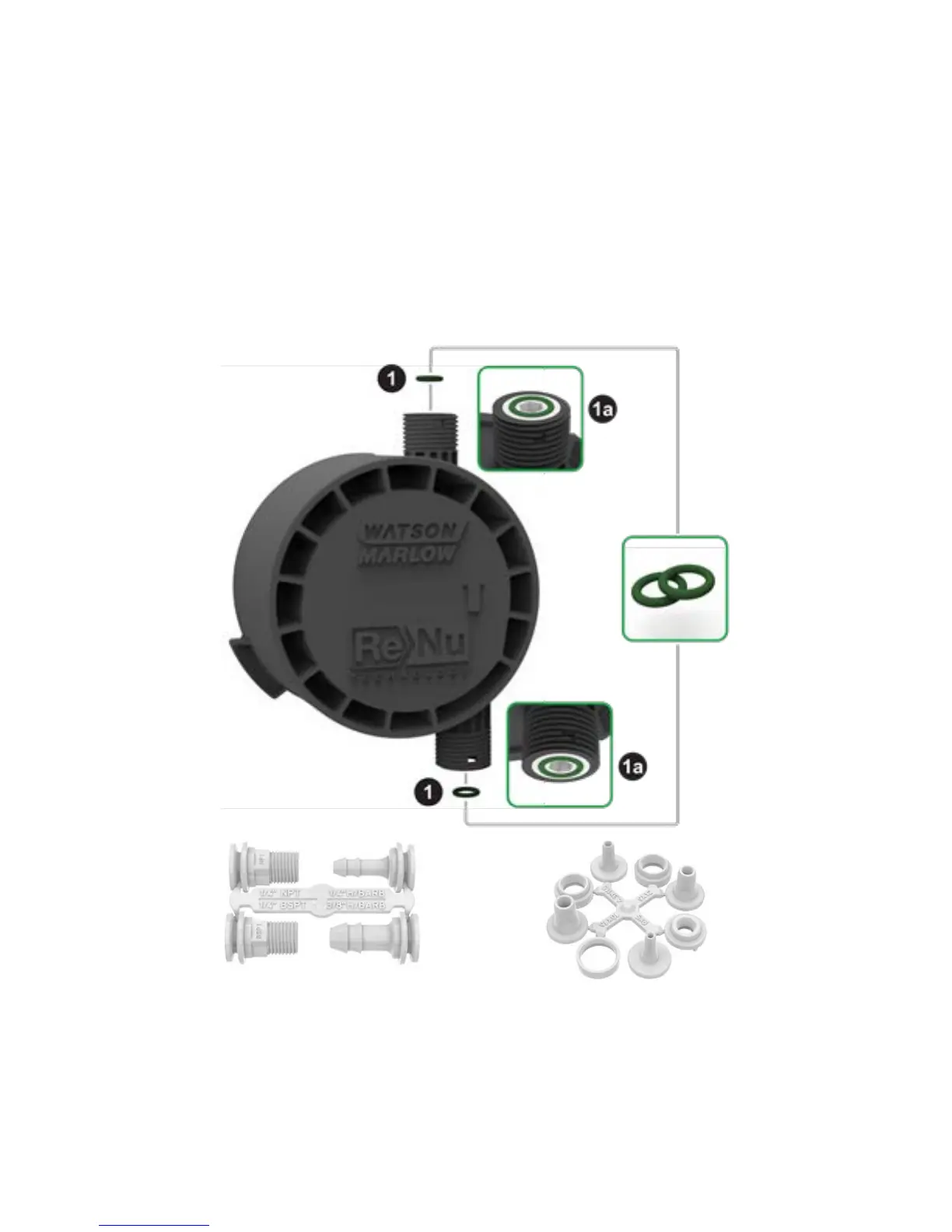

Note: Please refer to the diagram below in conjunction to the text when connecting
interface tubing to the pumphead.
Before connecting the interface tubing, ensure that the supplied Santoprene seals (1) are
correctly fitted in the head ports (1a) and that the Santoprene seals and connector
material is compatible with pumped fluid.
Hydraulic connector pack -
PVDFbarb/threaded ttings
Hydraulic connector pack -
polypropylene compression ttings
