Watson-Marlow qdos30 - User Parameter Data

MaxTsdr_1.5M=150
MaxTsdr_3M=250
MaxTsdr_6M=450
MaxTsdr_12M=800
Slave_Family = 0
Implementation_Type = “VPC3+S”
Info_Text=”PROFICHIP: PROFIBUS DPV0 - slave, Watson Marlow Qdos”
Bitmap_Device = “WAMA_1N”
Freeze_Mode_supp=1
Sync_Mode_supp=1
Fail_Safe=1
Auto_Baud_supp=1
Set_Slave_Add_supp=0
Min_Slave_Intervall=6
Modular_Station=0
Max_Diag_Data_Len=34
Max_User_Prm_Data_Len = 9
Ext_User_Prm_Data_Const(0)= 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00
Module=”WM Pump, 3/14 word out/in” 0x62,0x5D
1
EndModule
17.4 User Parameter Data

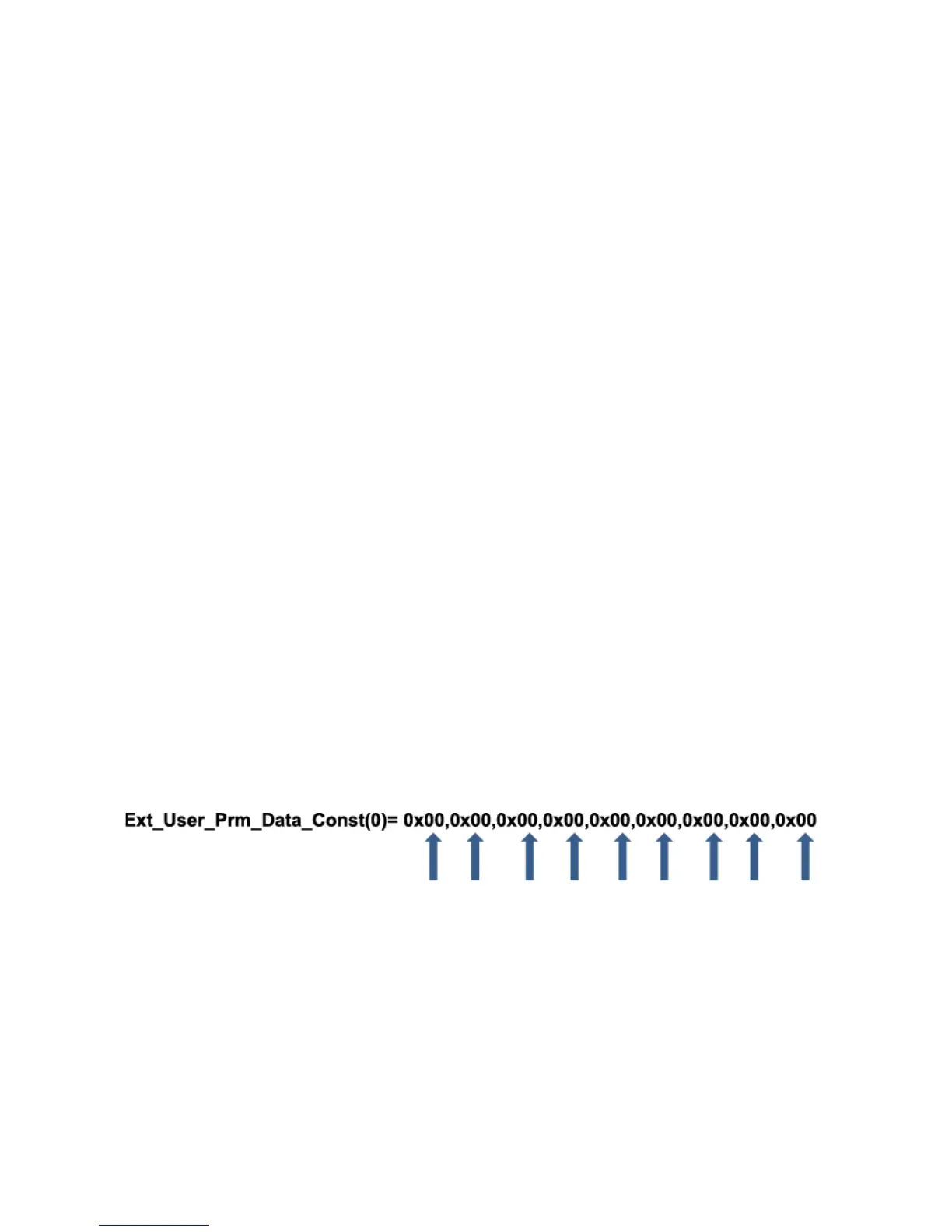

The user parameter data is set by entering values into the ‘Ext_User_Prm_Data_ Const(0)’
line of the GSD file. This is indicated below and the relevant bytes are listed in the table.
No further changes should be made to the GSD file and Watson- Marlow accepts no
responsibility for pump failures arising from changes to the GSD file.
Byte
1
Byte
2
Byte
3
Byte
4
Byte
5
Byte
6
Byte
7
Byte
8
Byte
9
8 bit Byte 1 Pre Assigned
8 bit Byte 2 Reserved
8 bit Byte 3 Min Speed (High byte of 16-bit unsigned)
8 bit Byte 4 Min Speed (Low byte of 16-bit unsigned)
8 bit Byte 5 Max Speed (High byte of 16-bit unsigned)
8 bit Byte 6 Max Speed (Low byte of 16-bit unsigned)
m-qdos-en-02 58
