21.5 Control settings (Manual, PROFIBUS, Universal and
Universal+ only)

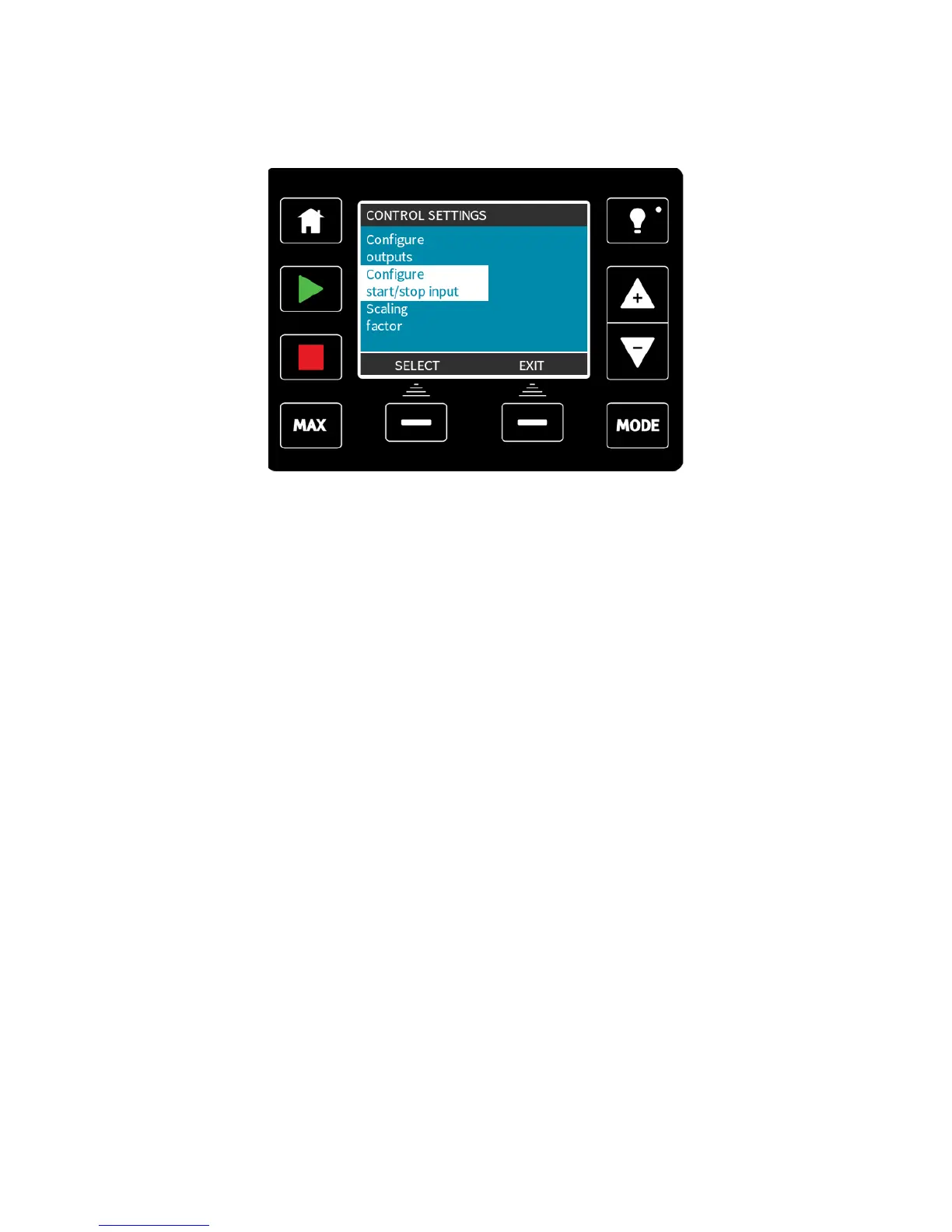

Select CONTROL SETTINGS from the main menu to access the sub menu shown below.
Use +/- keys to move the selection bar. Press SELECT to choose the required function.
Speed limit
The maximum speed the qdos30, qdos60 or qdos120 pump is capable of running at is 125
rpm
The maximum speed the qdos20 pump is capable of running at is 55 rpm.
Select Speed limit from the control settings menu to define a lower maximum speed limit
for the pump.
Use the +/- keys to adjust the value and press SAVE to set.
m-qdos-en-02 98
