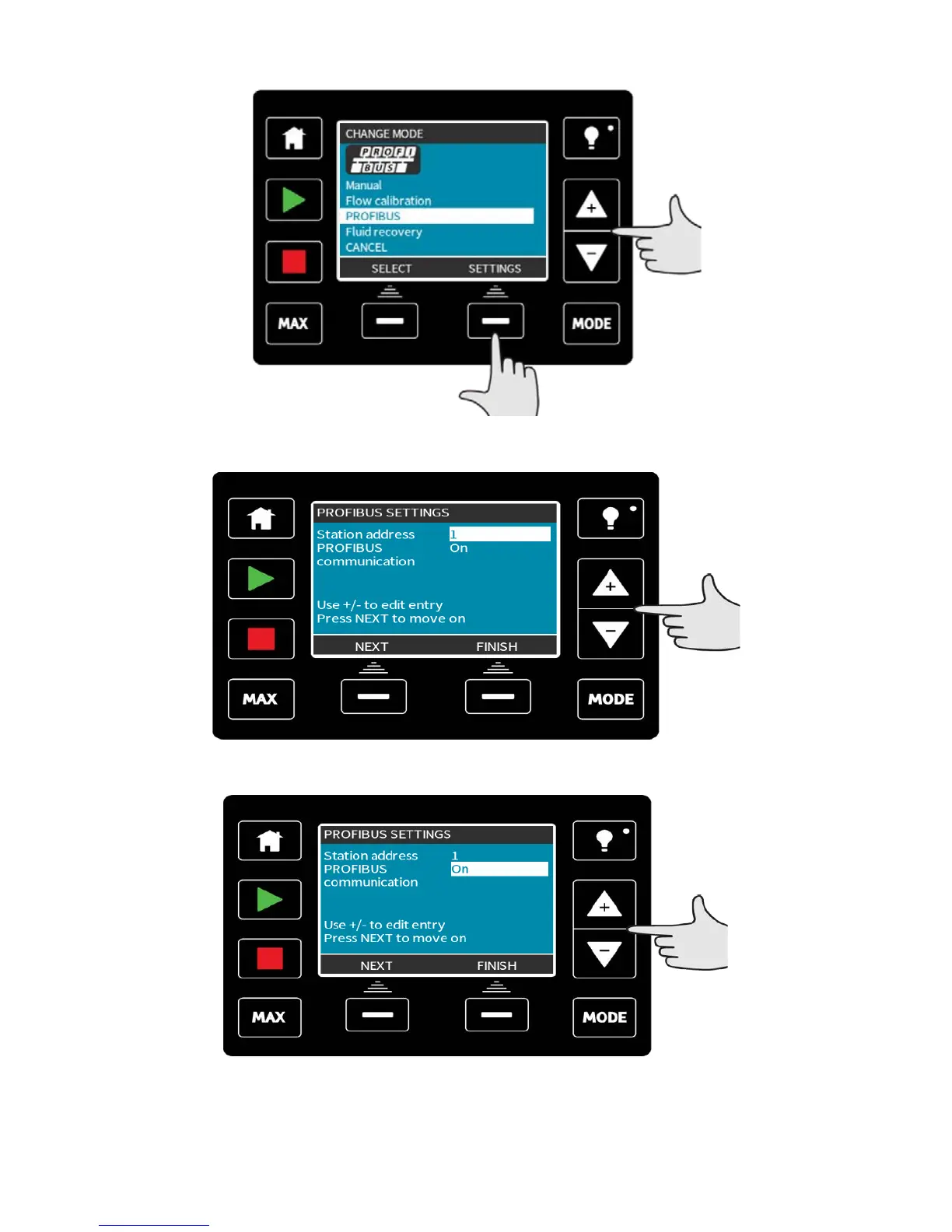

Using the +/- keys alter the station address, in the range from 1 to 125. (126 is the default

station address).

Press FINISH to set the station address, or NEXT to enable/disable PROFIBUS

communication.

Use the +/- keys to enable or disable PROFIBUS communication and press FINISH.

m-qdos-en-02 54
