Cyclic Data Write (from Master to pump)
16 bit Byte 5 (low), 6 (high) Set Flow Calibration in μl per revolution
Control Word
Bit Description
0 Motor running (1= Running)
1 Direction (0= CW, 1= CCW)
2 Motor revolution counter reset (1=Reset count)
3 Reserved
4 Enable User Parameter Min/Max Speeds (1= Enabled)
5 Enable Fieldbus master to set Flow Calibration (1= Enabled)
6 Ignore leak detection sensor
7 Fluid Level Reset
8-15 Reserved
Pumphead Speed Setpoint
The speed setpoint is a 16-bit unsigned integer value that represents the speed of the
pump head in 1/10th of RPM. For example 1205 represents 120.5 RPM.
Set Flow Calibration
This parameter is used to set the flow calibration value from the fieldbus interface. The
value is a 16 bit unsigned integer representing μl per revolution of the pumphead. Note
that this value is only used if bit 5 of the Control Word is enabled.
Ignore Leak Detection Sensor

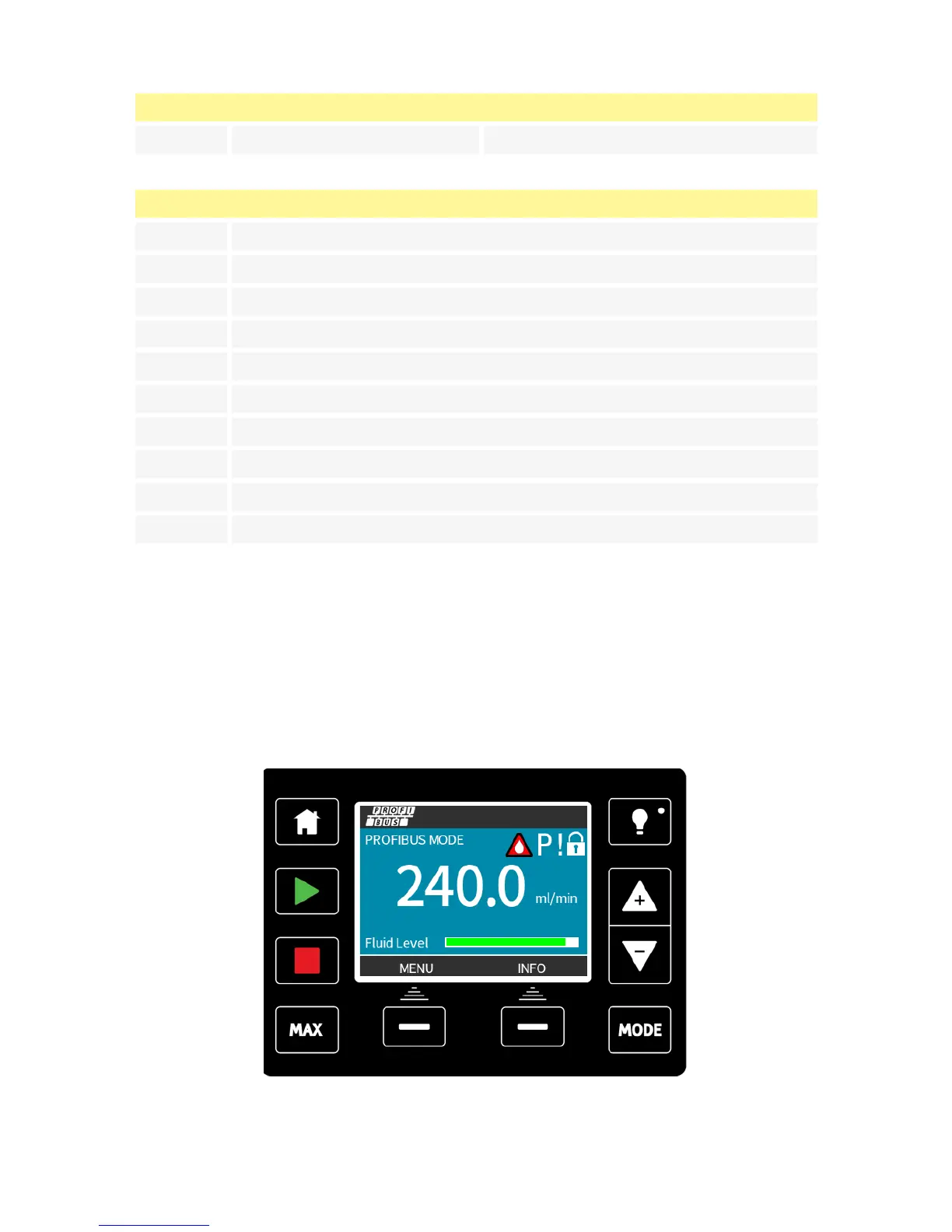

If bit 6 of the control word is enabled, the following run screen will be displayed.
m-qdos-en-02 60
