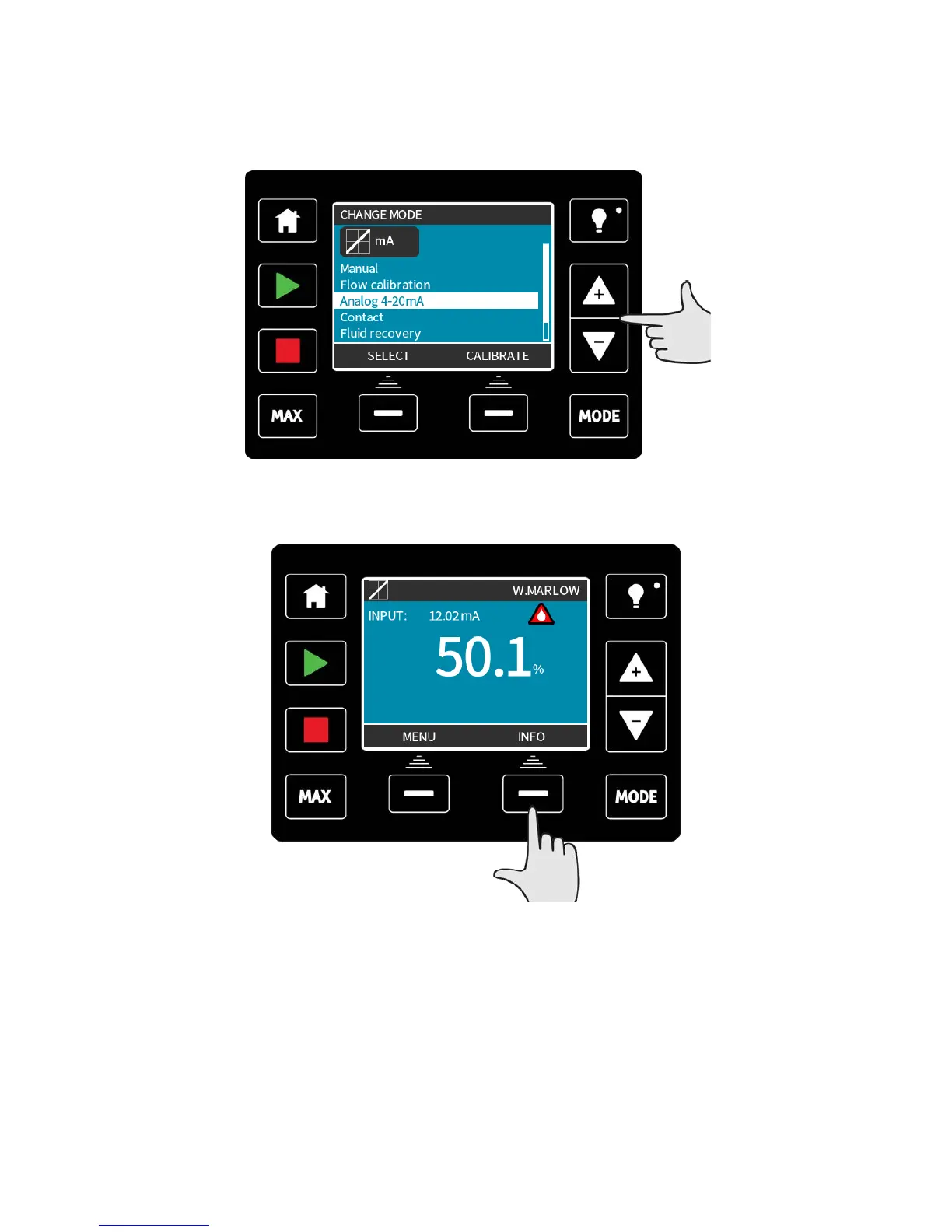

To select Analog 4-20mA mode:

l Select MODE.

l Using the +/- keys, scroll to Analog 4-20mA and press SELECT.

The current signal being received by the pump is displayed, for information only, on the

HOME screen.

Pressing the INFO function key will display further information.
