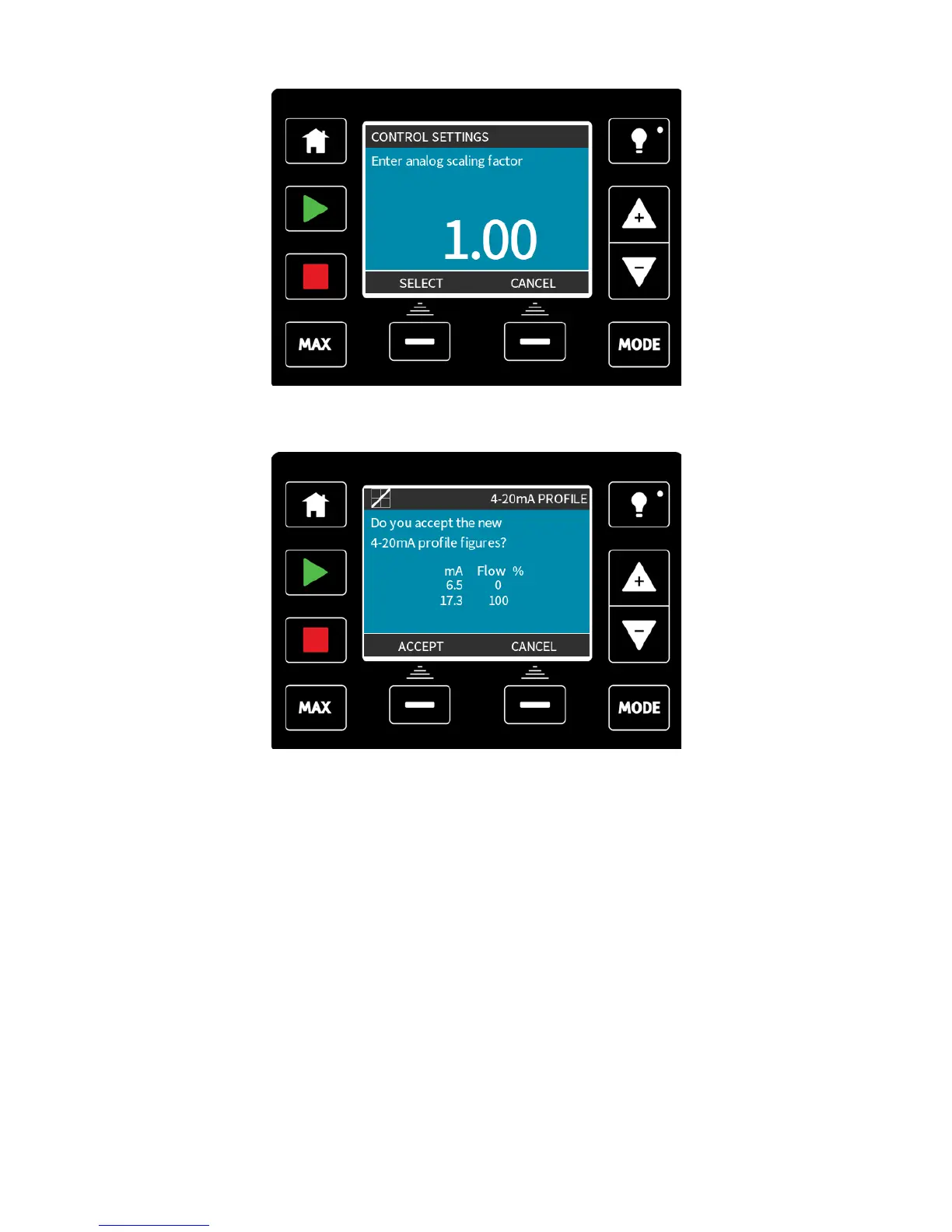

Press SELECT once you have chosen the required factor.

Press ACCEPT to confirm the new 4-20mA PROFILE figures. This will not alter the stored A

and B points, the multiplication factor will re- scale the 4- 20mA profile. To re- set the

original flow rates re-set the multiplication factor to 1.00.

m-qdos-en-02 70
