Webasto thermo top evo

Ident. No.: 1324052C_EN Status: 06.10.2016 © Webasto Thermo & Comfort SE
47
Audi A1

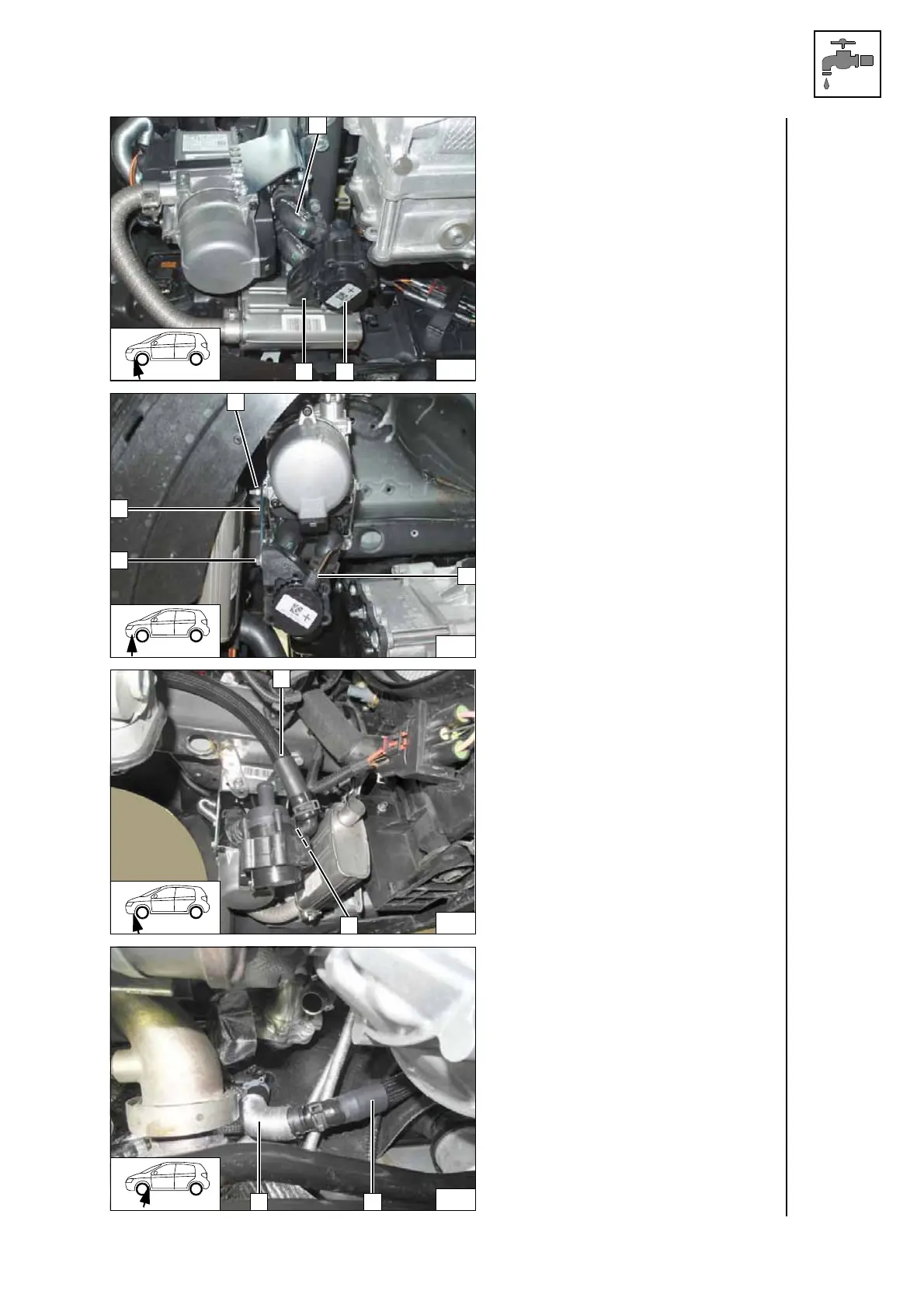

1 Circulating pump
2 Circulating pump mount
Connecting
circulating
pump
1 Flanged nut on stud bolt of heater
2 Wiring harness of circulating pump
3 M6x25 bolt, flanged nut
4 Perforated bracket C
Installing
circulating
pump
Routing
hose D and
installing on
C
1
Heat exchanger inlet hose section
Connecting
heat ex-
changer in-
let
145
B
12
146
1
3
4
2
147
D
C
148
1 D
