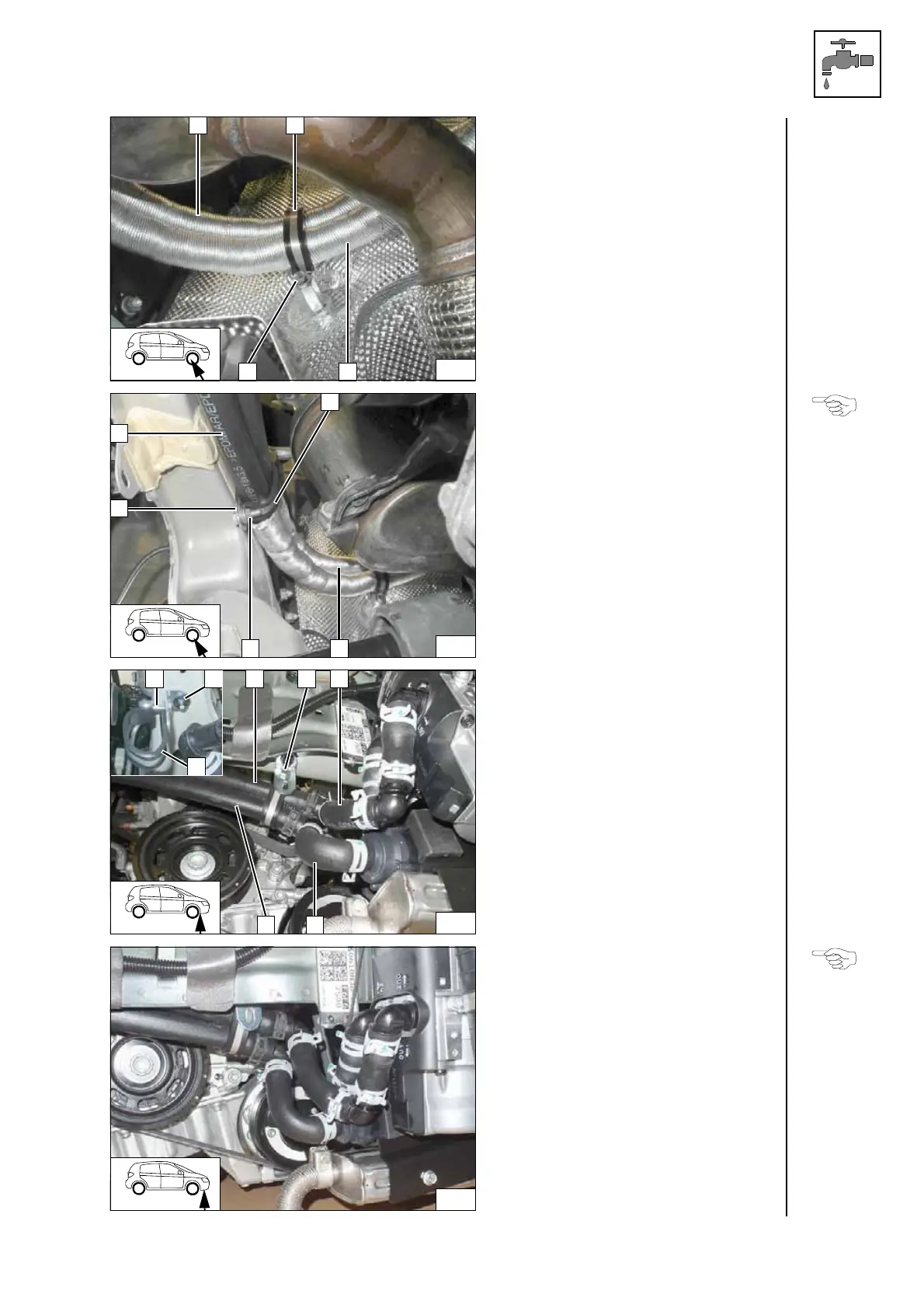

VW Golf VII / Golf VII Sportsvan / Passat and Skoda Superb
1 48 mm dia. rubber-coated p-clamp
2 M6x20 bolt, spring lockwasher
Fastening on
firewall
Align hoses. Ensure sufficient distance to
catalytic converter, correct if necessary.
1 38 mm dia. rubber-coated p-clamp
2 M6x20 bolt, flanged nut
3 Perforated bracket
Routing on
frame side
member
1
Loosely mount M6x20 bolt
2 Original vehicle stud bolt, angle
bracket, plastic nut
3 38 mm dia. rubber-coated p-clamp
4 Tighten bolt
Connecting
heater
Align hoses and spring clips as shown.
Ensure sufficient distance from neighbour-
ing components, correct if necessary.
Aligning
hoses and
spring clips
