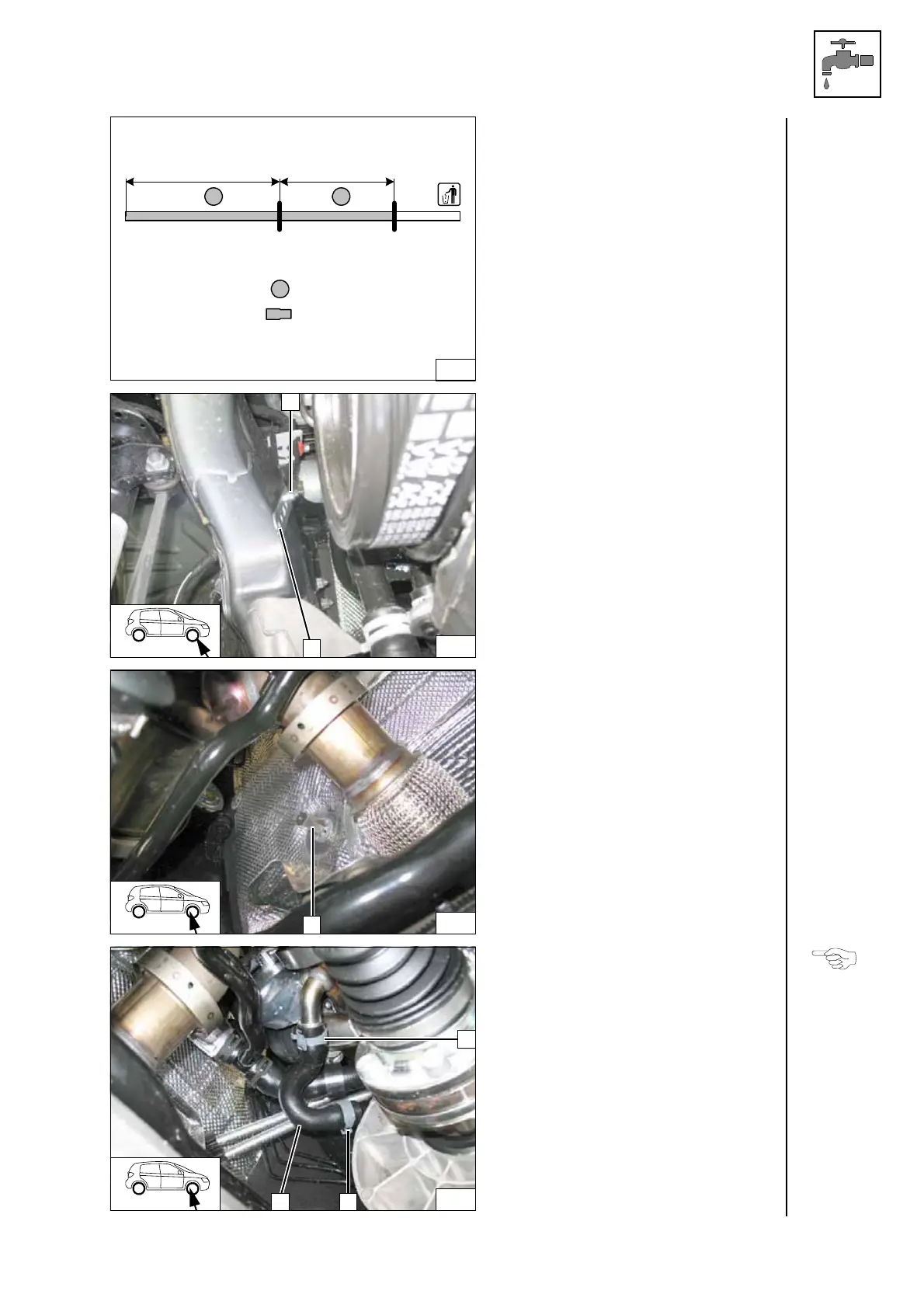

VW Golf VII / Golf VII Sportsvan / Passat and Skoda Superb
A = 18x20mm dia.
B =1020
G =980
Cutting
hoses to
length
1
M6 flanged nut, original vehicle stud
bolt
2 Perforated bracket
Installing
perforated
bracket
1
M6x30 spacer nut, original vehicle
stud bolt
Installing
spacer nut
Remove hose from engine outlet / EGR in-
let
2. Spring clips 1 will be reused.
Cutting
point
