Webasto thermo top evo

Ident. No.: 1325133C_EN Status: 09.06.2017 © Webasto Thermo & Comfort SE
48
VW Golf VII / Golf VII Sportsvan / Passat and Skoda Superb

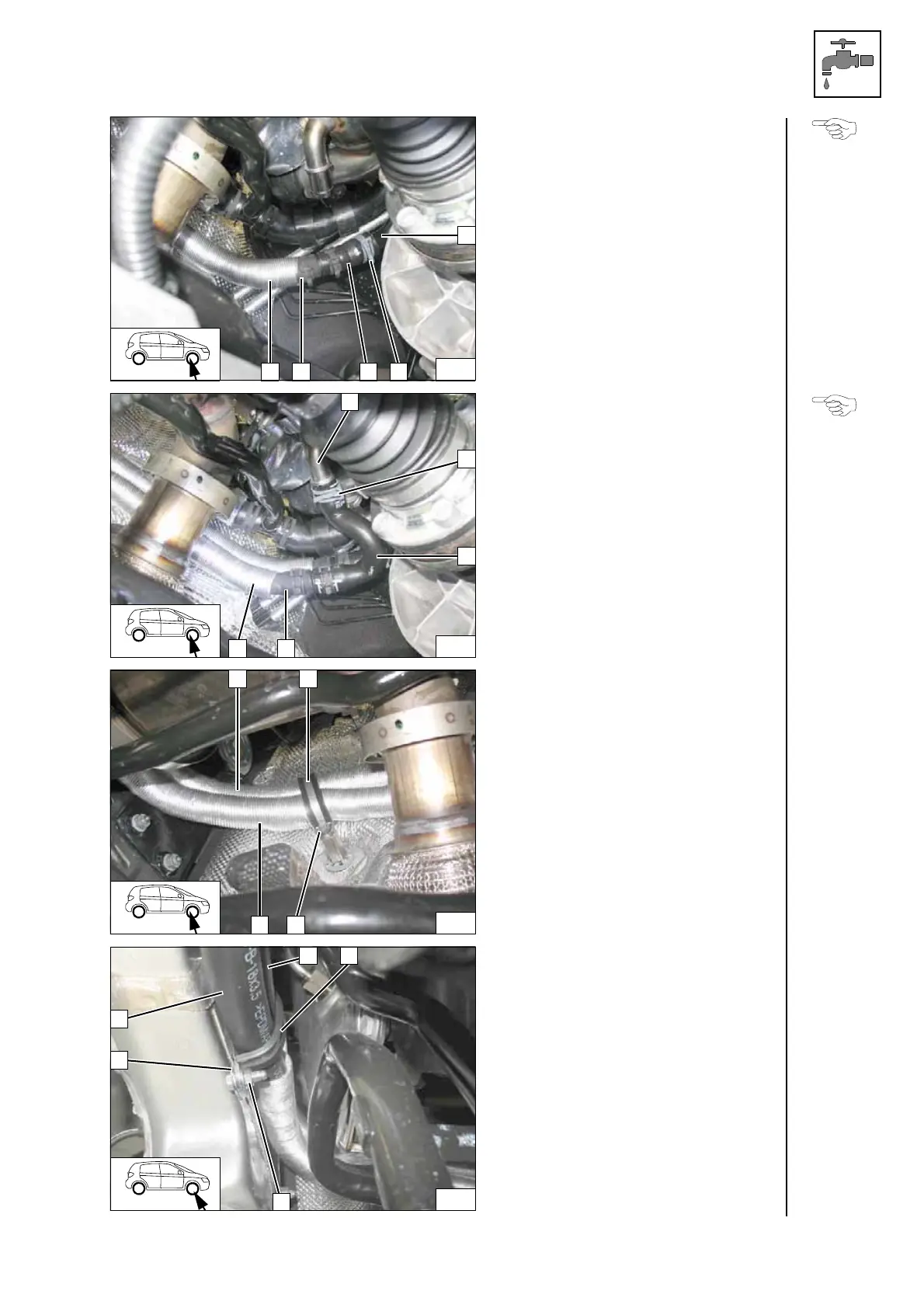

Slide 600mm long heat protection hose 3
onto hose
B.
1 Pipe of engine outlet
2 Original vehicle spring clip
Connect-
ing engine
outlet
Slide 600mm long heat protection hose 4
onto hose
B.
1 Pipe of EGR
2 Original vehicle spring clip
3 Original vehicle hose
Connect-
ing heat ex-
changer
inlet
1
48 mm dia. rubber-coated p-clamp
2 M6x20 bolt, spring lockwasher
Fastening on
firewall
1
38 mm dia. rubber-coated p-clamp
2 M6x20 bolt, flanged nut
3 Perforated bracket
Routing on
frame side
member
138
2
1
3 B A
139
1
G
2
4
3
1
140
2
B
G
141
G
B
2
1
3
