VW Golf VII / Golf VII Sportsvan / Passat and Skoda Superb

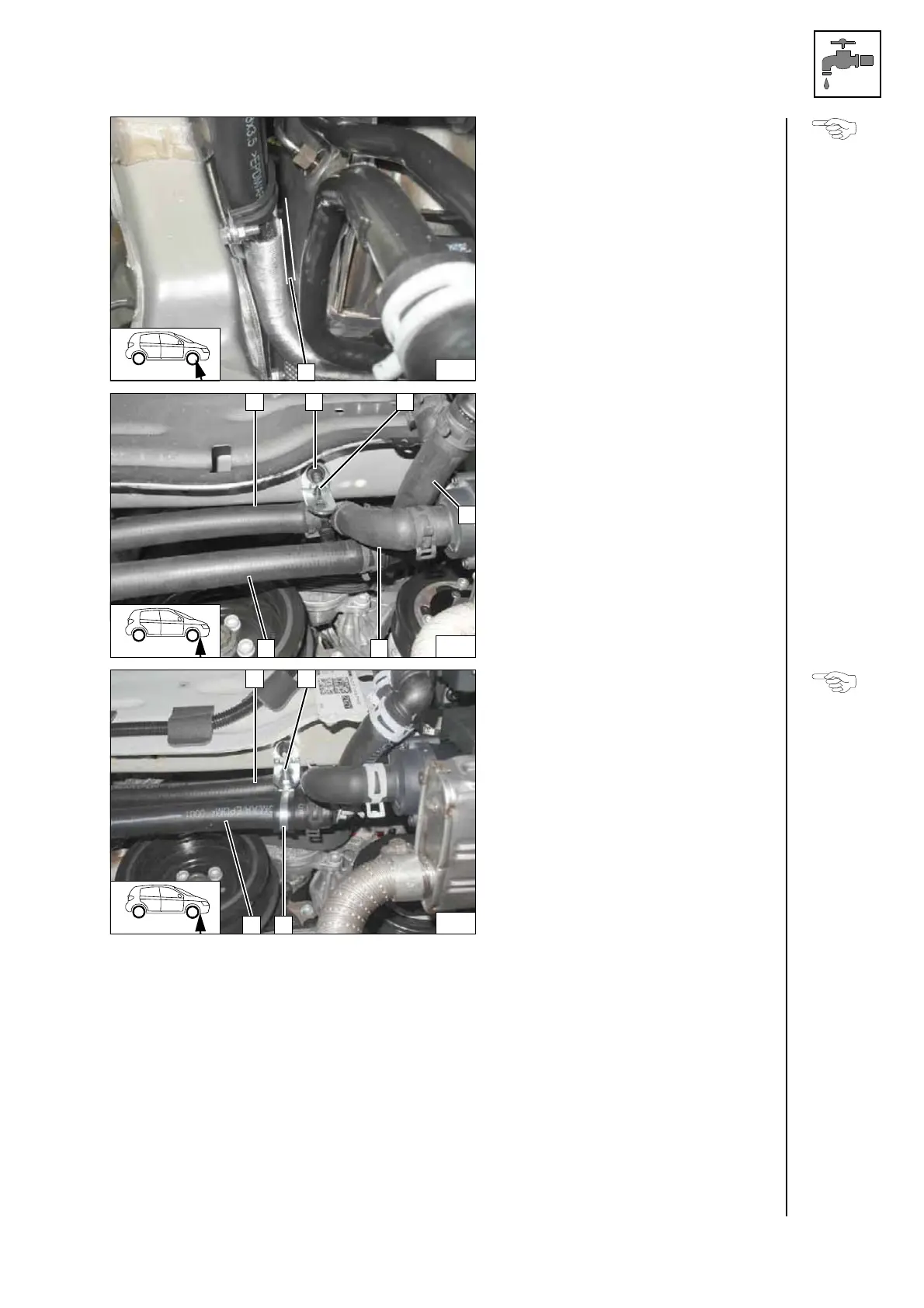

Align hoses. Ensure sufficient distance to
catalytic converter at position
1, correct if
necessary.
Routing in
engine
compart-
ment
1
Original vehicle stud bolt, angle
bracket, plastic nut
2 Clip-type cable tie around hose A
Connecting
heater
Align hoses and spring clips as shown.
Ensure sufficient distance from neighbour-
ing components, correct if necessary.
1 M6x20 bolt
2 38 mm dia. rubber-coated p-clamp
Connecting
heater
142
1
143
BF
4
A 2
E
144
2
1
A
F
