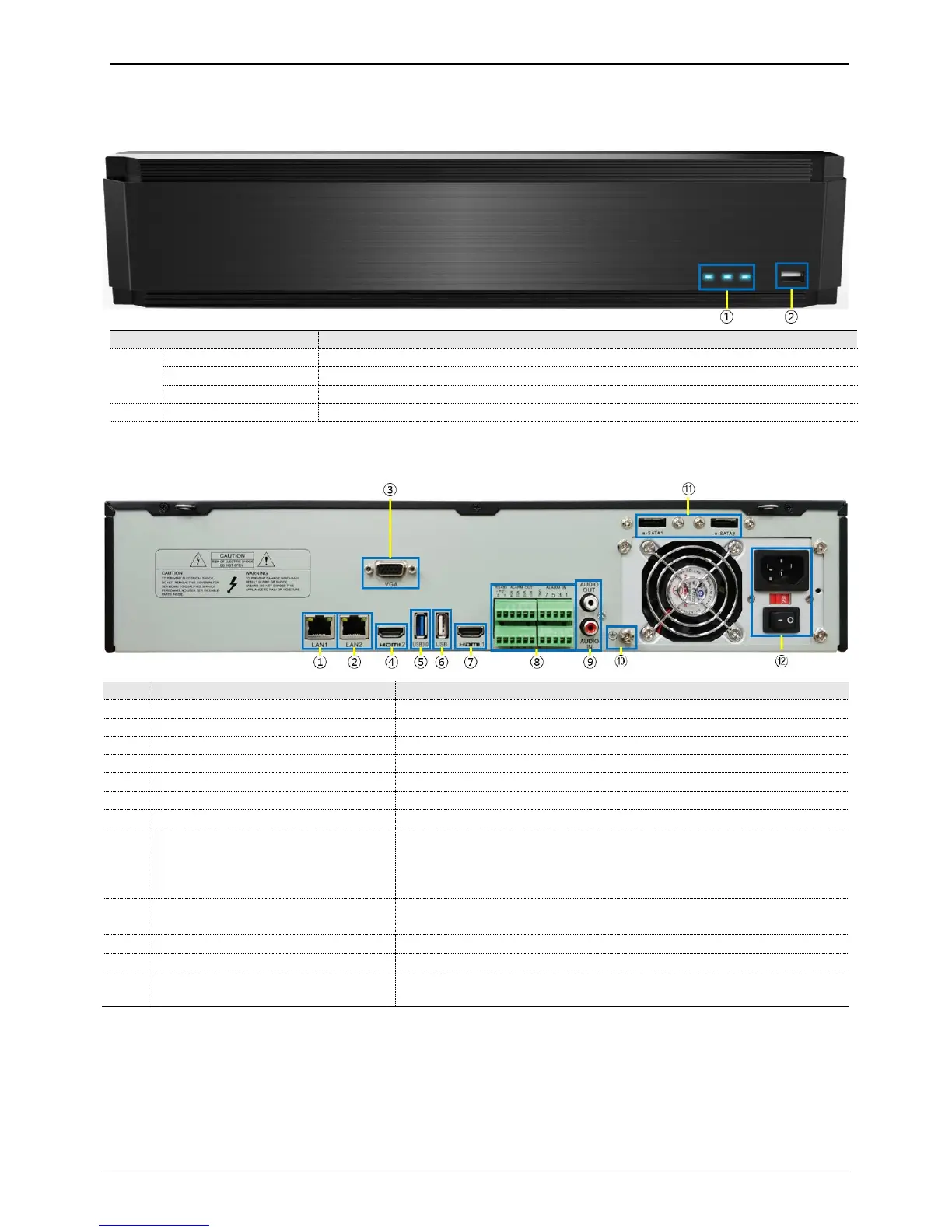

64 CHANNEL NVR
Front view
part name
function description
1
REC
Shows record status and it turns on while recording
NET
Shows network connection status and it turns on if network is connected
PWR
It turns on when power is ON
2
USB port
USB port for USB memory or mouse.
Rear view
No.
part name
function description
1
LAN1
Network connection terminal (RJ-45) for ‘IP address 1’
2
LAN2
Network connection terminal (RJ-45) for ‘IP address 2’
3
VGA
Video output port for VGA monitor
4
HDMI2
Video output port for sub (HDMI) monitor
5
USB3.0
USB port for USB memory, mouse, etc. It supports upto USB 3.0.
6
USB port
USB port for USB memory or mouse.
7
HDMI1
Video output port for main (HDMI) monitor
8
RS485 / ALARM OUT / ALARM IN
RS485 K/B: RS485 communication port. WKC-200 keyboard can be available.
RS485 P/Z: not available
ALARM OUT: Relay connection port
ALARM IN: External sensor input port
9
AUDIO IN/AUDIO OUT
AUDIO IN : Audio input connection terminal
AUDIO OUT : Speaker output terminal
10
Ground Connection
Connection terminals that connects NVR to an outside device
11
e-SATA1 / e-SATA2
e-SATA ports for external SATA storage devices
12
Power Input
AC100V~AC240V power cord socket. If power cord is not connected to an
grounded outlet, it may cause damage or malfunction of the product.
