64 CHANNEL HOT SWAP NVR

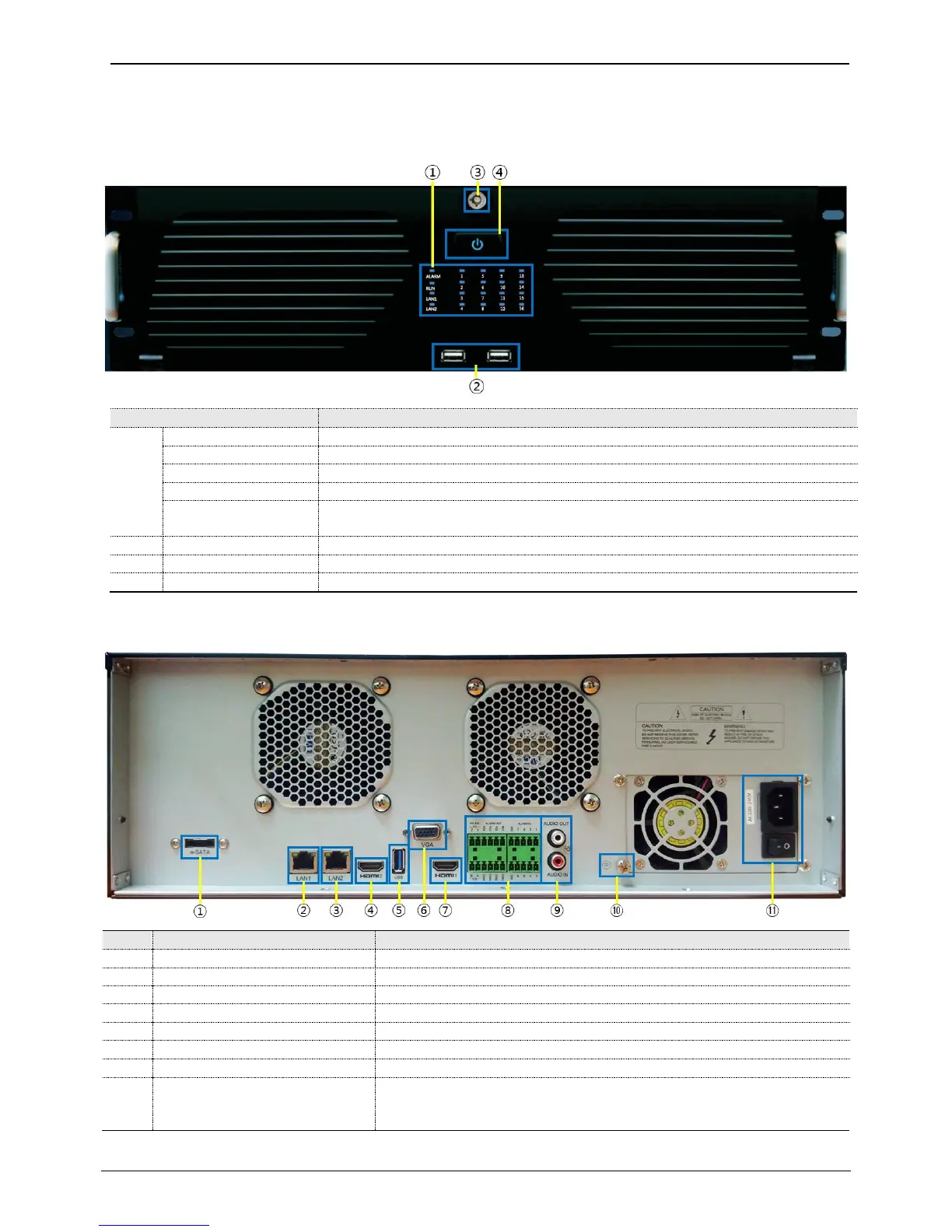

Front view
part name
function description
1
ALARM
Shows event status and it turns on if event is occurred
RUN
It turns on when power is ON
LAN1
Shows network connection status of LAN1 and it turns on if network is connected
LAN2
Shows network connection status of LAN2 and it turns on if network is connected
1~16
Shows HDD status.
I turns on if that HDD is connected and it flickers if that HDD is in use (read or write)
2
USB port
USB port for USB memory or mouse.
3
Front lock
Front lock for HDD exchange. User should unlock to exchange HDD.
4
Power button
Power button
Rear view
No.
part name
function description
1
e-SATA
e-SATA ports for external SATA storage devices
2
LAN1
Network connection terminal (RJ-45) for ‘IP address 1’
3
LAN2
Network connection terminal (RJ-45) for ‘IP address 2’
4
HDMI2
Video output port for sub (HDMI) monitor
5
USB 3.0
USB port for USB memory, mouse, etc. It supports upto USB 3.0.
6
VGA
Video output port for VGA monitor
7
HDMI1
Video output port for main (HDMI) monitor
8
RS485 / ALARM OUT / ALARM IN
RS485 K/B: RS485 communication port. WKC-200 keyboard can be available.
RS485 P/Z: not available
ALARM OUT: Relay connection port
