18 l Automatic Voltage Regulator – AVR-A-OPT-06
7 IDENTIFICATION TAG
Model:
Power Input
Operating Frequency
Excitation Voltage
Excitation Current
Sensing Voltage

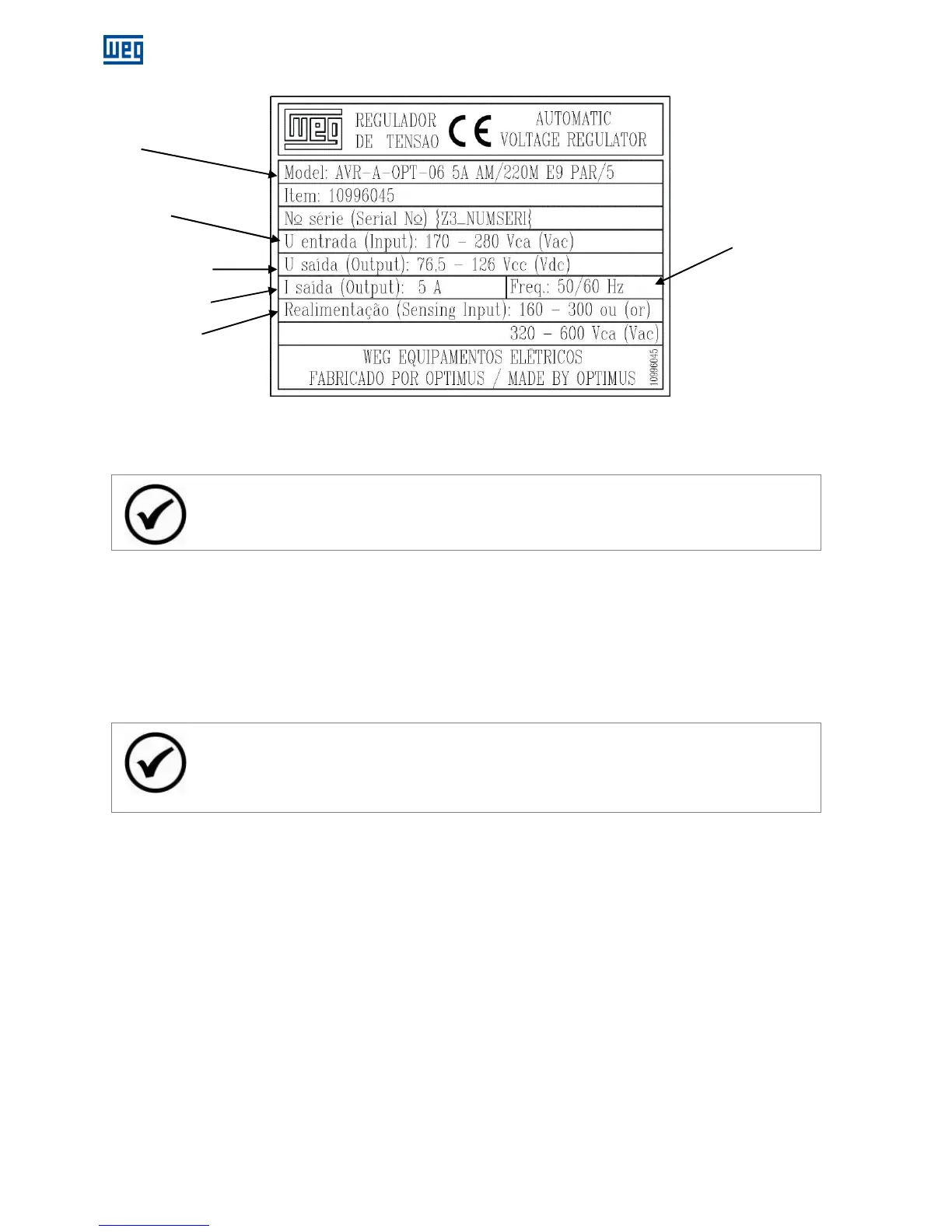

Figure 7.1: Identification tag
The above example shows the main characteristics described in the nameplate/ID tag that needs to be checked before installation.
NOTE
1.
The ID tag is affixed on the backside of the regulator, and to the Installation Guide.
8 TRIMPOT FUNCTIONS
Vad: Voltage adjustments. Turning clockwise increases voltage;
Stb: Stability adjustments. Turning clockwise slows down stability response
U/F: U/F limiter. Turning clockwise increases the U/F range, counterclockwise it diminishes;
Drp: Droop adjustments. Turning clockwise increases the reactive compensation range;
NOTE
* A potentiometer for fine adjustments of voltage (5k/3W) can be connected on terminals.
* The U/F and Stb trimpots were preseted and sealed, but if adjustments are required, They can be
performed according to the procedures described in this manual.
