WEG CFW08 Vector inverter User Manual

124
CFW-08 OPTIONS AND ACCESSORIES
To install the RS-232 communication kit on the PC, proceed as follows:
- Remove the parallel keypad (HMI-CFW08-P) from the inverter.
- Install the serial communication module RS-232 (KCS-CFW08) in the
place of the keypad.
- Install the software “SUPERDRIVE” in the PC.
- Connect the inverter to the PC through the cable.
- Follow the instruction given by the “SUPERDRIVE”.
8.11 KMD-CFW08-M1
This device must be used when the installation of the inverter on 35mm
rail, according to DIN EN 50.022, is desired
Only available for the models: 1.6-2.6-4.0-7.0A/ 200-240V and
1.0-1.6-2.6-4.0A/380-480V

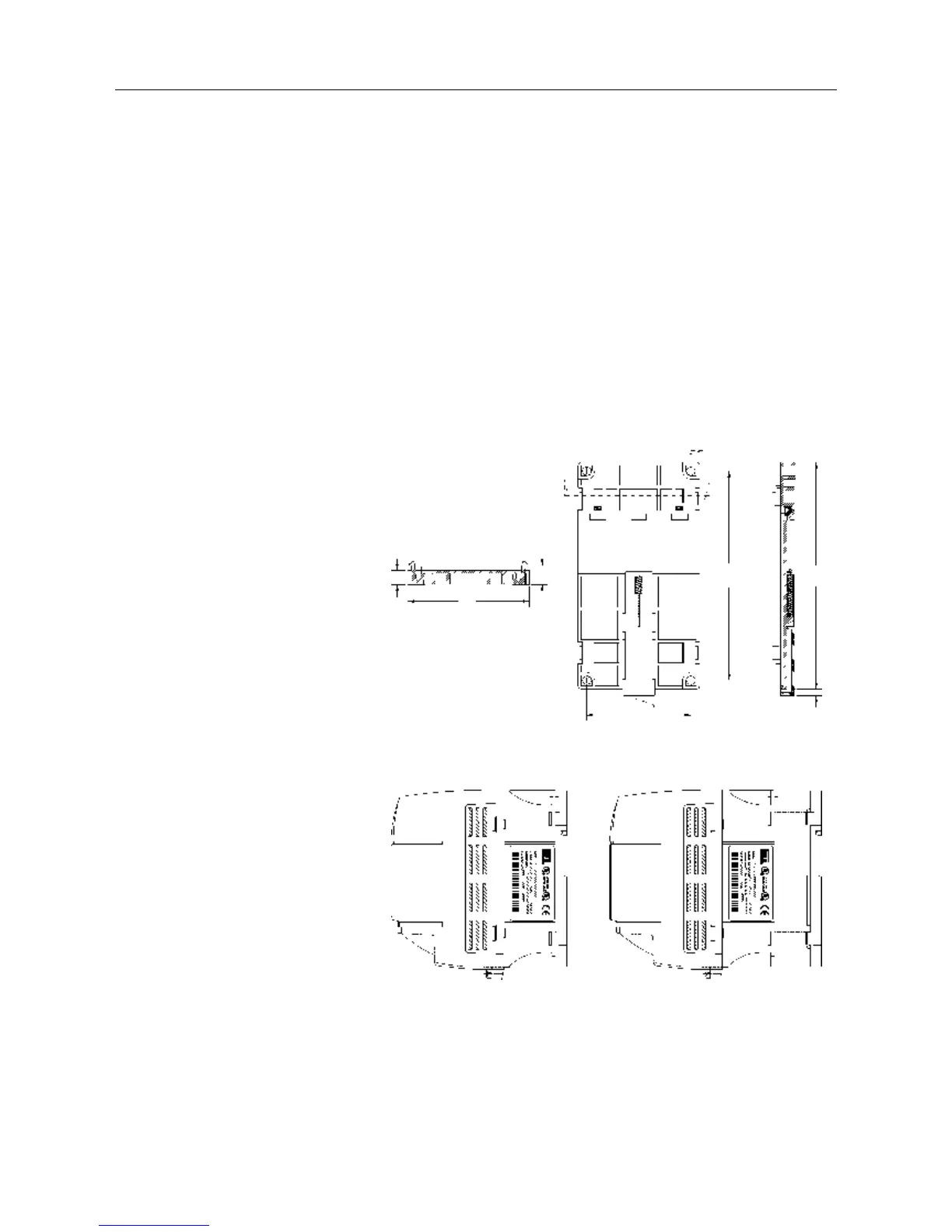

Figure 8.15 - Inverter with DIN rail kit (KMD-CFW-08-M1)
Section A-A
Front View
Section B-
12
75
129 140
4
64
B
B
A'A
9

WEG CFW08 Vector inverter Specifications

General

Frequency Range	0 to 300 Hz
Overload Capacity	150% for 60 seconds
Protection Degree	IP20
Communication	RS485, Modbus RTU
Voltage	200 V to 240 V
Control Mode	Vector Control
Ambient Temperature	-10°C to 50°C
Input Frequency	50 Hz / 60 Hz
Output Voltage	0 to input voltage
Braking	Dynamic braking resistor (optional)
Protection Features	Overcurrent, overvoltage, undervoltage, overtemperature
Operating Temperature	-10°C to 50°C
Cooling Method	Forced air cooling (fan)
Humidity	5% to 90% non-condensing
