WEG CFW08 Vector inverter User Manual

117
CFW-08 OPTIONS AND ACCESSORIES
1. Unlock the keypad by using a screwdriver as shown above.
2. Remove the keypad by pulling on the lateral sides.
(b) Removing

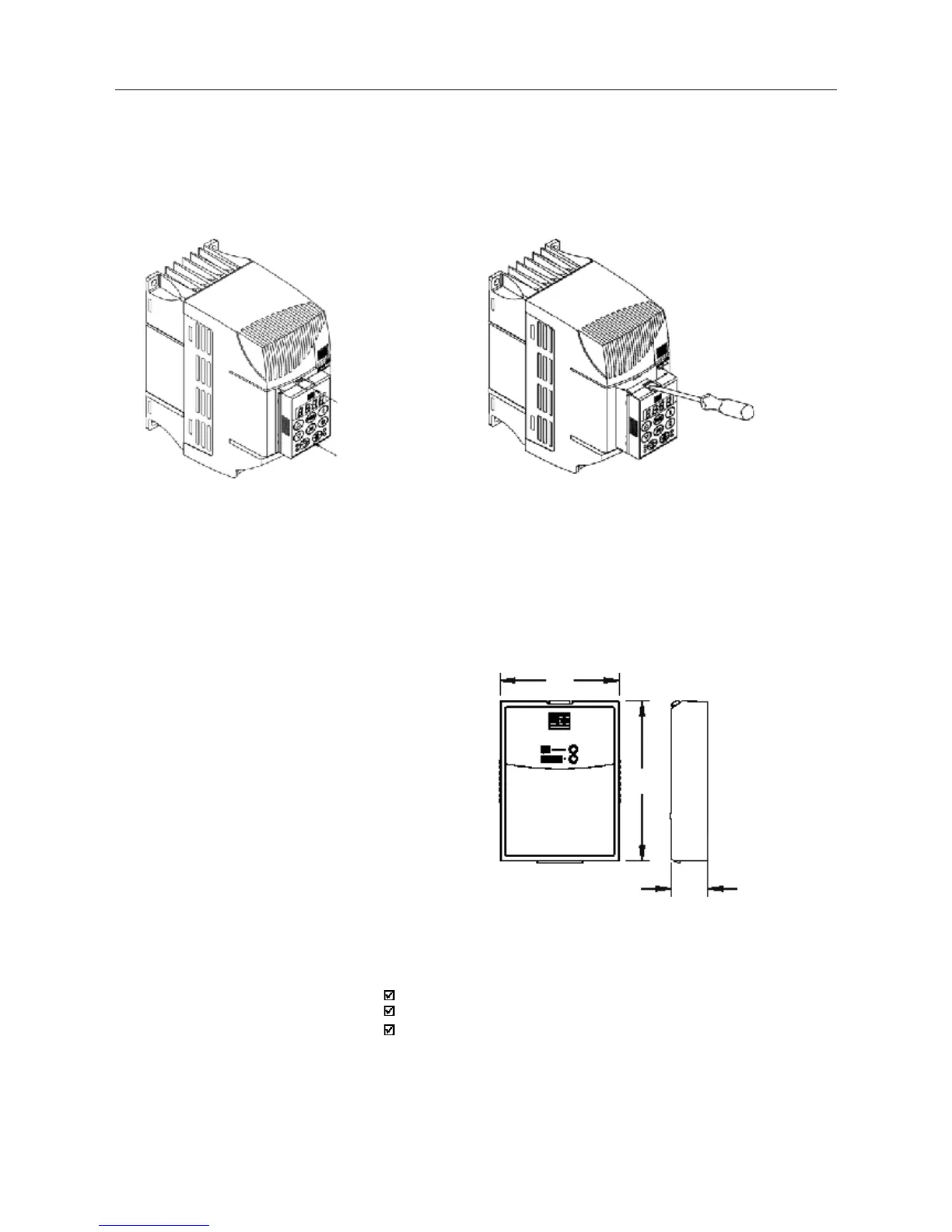

Figure 8.2 - Instructions for HMI-CFW-08-P insertion and removing
8.2 TCL-CFW08
Dummy panel to be inserted in the place of the parallel keypad (HMI-
CFW08-P).
Figure 8.3 - Dimensions of the dummy panel TCL-CFW08 for the parallel HMI
43
57
13
1. Place the keypad as shown above.
2. Press it.
(a) Insertion
8.1.1 Instruction for Insertion
and Removing of the
HMI-CFW08-P
8.3 HMI-CFW08-RP
External parallel keypad: this keypad is mounted externally to the
inverter and can be used in the following cases:
Applications that require a remote keypad (up to 10m / 394in);
Instalation of a keypad directly on the panel door (0,12in);
For a better visualization on the display and to facilitale the key
operation, when compared with the parallel keypad (HMI-CFW08-P).
The external parallel keypad (HMI-CFW08-RP) must be used with the
MIP-CFW08-RP interface and CAB-RP-X cable.

WEG CFW08 Vector inverter Specifications

General

Frequency Range	0 to 300 Hz
Overload Capacity	150% for 60 seconds
Protection Degree	IP20
Communication	RS485, Modbus RTU
Voltage	200 V to 240 V
Control Mode	Vector Control
Ambient Temperature	-10°C to 50°C
Input Frequency	50 Hz / 60 Hz
Output Voltage	0 to input voltage
Braking	Dynamic braking resistor (optional)
Protection Features	Overcurrent, overvoltage, undervoltage, overtemperature
Operating Temperature	-10°C to 50°C
Cooling Method	Forced air cooling (fan)
Humidity	5% to 90% non-condensing
