5
DETAILED PARAMETER DESCRIPTION

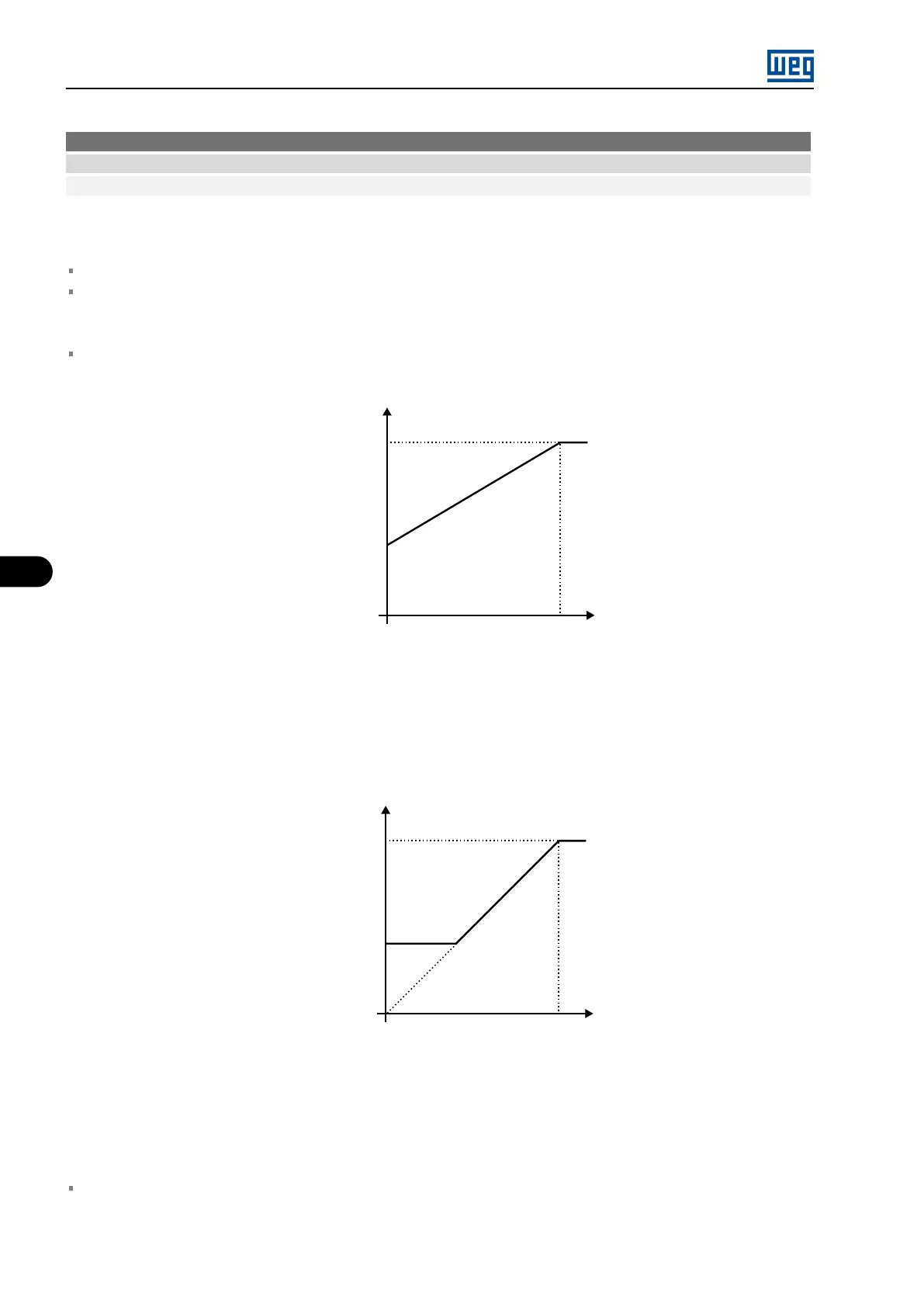

P0233 - Dead Zone
Adjustable range: 0 to 1 Factory setting: 1
Acesso: Menu → Configurations → I/O → Analog inputs
Description:
It defines if the Dead Zone in the Analog Inputs is 0 = Inactive or 1 = Active
If P0233 = 0 (Inactive), the signal in the Analog Inputs acts on the Speed Reference from the minimum point:
– (0 to 10) V/(0 to 20) mA/(4 to 20) mA:0 V/0 mA/4 mA.
– (10 to 0) V/(20 to 0) mA/(20 to 4) mA:10 V/20 mA/20 mA.
If P0233 = 1 (Active), the signal in the Analog Inputs has a dead zone, where the Speed Reference remains at
the value of the Minimum Value (P0133), even with the variation of the input signal.
0 ..................................... 10 V
0 .................................... 20 mA
4 mA ................................. 20 mA
10 V ...................................... 0
20 mA ................................... 0
20 mA ................................ 4 mA
P0134
P0133
AIx Signal
a) Dead zone inactive
P0233 = 0
Reference
Figure 5.27: Analog input dead zone inactive
0 ..................................... 10 V
0 .................................... 20 mA
4 mA ................................. 20 mA
10 V ...................................... 0
20 mA ................................... 0
20 mA ................................ 4 mA
P0134
P0133
AIx Signal
b) Dead zone active
P0233 = 1
Reference
Figure 5.28: Analog input dead zone active
If the analog input AI2 or AI4 is programmed for (-10 to +10) V (P0246 = 4), curves identical to those of the
Figure 5.28 on page 5-44, only when AI2 or AI4 is negative will the direction of rotation be inverted.
MVW3000 | 5-44
