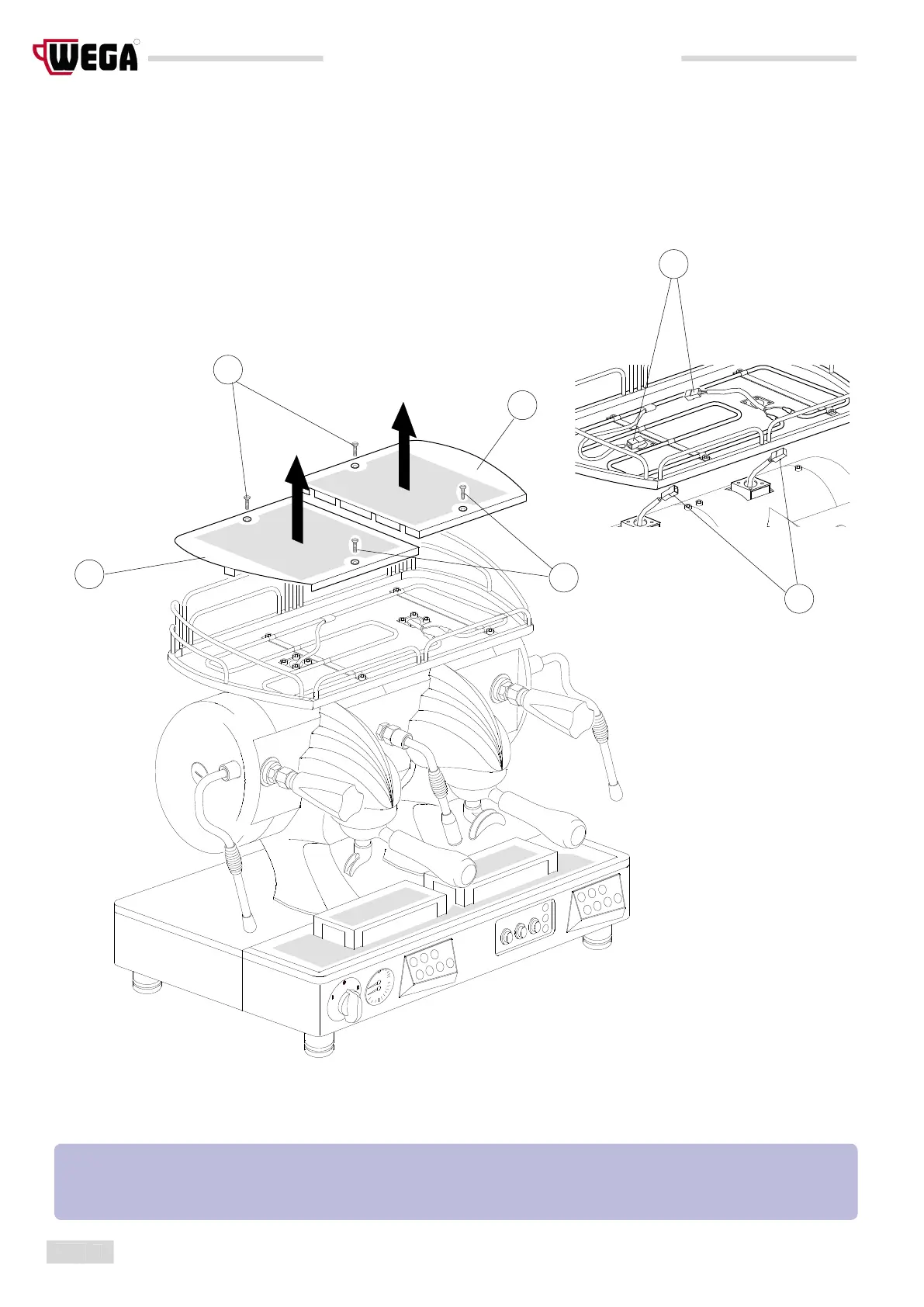

1.5 REPLACEMENT of the HEATING ELEMENT of the CUP HEATER
1) Loosen the fastening screws located on the cup holder grille (A)
2) Remove the cup holder grilles (B)
3) To remove the heating element it is first necessary to disconnect the electrical connectors (C) for the heating element and temperature probe which are
located in the cup heater compartment
4) After working on the heating element, put the grilles (B) back in place and tighten the screws (A)
WARNING
Any work on the machine must be performed with the machine disconnected from the electrical and hydraulic mains and
with the boiler cold.
A
A
B
B
C
C
