Wega Atlas User Manual

espresso coffee machine - electrical diagrams
ELE
24
R
English

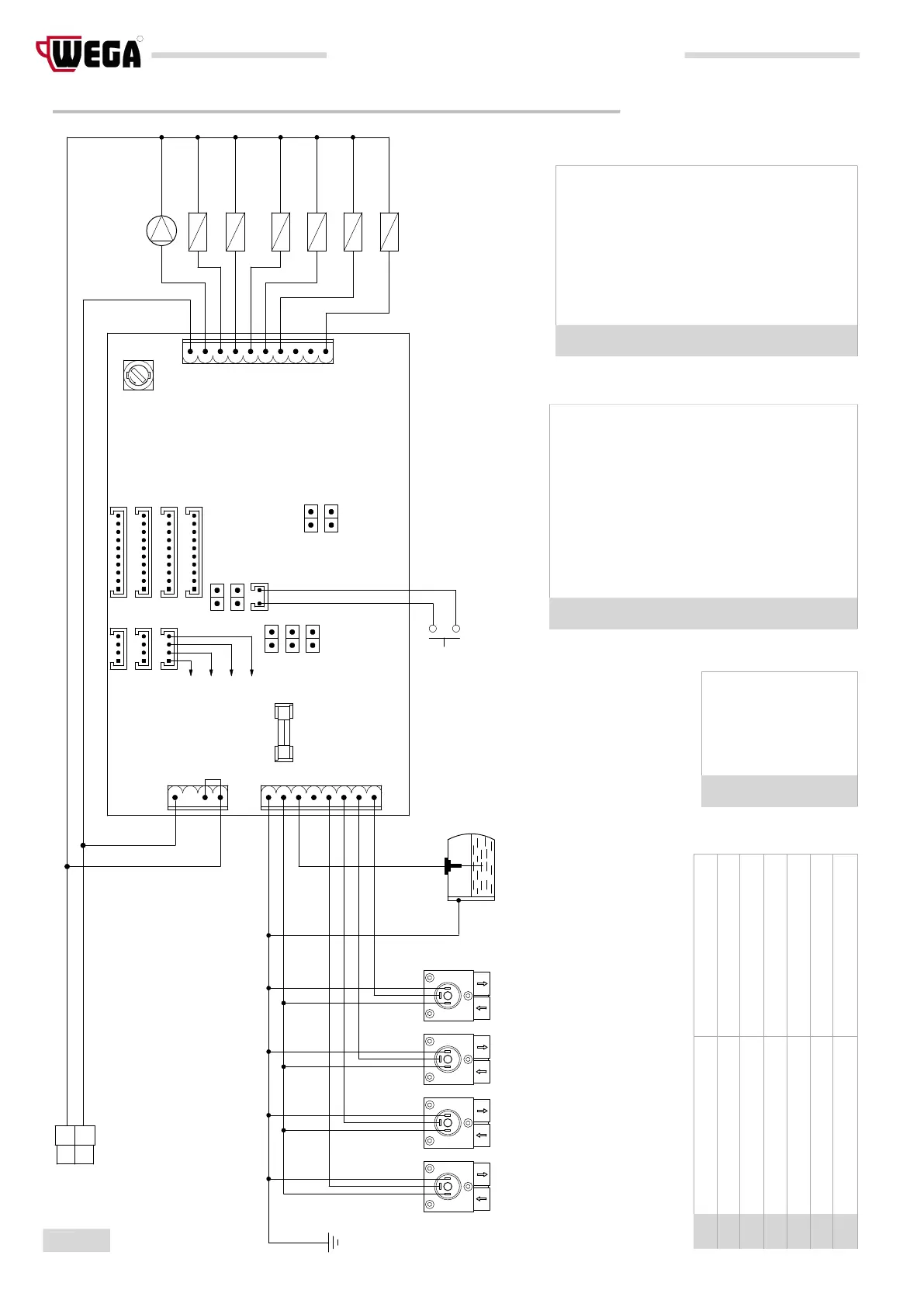

6.22 Electrical diagram code WY18090012-13-14-15 *SPHERA*
EV1 EVT EV4 EVC EV3 MP EV2
P10
CT
P11
P9
P2 P1 P3 P4
P5 P6 P7
F2
JP4 JP6
JP7 JP3
JP5 JP2 JP1
F4
VAL TXD RXD GND
RO BI
JP8
PLT
CV1
+
-
O O
CV3CV2
+
O
-
+
-
CV4
+
O
-
GV
NE BL NE MA MA MA MA
RO BL VE VE VE VE VE VE
SL
CAL
CAL Boiler CT Power supply connector CV1
Volumetric counter
GR1
CV2
Volumetric counter
GR2
CV3
Volumetric counter
GR3
CV4
Volumetric counter
GR4
EV1
Solenoid valve
GR1
EV2
Solenoid valve
GR2
EV3
Solenoid valve
GR3
EV4
Solenoid valve
GR4
EVC
Boiler filling solenoid valve
EVT
Tea solenoid valve
F2 Inlets fuse (500mA) F4 Motor pump fuse (6.3A)
JP5 Connection tea dose
MP Pump PLT Tea dose P1 Push button connector GR1 P2 Push button connector GR2 P3 Push button connector GR3 P4 Push button connector GR4 P5 Tea dose P6 Not managed P7 Serial transmission connector P9 Service outputs connector P10 Low voltage power supply P11 Power supply connector SL Level probe
BI White BL Blue GV Yellow-green MA Brown NE Black RO Red VE Green
JP1 JP2 JP3 JP4 JP6 JP7 JP8
Count enabled
Pre-infusion enabled
Programming enabled
Boiler filling with pump
Tea filling with pump
STOP key disabled
Control d
Count disabled
Pre-infusion disabled
Programming disabled
Boiler filling without pump
Tea filling without pump
STOP key enabled
Interface I/O
JUMPER INSERTED JUMPER NOT INSERTED
