espresso coffee machine - electrical diagrams
R
ELE
13
English

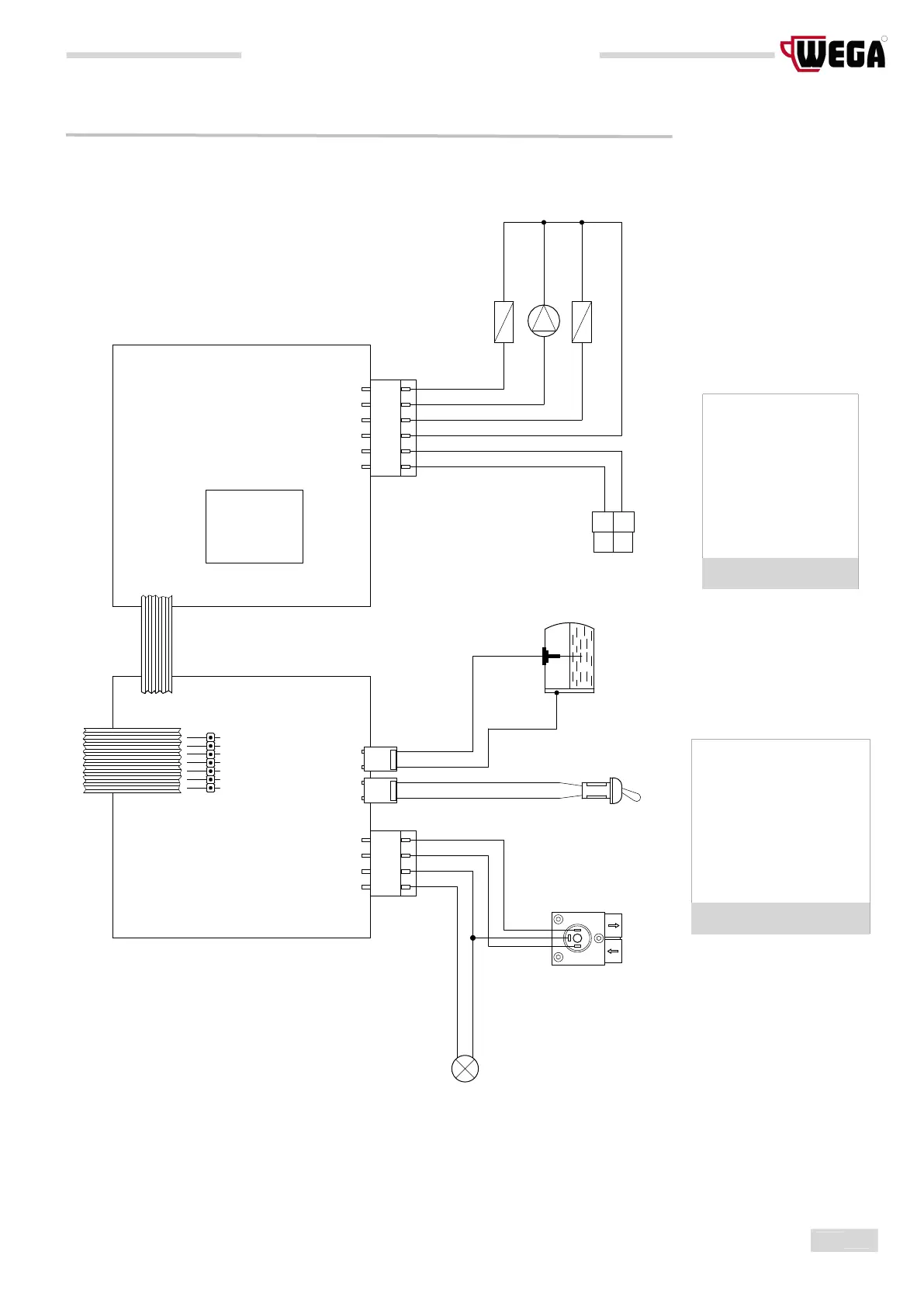

6.04 Electrical diagram code WY18362-WY18363-WY18365-WY18366
CV
+
O
-
TR
CN2 CN3 CN4
CM
CN1
SPIA
CT
IP
SL
CAL
EVE
MP
EVC
CAL Boiler
CM Membrane connection
CN1
Power supply and services outputs
CN2 Dosing device output
CN3 Programming switch
CN4 Boiler level
CT Power supply connector
CV Volumetric counter
EVC Filling solenoid valve
EVE Delivery solenoid valve
IP Programming switch
MP Pump
SL Level probe
SPIA On indicator light
TR Transformer
