Wega Atlas User Manual

SMC
4
English
espresso coffee machine -
machine diagrams
R
1 VENUS machine

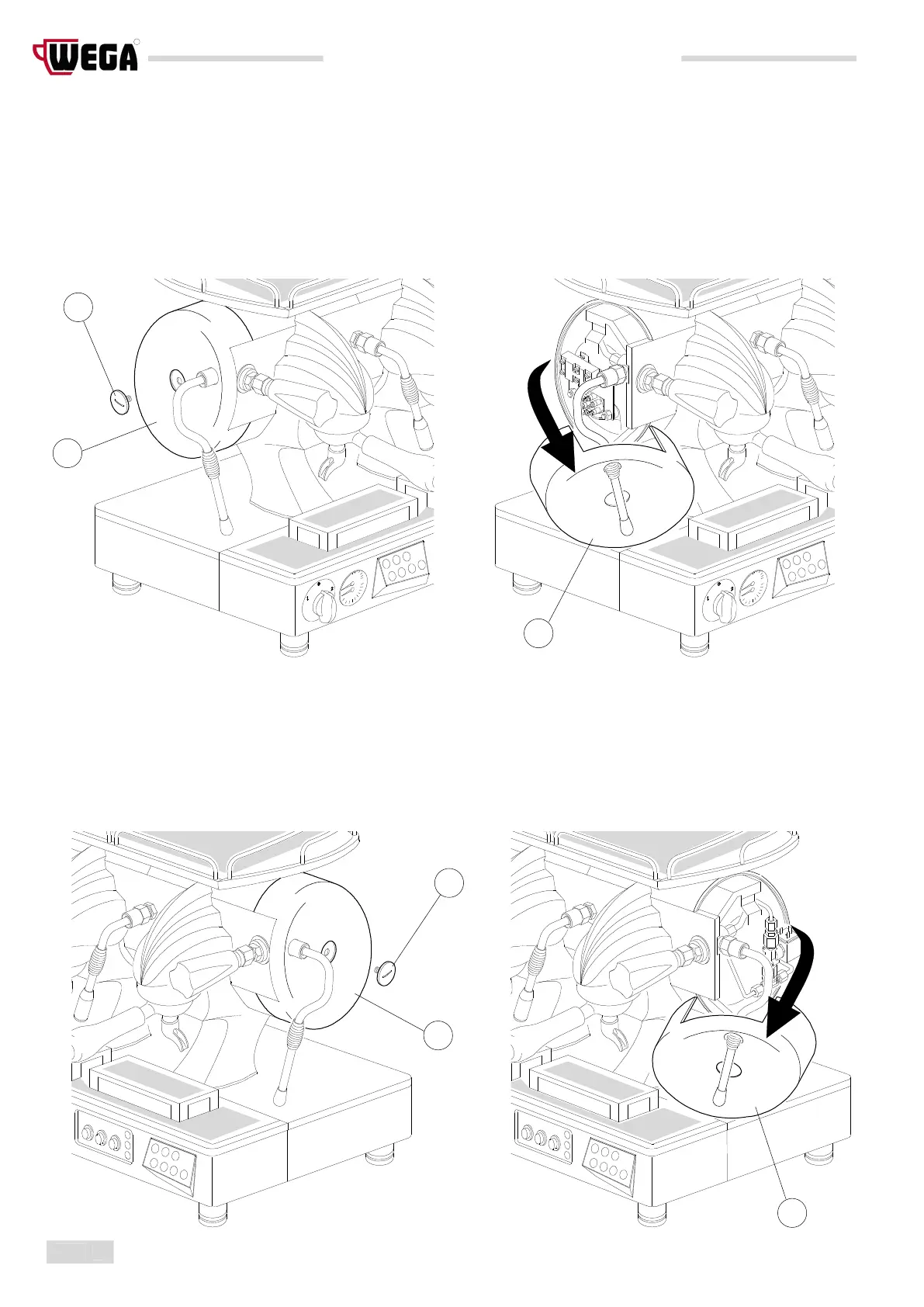

1.1 REPLACEMENT of the HEATING ELEMENT or of the HEATING ELEMENT PROTECTION
1) Completely loosen the screw (A) located on the left-hand side of the body (B)
2) Remove the left hand side of the body (B) following the profile of the steam nozzle
3) After working on the heating element or heating element protection, put the body panel (B) back in place and tighten the screw (A)
1.2 REPLACEMENT of the HOT WATER SOLENOID VALVE
1) Completely loosen the screw (A) located on the right-hand side of the body (B)
2) Remove the right-hand side of the body (B) following the profile of the steam nozzle
3) After working on the solenoid valve, put the body panel (B) back in place and tighten the screw (A)
A
B
B
A
B
B
