Wega Atlas User Manual

espresso coffee machine - electrical diagrams
ELE
10
R
English

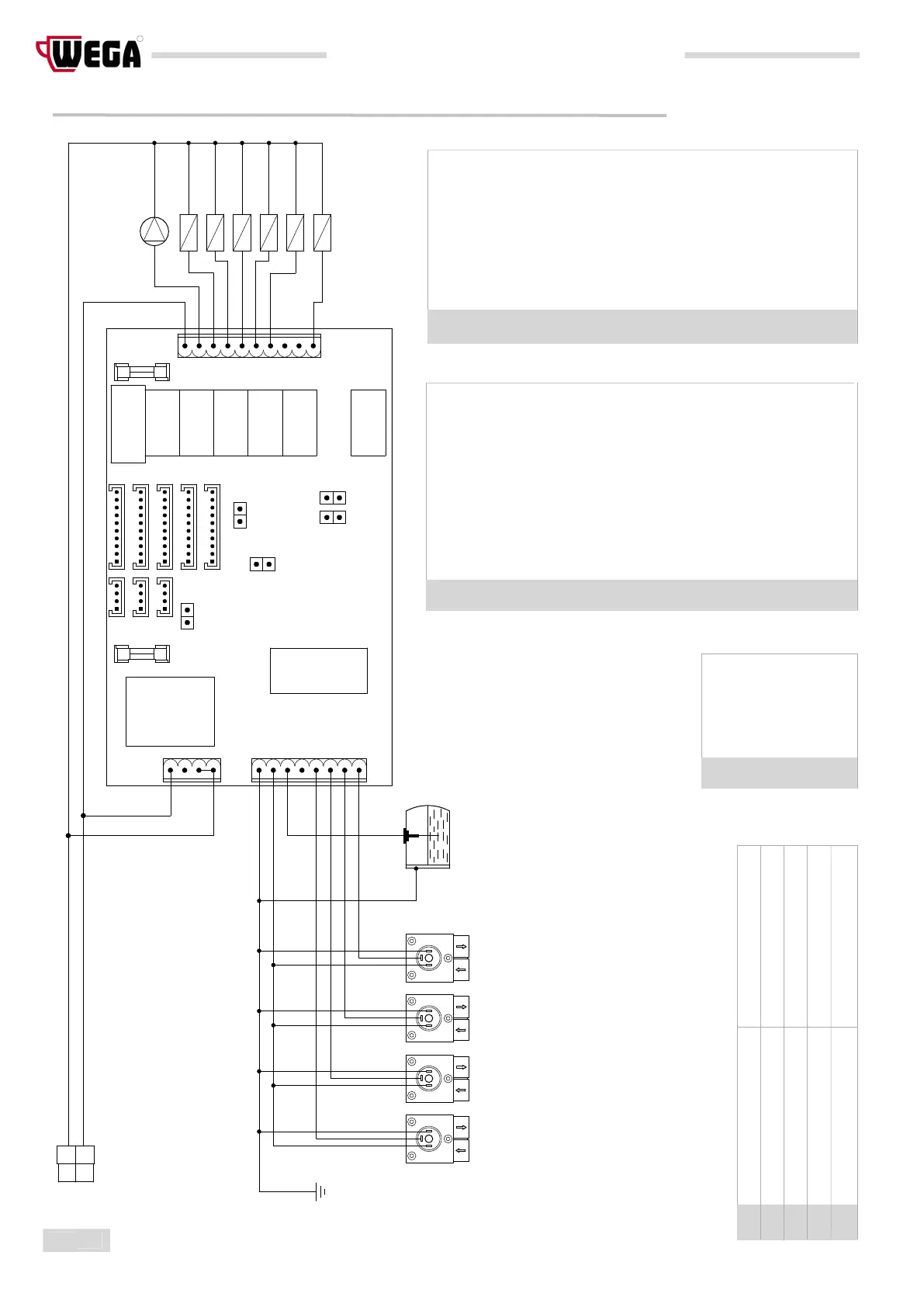

6.01 Electrical diagram code WY18077-WY18078-WY18079 *GIEMME*
P10
P11
P9
F1
JP2
JP1
JP4
JP6
F2
JP3
TRF1
RL1 RL2 RL3 RL4 RL5 RL6 RL8
P1
P2 P3 P4
P6 P5 P8
IC2
P7
EV1 EVT EV4 EVC EV3 EV2 MP
-
CV1
+
O
-
+
CV2 CV3
O
-
+
O
CV4
+
O
-
CT
RO BI
NE BL NE MA MA MA MA
GV
RO BL VE VE VE VE VE VE
SL
CAL
CAL Boiler CT Power supply connector CV1 Volumetric counter GR1 CV2 Volumetric counter GR2 CV3 Volumetric counter GR3 CV4 Volumetric counter GR4 EV1 Solenoid valve GR1 EV2 Solenoid valve GR2 EV3 Solenoid valve GR3 EV4 Solenoid valve GR4 EVC Boiler filling solenoid valve EVT Tea solenoid valve F1 Inlets fuse (500mA) F2 Motor pump fuse (6,3A) IC2 Eprom MP Pump P1 Push button panel connector GR1 P2 Push button panel connector GR2 P3 Push button panel connector GR3 P4 Push button panel connector GR4 P5 Tea dose
P6 Not managed P7 Serial connection P9 Service outputs connector P10 Low voltage power supply P11 Power supply RL1 Pump relay RL2 Solenoid valve relay GR2 RL3 Solenoid valve relay GR3 RL4 Boiler solenoid valve relay RL5 Solenoid valve relay GR4 RL6 Solenoid valve relay GR1 RL8 Tea solenoid valve relay SL Boiler level probe TRF1 Transformer BI White BL Blue GV Yellow-green MA Brown NE Black RO Red VE Green
JP1 JP2 JP3 JP4 JP6
Serial connection enabled
Pre-infusion enabled
Dose programming enabled
Boiler filling with pump
Tea delivery with pump
Serial connection disabled
Pre-infusion disabled
Dose programming disabled
Boiler filling without pump
Tea delivery without pump
JUMPER INSERTED JUMPER NOT INSERTED
BI White BL Blue GV Yellow-green MA Brown NE Black RO Red VE Green

Wega Atlas Specifications

General

Boiler Material	Copper
Water Level Indicator	Yes
Type	Espresso Machine
Material	Stainless Steel
Frequency	50/60 Hz
