Wega Atlas User Manual

espresso coffee machine - electrical diagrams
R
ELE
11
English

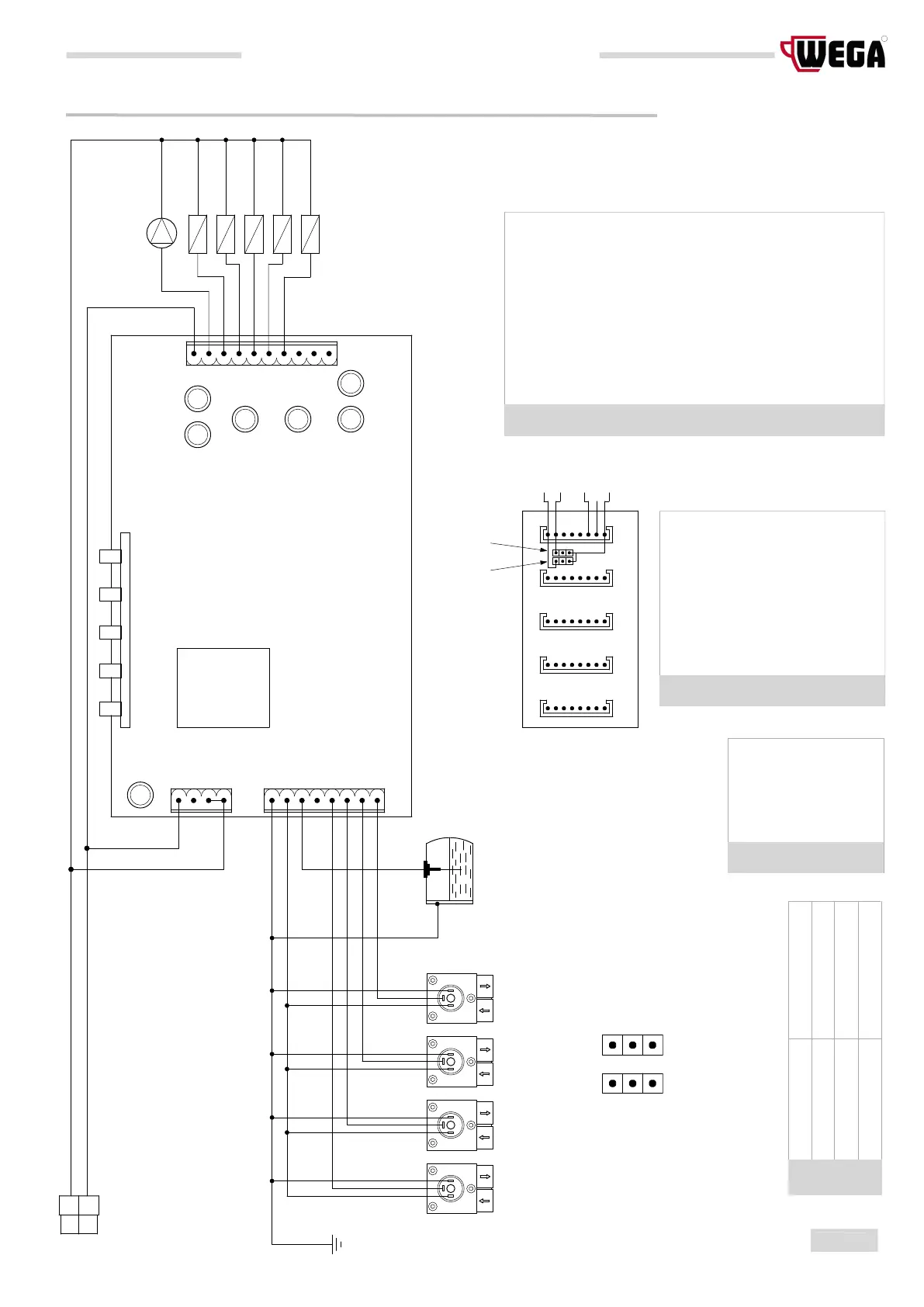

6.02 Electrical diagram code WY18077-WY18078-WY18079 *GICAR*
AN2 AN3
Jumper between 1 and 2 Jumper between 2 and 3 Jumper between 1 and 2 Jumper between 2 and 3
Pre-infusion OFF
Pre-infusion ON
Programming OFF
Programming ON
JUMPER ACTIVATION
CN2
CN1
CN3
TR
EV1 EV4 EVC EV3 EV2 MP
-
CV1
+
O
-
+
CV2 CV3
O
-
+
O
CV4
+
O
-
CT
F1
F2
F3 F4 F5 F6
CP1
CP2 CP3 CP4
AN3AN2
UPF
UPR
TXD RXD
GN
AN2 AN3
CAL
SL
NE BL NE MA MA MA MA
GV
RO BL VE VE VE VE VE
BI RO
CP5
CP5 CP4 CP3 CP2
CP1
F0
VER
VER
F0 Inlets fuse (0.125a) F1 Pump fuse (6.3A) F2 Solenoid valve fuse GR2 (1A) F3 Solenoid valve fuse GR3 (1A) F4 Boiler solenoid valve fuse (1A) F5 Solenoid valve fuse GR4 (1A) F6 Solenoid valve fuse GR1 (1A) CP1 Push button panel connector GR1 CP2 Push button panel connector GR2 CP3 Push button panel connector GR3 CP4 Push button panel connector GR4 CP5 Serial connector CN1 Service outputs connector CN2 Low voltage power supply CN3 Power supply connector SL Level probe TR Transformer UPF Pre-infusion output UPR Programming output VER Vertical printed circuit
CAL Boiler CT Power supply connector CV1 Volumetric counter GR1 CV2 Volumetric counter GR2 CV3 Volumetric counter GR3 CV4 Volumetric counter GR4 D Selection counter EV1 Solenoid valve GR1 EV2 Solenoid valve GR1 EV3 Solenoid valve GR1 EV4 Solenoid valve GR1 EVC Filling solenoid valve Boiler
BI White BL Blue GV Yellow-green MA Brown NE Black RO Red VE Green

Wega Atlas Specifications

General

Boiler Material	Copper
Water Level Indicator	Yes
Type	Espresso Machine
Material	Stainless Steel
Frequency	50/60 Hz
