Wega Atlas User Manual

espresso coffee machine - electrical diagrams
ELE
18
R
English

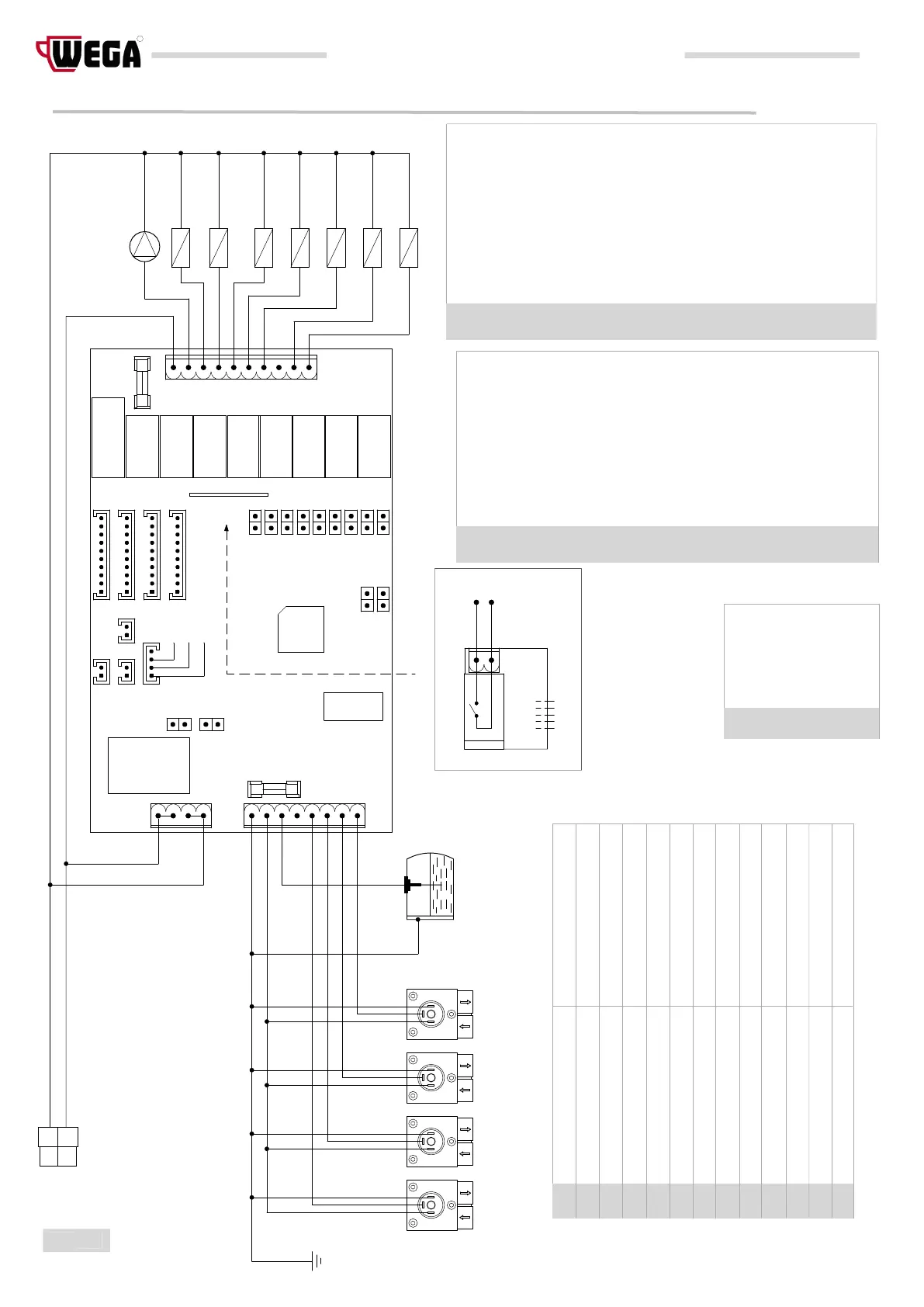

6.11 Electrical diagram code WY18090047-48 *POLARIS-VENUS* PLUS 1 rev.0
EV1 TLR EVC EV3 MP EV2
CT
RL9 RL6 RL4 RL3 RL2 RL1
F1
TRF2
JP5
JP3
CN5
JP6 JP4
F2
JP7
JP15 JP18
JP2 JP9
JP17
JP1 JP8
JP16
IC4
TXD RXD GND
CV3CV1
+
O
-
CV2
+
O
-
+
-
O
JP12 JP14
RL10
CN6
CV4
+
O
-
EV4
SL
CAL
CN1
CN2
CN14
CN10 CN11 CN12 CN13
CN6
CN7
CN4
BL MA MA MA MA NE NE
GV
RO BI
MA VE VE VE VE VE BL RO
EVT
VE
RL5 RL8 RL7
JP1 JP2 JP4 JP6 JP7 JP8 JP9
JP12 JP14 JP15 JP16 JP17 JP18
Serial transmission enabled
Pre-infusion enabled
Boiler filling with pump
Tea delivery with pump
STOP key continuation enabled
Not managed
Reset card software
Not managed Not managed Not managed
6-key dosing device enabled
Not managed Not managed
Serial transmission disabled
Pre-infusion disabled
Boiler filling without pump
Tea delivery without pump
STOP key continuation enabled
Not managed
-------
Not managed Not managed Not managed
6-key dosing device disabled
Not managed Not managed
JUMPER INSERTED JUMPER NOT INSERTED
CV1 Volumetric counter GR1 CV2 Volumetric counter GR2 CV3 Volumetric counter GR3 CV4 Volumetric counter GR4 EV1 Solenoid valve GR1 EV2 Solenoid valve GR1 EV3 Solenoid valve GR1 EV4 Solenoid valve GR1 EVC Boiler filling solenoid valve EVT Tea solenoid valve RL1 Tea solenoid valve relay RL2 Solenoid valve relay GR2 RL3 Solenoid valve relay GR3 RL4 Boiler solenoid valve relay RL5 Solenoid valve relay GR4 RL6 Solenoid valve relay GR1 RL7 On/off relay RL8 Boiler heating element relay RL9 Tea solenoid valve relay RL10 Cup heater heating element relay
BI White BL Blue GV Yellow-green MA Brown NE Black RO Red VE Green
CAL Boiler CT Power supply connector F1 Motor pump fuse (6.3A) F2 Inlets fuse (500mA) IC4 Microprocessor MP Pump SL Level probe TLR Remote switch TRF2 Transformer CN1 Power supply connector
CN2 Low voltage power supply
CN4 Serial transmission connector
CN5 Not managed
CN6
Vertical card cup heater heating element
CN7
Cup heater temperature probe connector
CN10 Push button panel connector GR1 CN11 Push button panel connector GR2
CN12 Push button panel connector GR3
CN13 Push button panel connector GR4
CN14 Service outputs connector
JP3 Programming
JP5 Tea dose

Wega Atlas Specifications

General

Boiler Material	Copper
Water Level Indicator	Yes
Type	Espresso Machine
Material	Stainless Steel
Frequency	50/60 Hz
