1.4 WORKING on the DELIVERY GROUP or ITS COMPONENTS

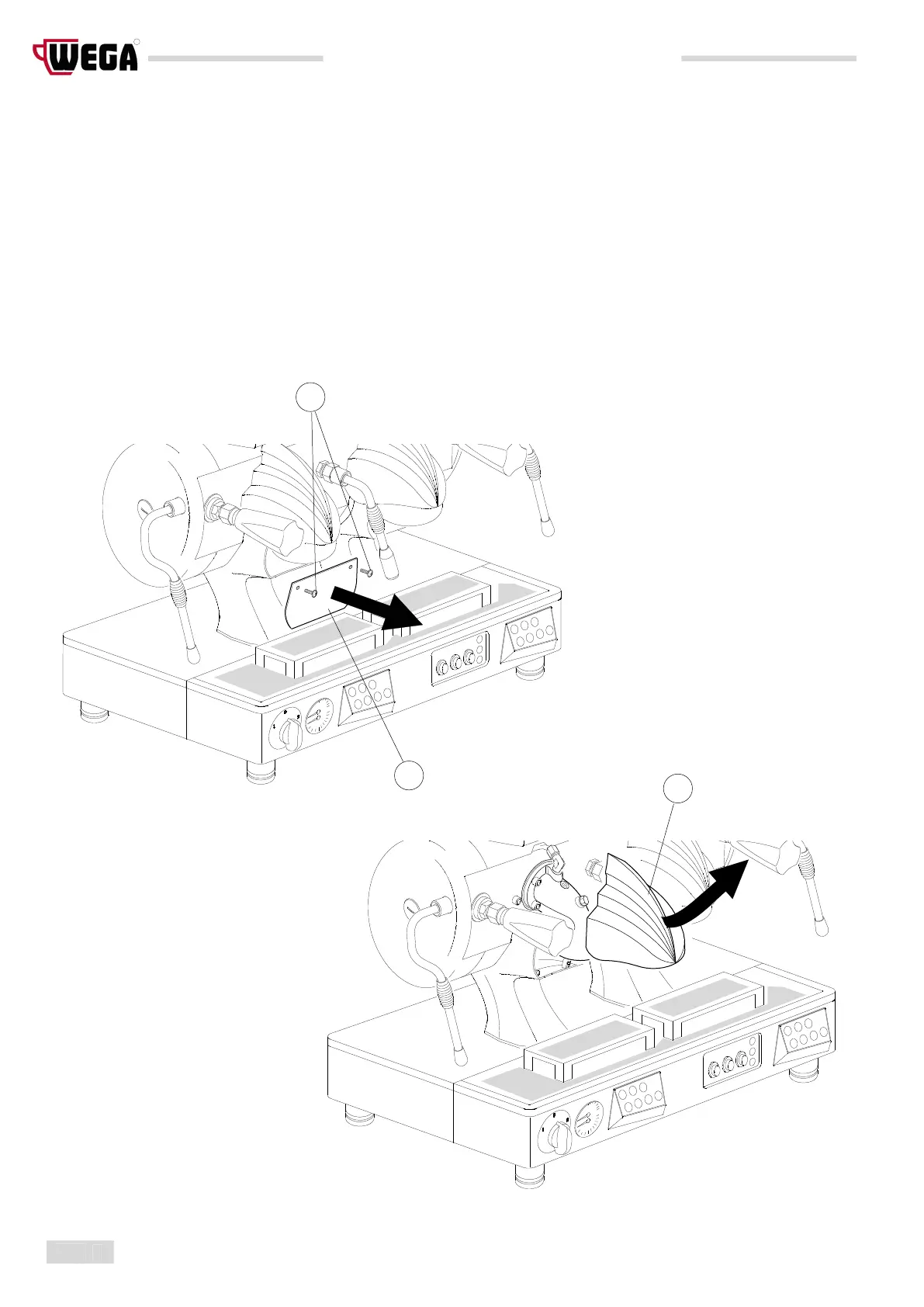

1) Use a 3 mm hex wrench to loosen the fastening screws (A) and remove the stainless steel plaque (B) located under the attachment ring of the delivery group
2) Remove the protection cap of the delivery group (C)
3) Loosen the screws (D) housed inside the holes
4) Remove the lower grilles and the drain tub (E)
5) Loosen the screws and remove the protection (F)
6) Loosen the screws (G) located on the base of the support covers of the boiler
7) Remove the front part of the support cover of the boiler by pulling it toward you (H)
8) After work is complete, put the body components back in place by following the procedure in reverse order
