Wega Atlas User Manual

English
SMC
5
espresso coffee machine -
machine diagrams
R

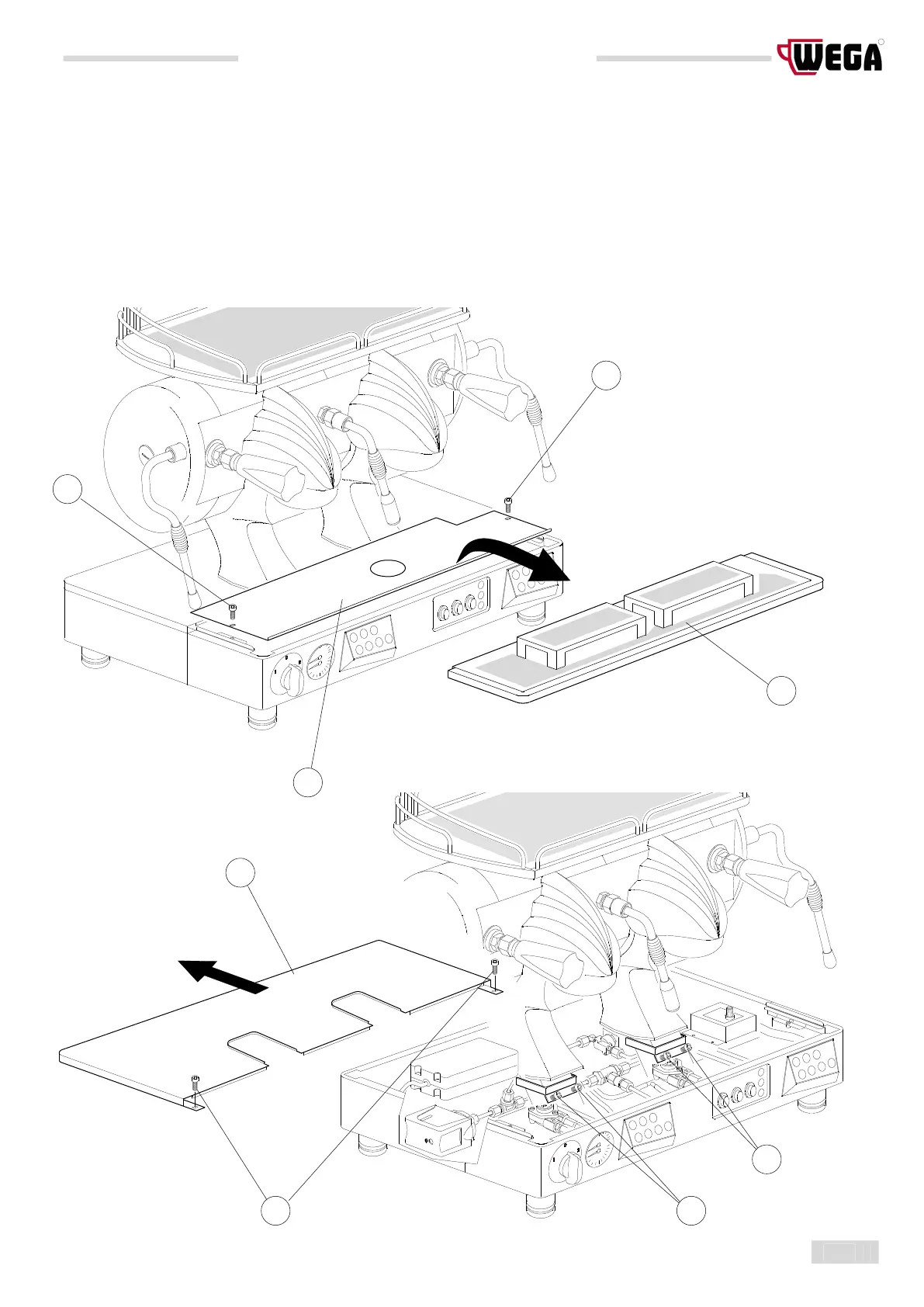

1.3 WORKING on the CONTROL UNIT, PRESSURE SWITCH, DOSING DEVICES, or CUP HEATER THERMOSTAT
1) Remove the lower grilles and the drain tub (A)
2) Loosen the screws (B) and remove the protection (C)
3) Loosen the screws (D) located on the base of the support covers of the boiler
4) Loosen the screws (E) and remove the rear cover of the base (F) by sliding it outwards
5) After work is complete, put the body components back in place by following the procedure in reverse order
B
A
B
C
D
D
F
E

Wega Atlas Specifications

General

Boiler Material	Copper
Water Level Indicator	Yes
Type	Espresso Machine
Material	Stainless Steel
Frequency	50/60 Hz
